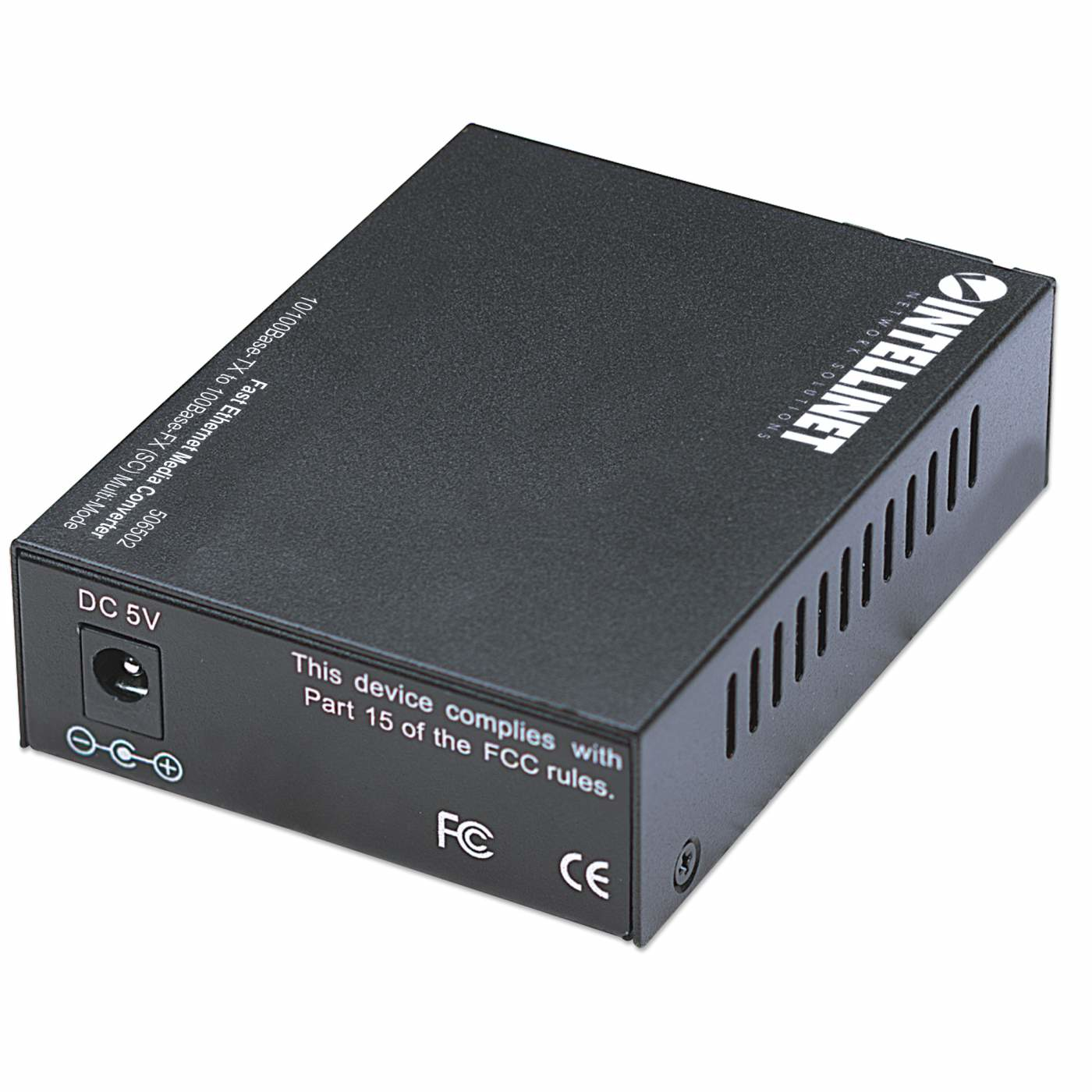

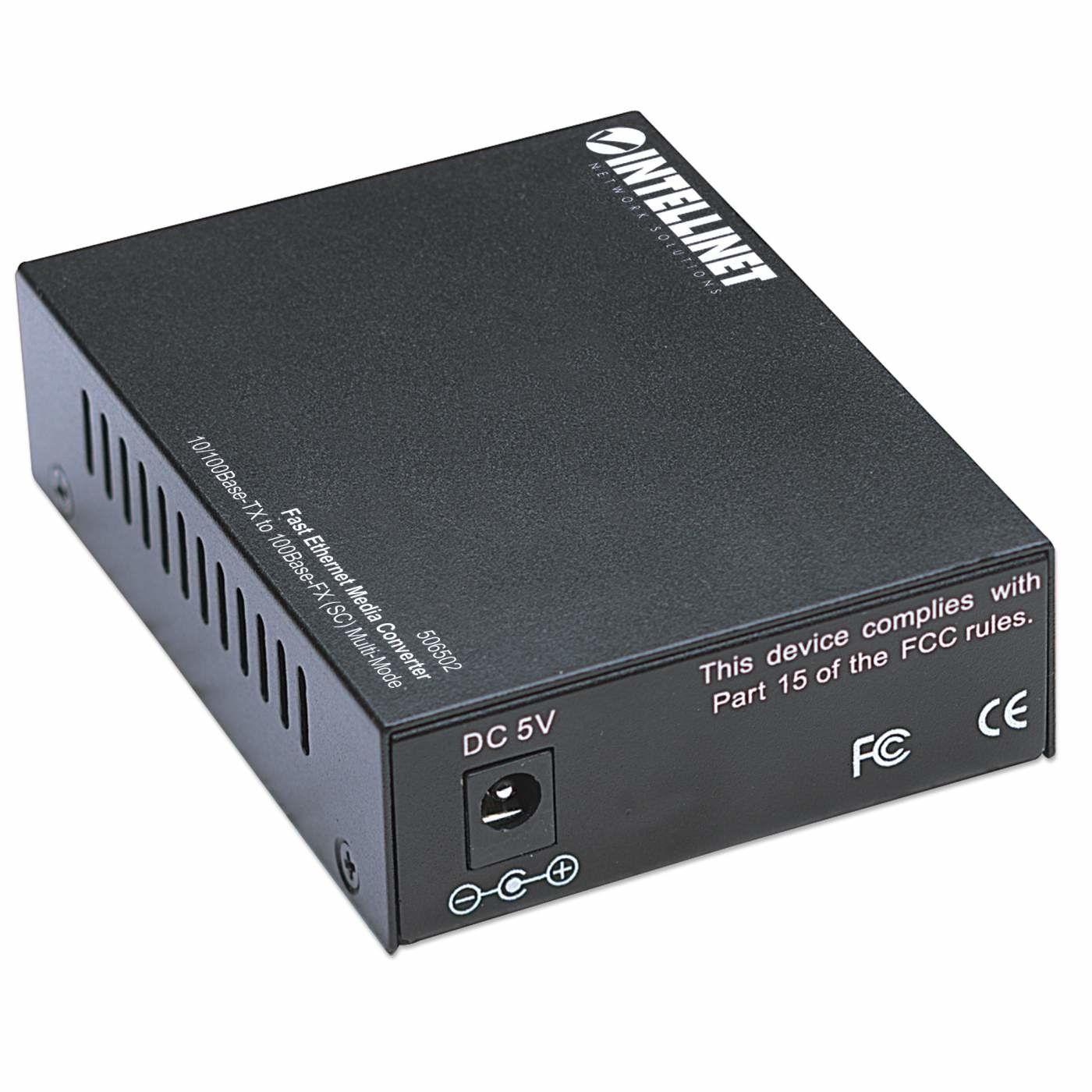

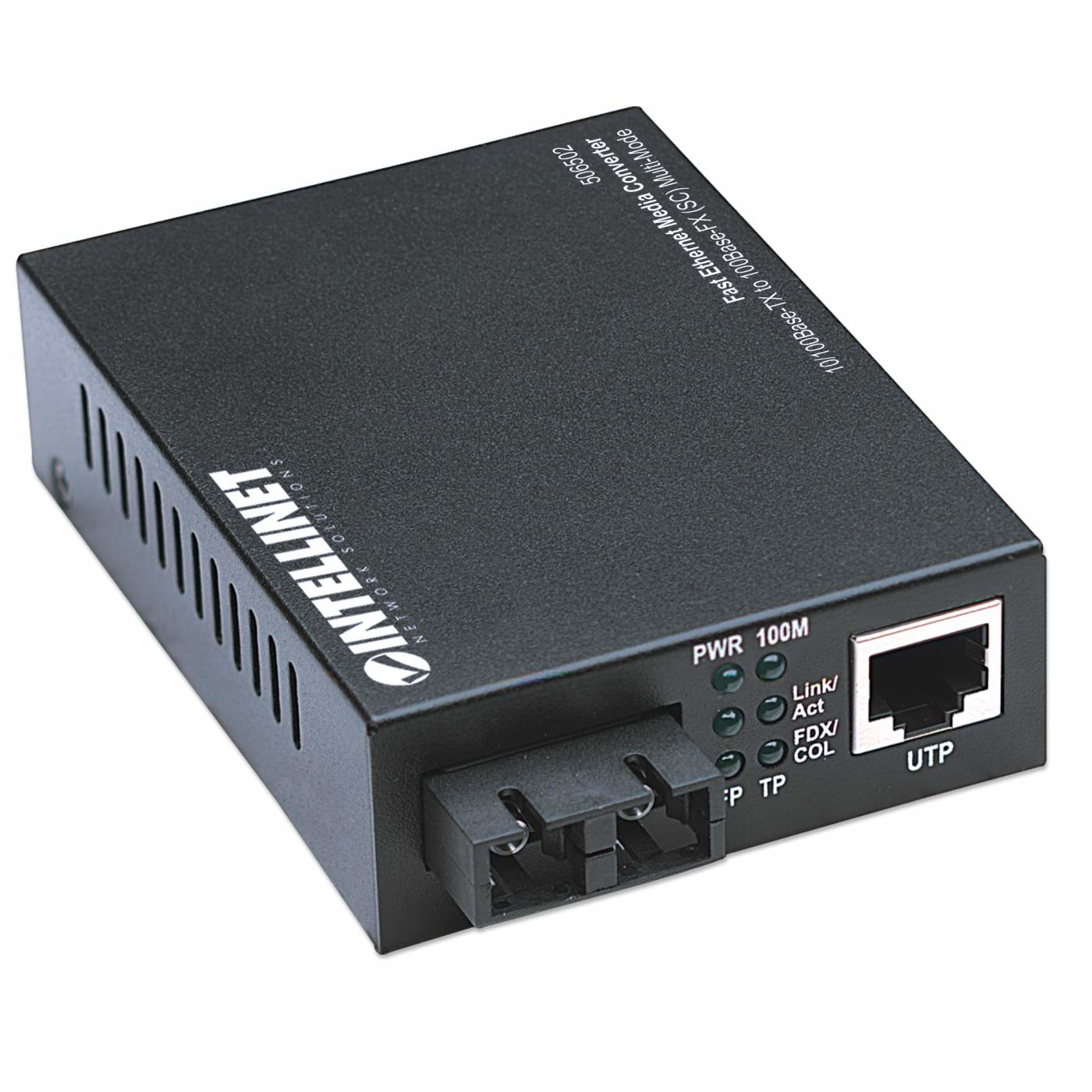

Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Multi-Mode, 2 km (1.24 mi)
Model 506502EAN 7666235065028
38 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight500 g
- ColourBlack
- Maximum transfer distance2000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 500 g
- Colour
- Black
- Maximum transfer distance
- 2000 m
- Internal
- No
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 506502
- Part number
- 506502
- EAN / UPC
- 7666235065028, 041114196470, 132018259313, 151902999050 +4 more
- Also known as
- Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Multi-Mode, 2 km (1.24 mi)
Specifications
38 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -22 dBmW |
| Tx power (max) | -12 dBmW |
| Sensitivity | -30 dBmW |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |

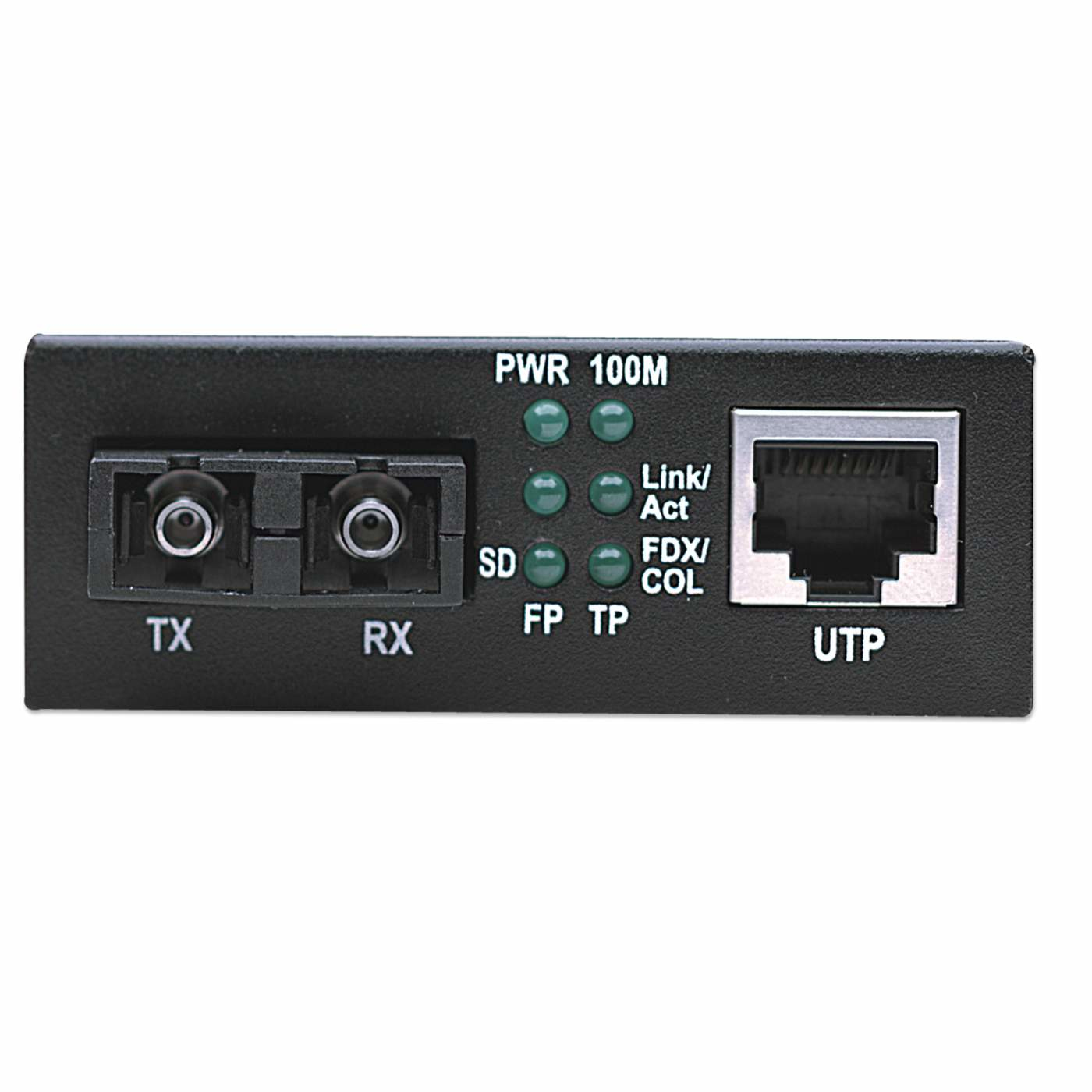

| LED indicators | LAN, Link, Power, Status |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

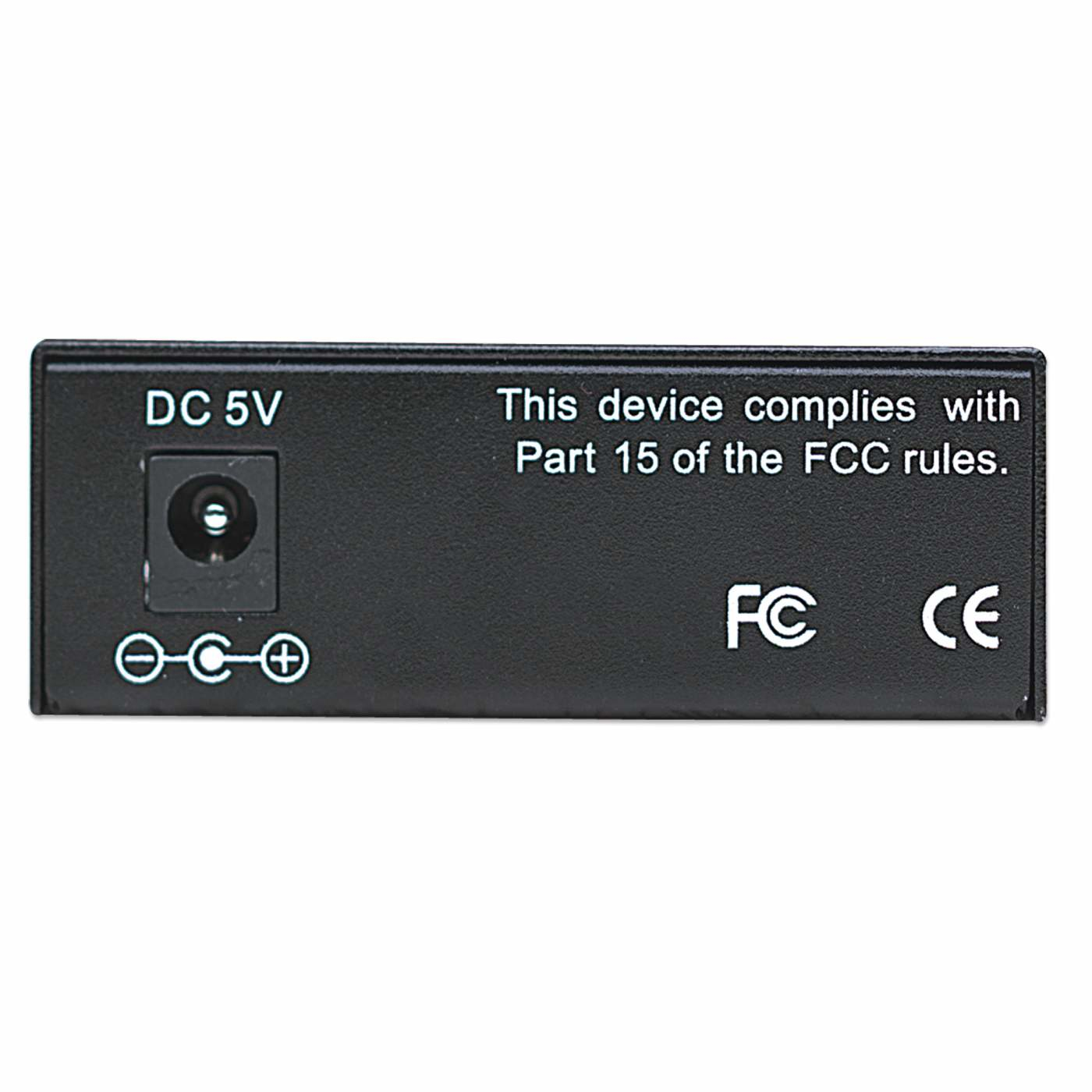

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 2.5 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 107 mm |
| Height | 26 mm |
| Weight | 500 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE, UKCA, NDAA |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
