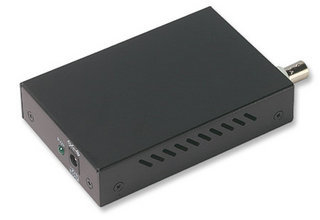

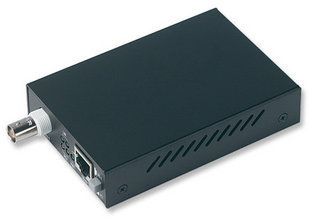

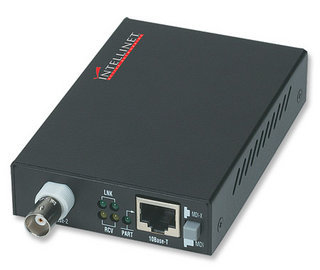

Intellinet 502443 network media converter 10 Mbit/s Black
Model 502443EAN 766623502443
23 specifications
- Speed10 Mbit/s
- ConnectivityWired
- Weight158 g
- ColourBlack
- Maximum transfer distance185 m
- InternalNo
Overview
- Speed
- 10 Mbit/s
- Connectivity
- Wired
- Weight
- 158 g
- Colour
- Black
- Maximum transfer distance
- 185 m
- Internal
- No
- Brand
- Intellinet
- Category
- Network Media Converter
- Model
- 502443
- Part number
- 502443
- EAN / UPC
- 766623502443
- Also known as
- Intellinet 502443 network media converter 10 Mbit/s Black
Specifications
23 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10 Mbit/s |
| Converter input interface | 10Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 185 m |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 0.5 A |
| Power consumption (typical) | 2.4 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 158 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Other features
| Specification | Value |
|---|---|
| Connector(s) | BNC |
| Dimensions (WxDxH) | 74 x 109 x 24 mm |
