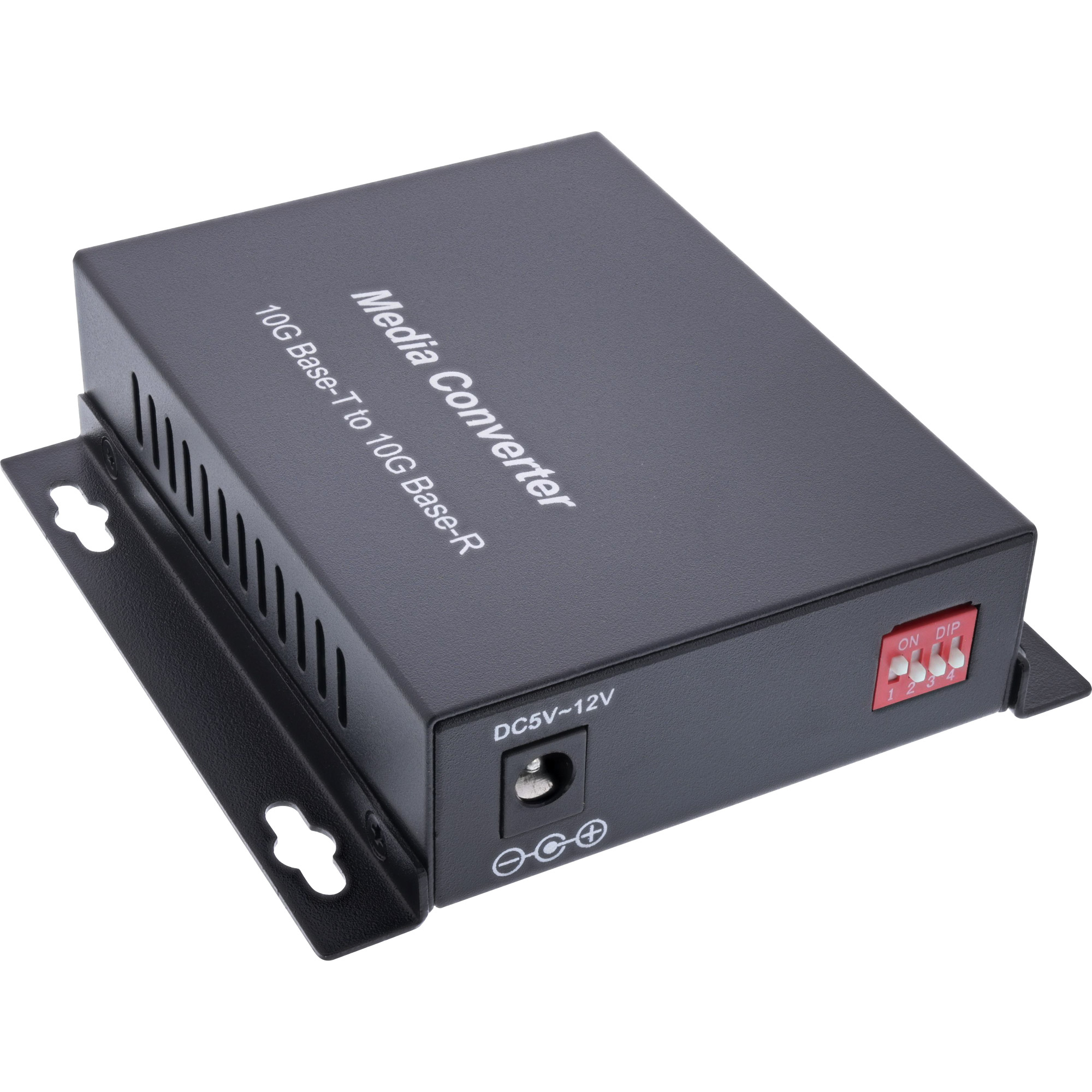

66659E network media converter 10000 Mbit/s 850 nm Multi-mode Black
Model 66659EEAN 4043718338047
37 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight290 g
- ColourBlack
- Maximum transfer distance300 m
- InternalNo
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 290 g
- Colour
- Black
- Maximum transfer distance
- 300 m
- Internal
- No
- Brand
- InLine
- Category
- Network Media Converter
- Model
- 66659E
- Part number
- 66659E
- EAN / UPC
- 4043718338047
- Also known as
- InLine 66659E network media converter 10000 Mbit/s 850 nm Multi-mode Black
Specifications
37 specifications in 12 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Converter input interface | 10Base-T, 10GBase-T, 100Base-T, 1000Base-T |
| Converter output interface | 10GBASE-R |
| Networking standards | IEEE 802.3x |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Link Fault Pass-through (LFP) | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Status |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LCD, SFP+ |
Power
| Specification | Value |
|---|---|
| Output voltage | 12 V |
| Output current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 110 mm |
| Height | 26 mm |
| Weight | 290 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 80% |
Packaging content
| Specification | Value |
|---|---|

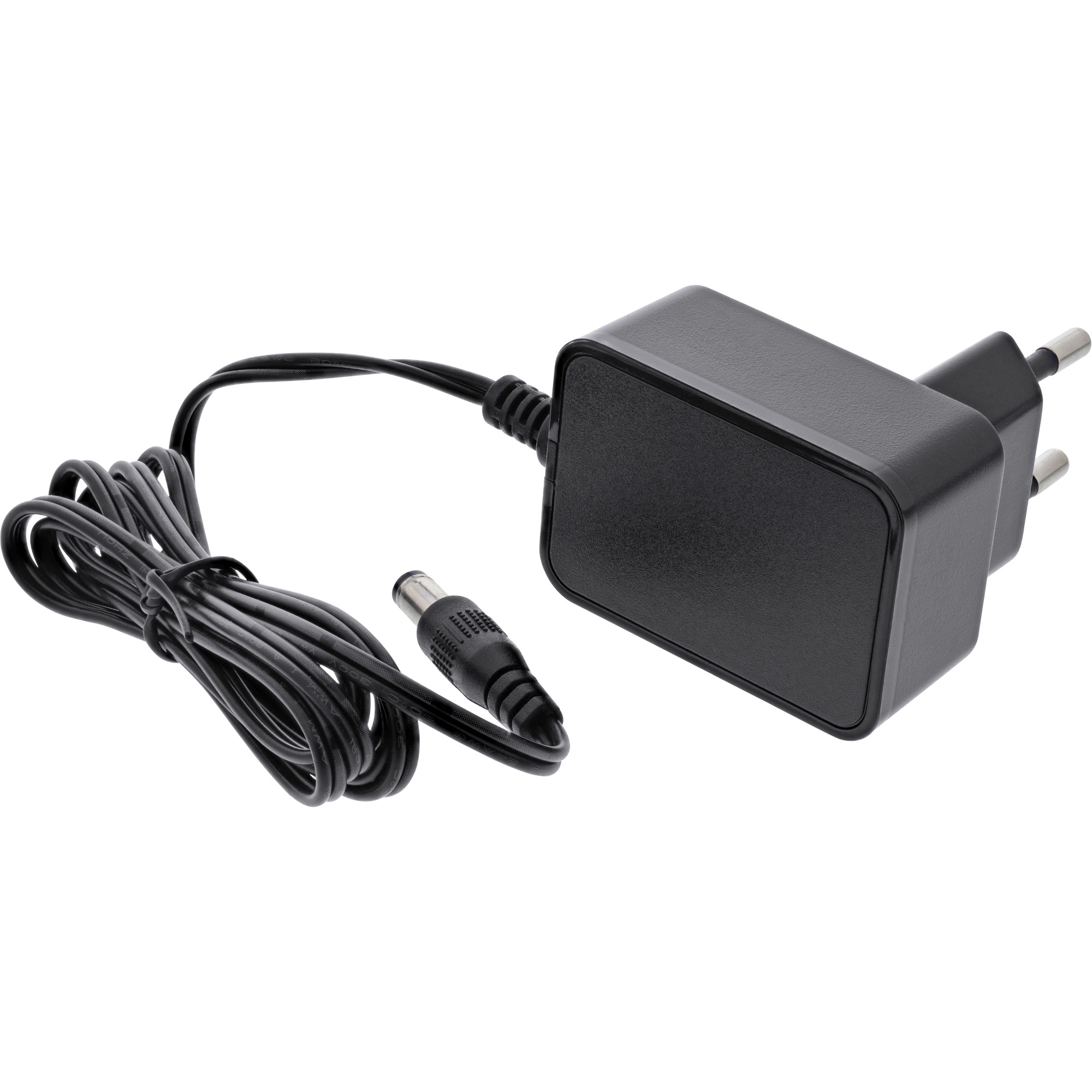

| AC adapter included | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 124 mm |
| Package depth | 230 mm |
| Package height | 52 mm |
| Package volume | 1400 cm³ |
| Package weight | 388 g |
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 94 x 110 x 26 mm |
