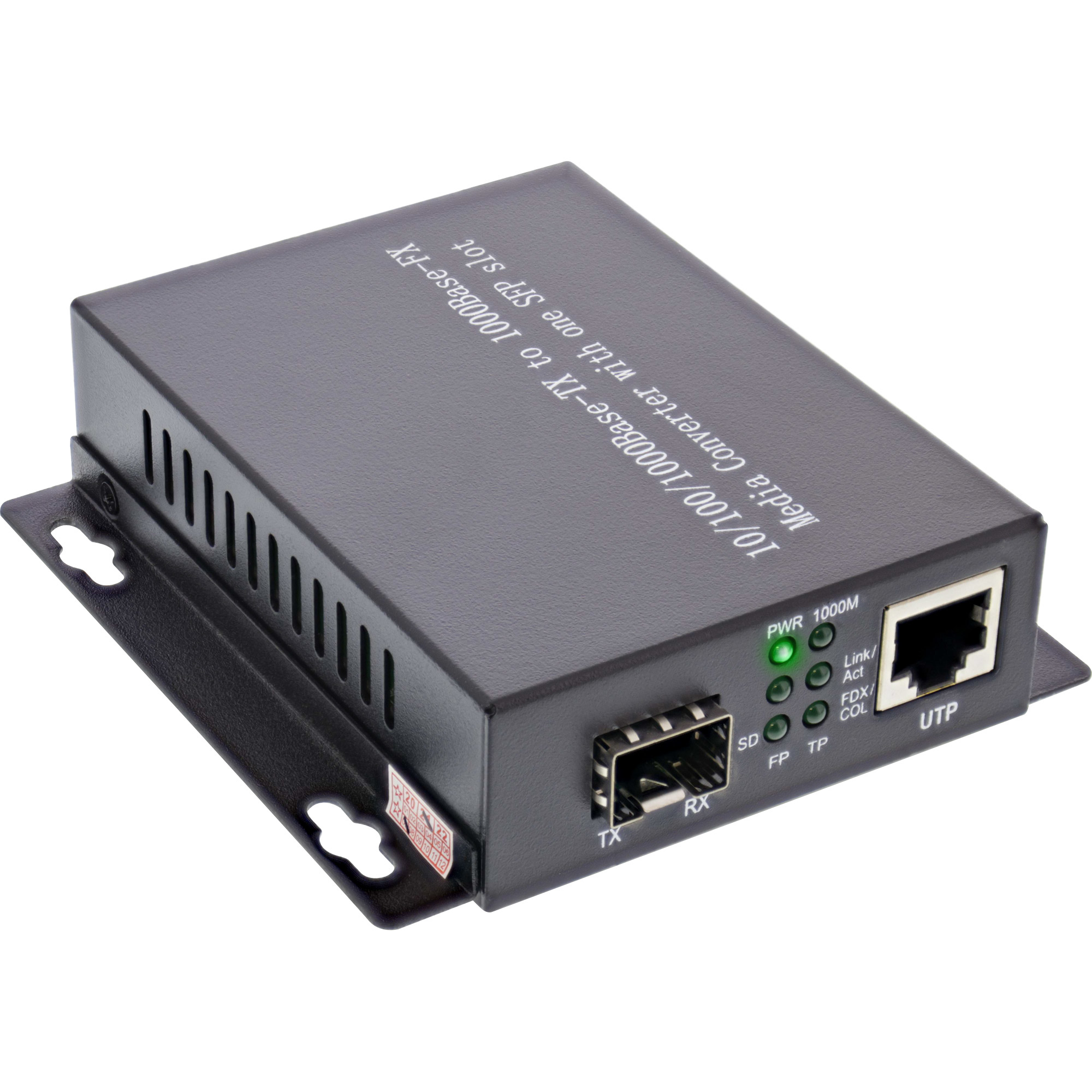

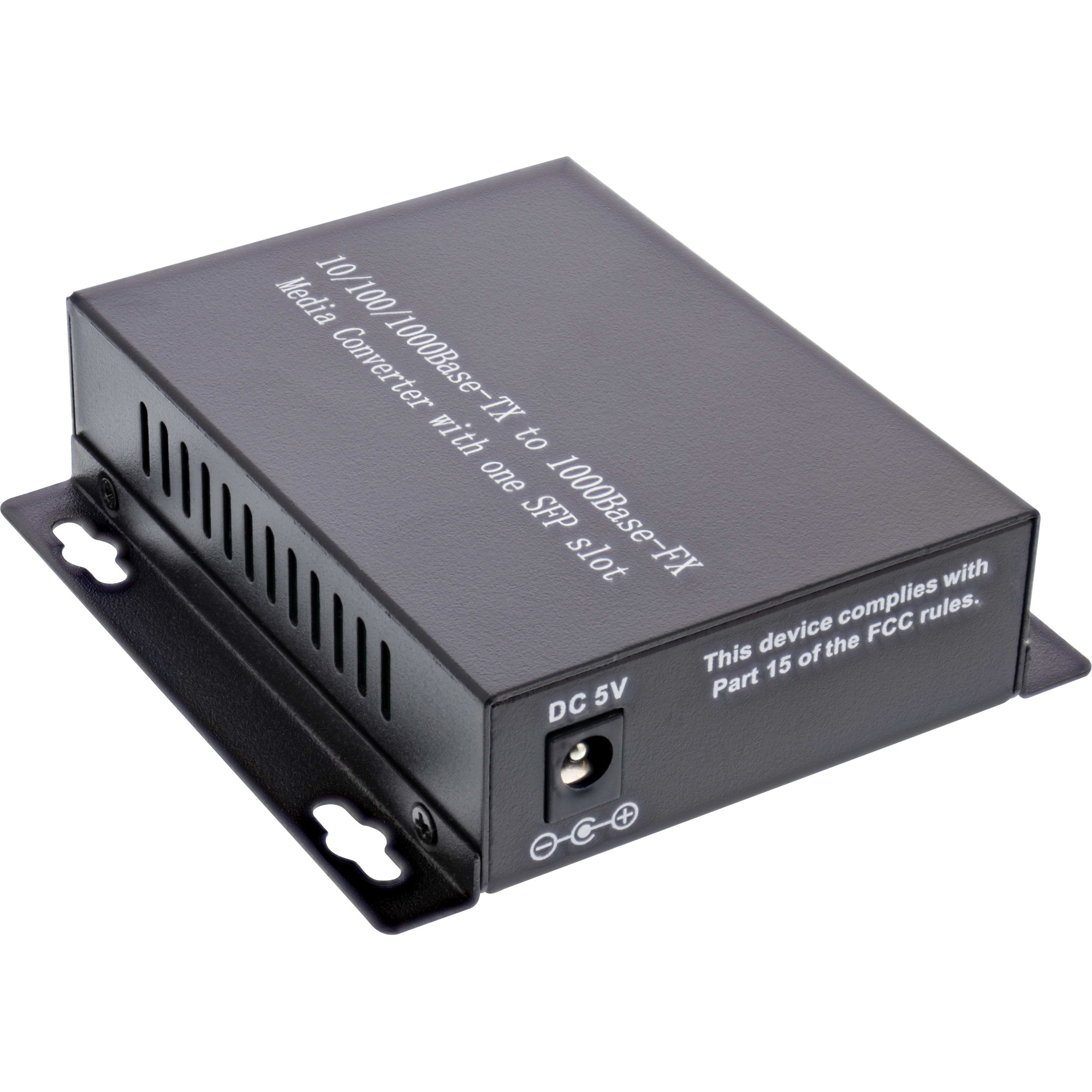

Network Media Converter 10/100/1000Mb/s TP to SFP FO, MM, 550m
Model 66659CEAN 4043718290789
30 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight177 g
- ColourBlack
- Maximum transfer distance550 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 177 g
- Colour
- Black
- Maximum transfer distance
- 550 m
- Internal
- No
- Brand
- InLine
- Category
- Network Media Converter
- Model
- 66659C
- Part number
- 66659C
- EAN / UPC
- 4043718290789
- Also known as
- InLine Network Media Converter 10/100/1000Mb/s TP to SFP FO, MM, 550m
Specifications
30 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Network, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 1 A |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 95 mm |
| Height | 25 mm |
| Weight | 177 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 120 mm |
| Package depth | 230 mm |
| Package height | 50 mm |
| Package weight | 328 g |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 70 x 95 x 25 mm |
