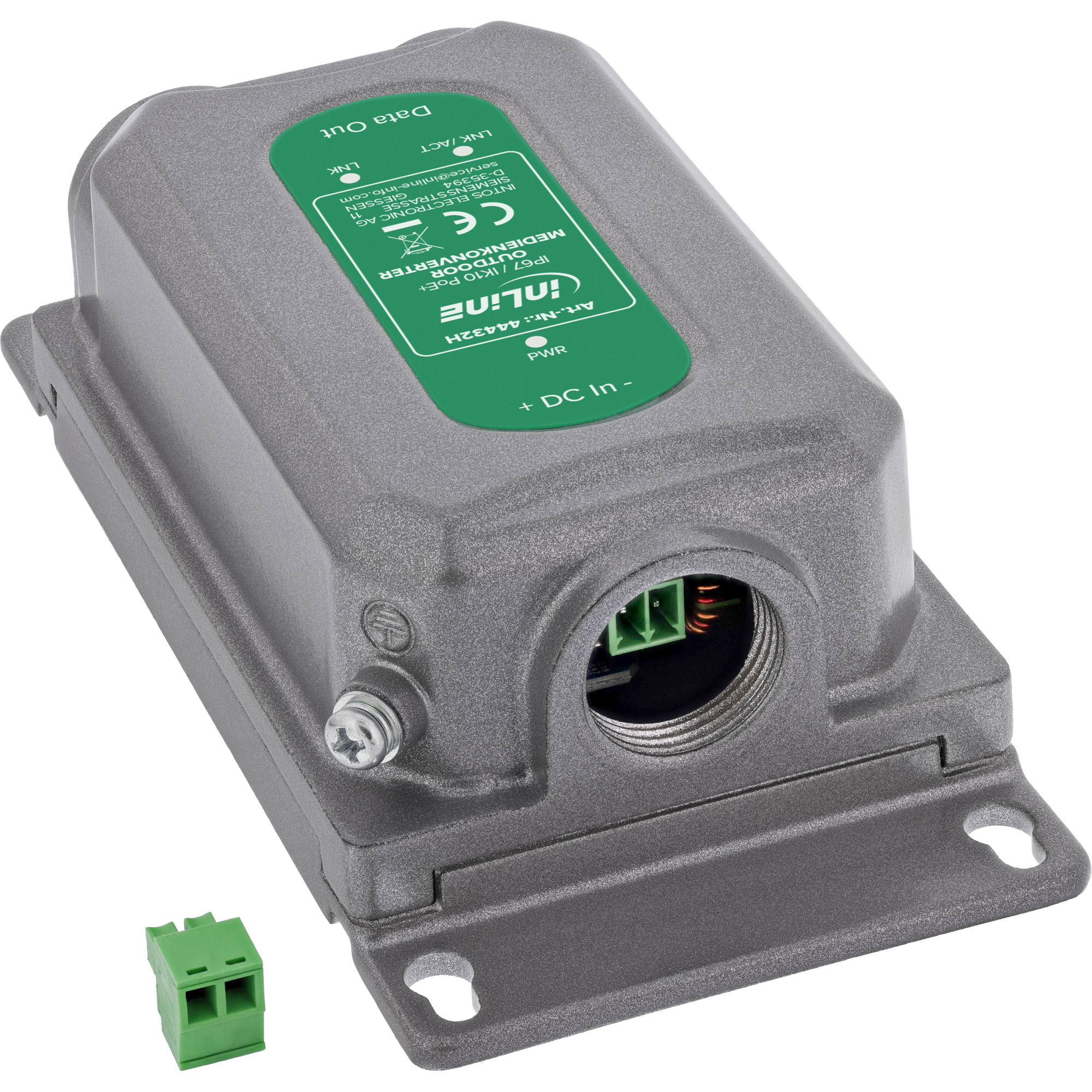

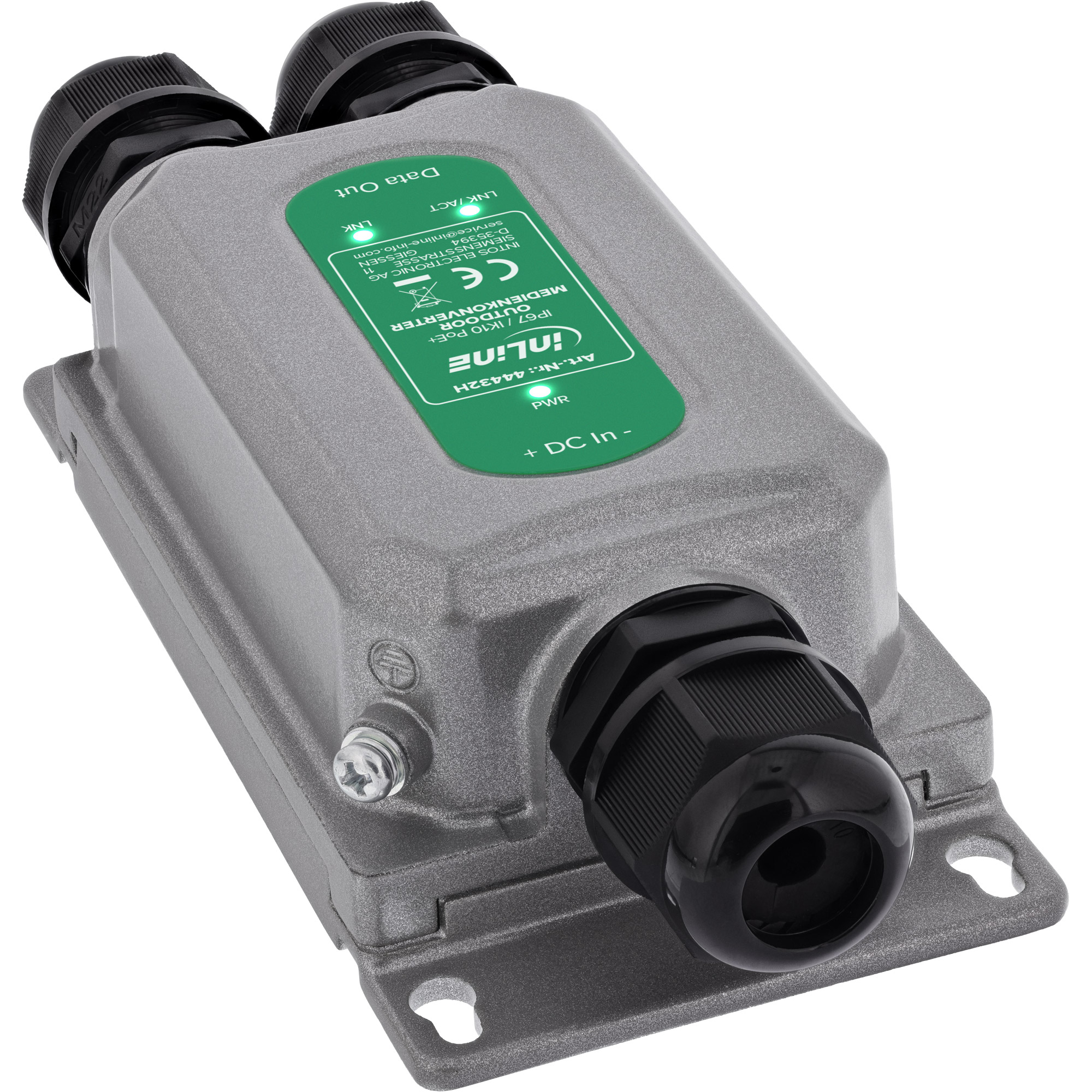

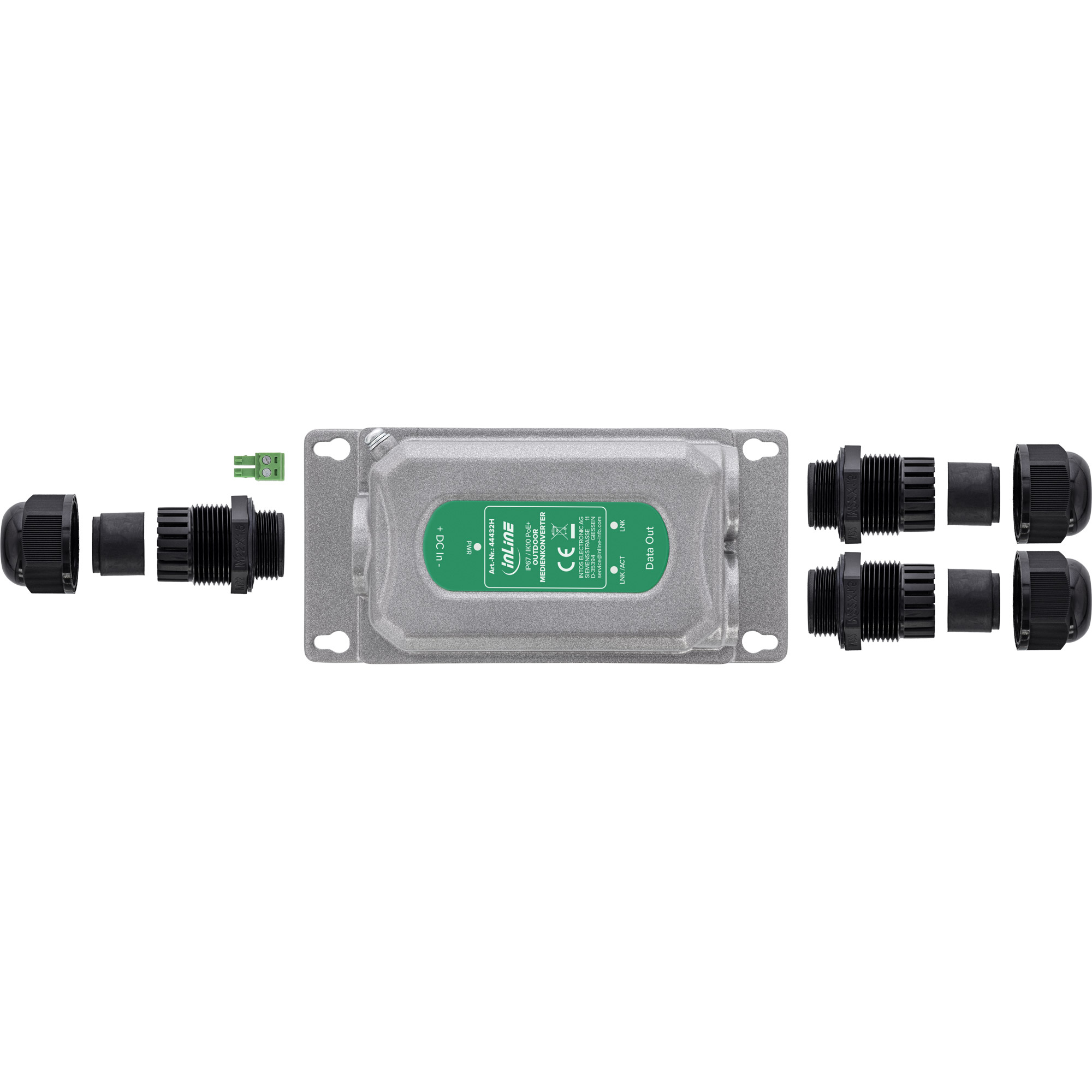

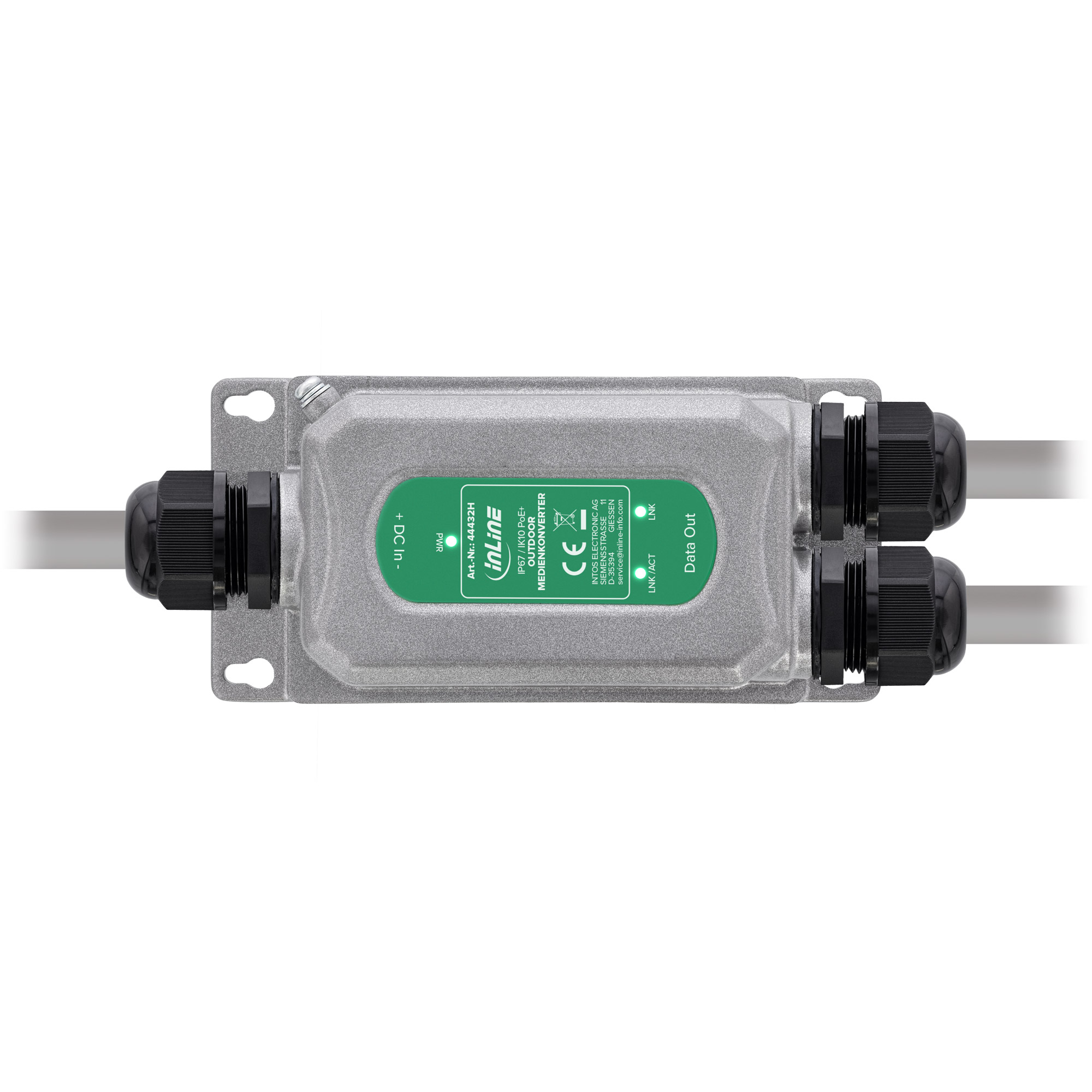

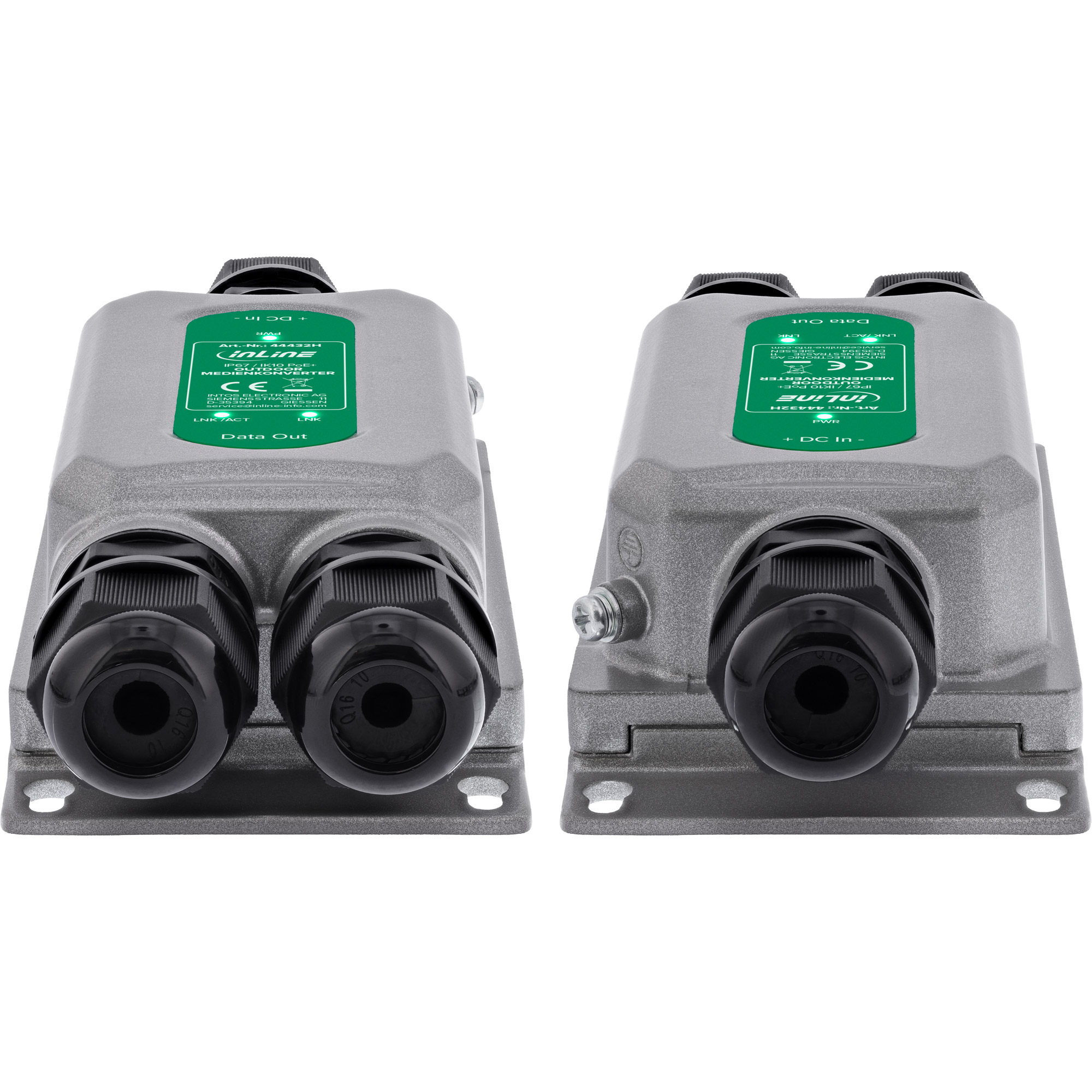

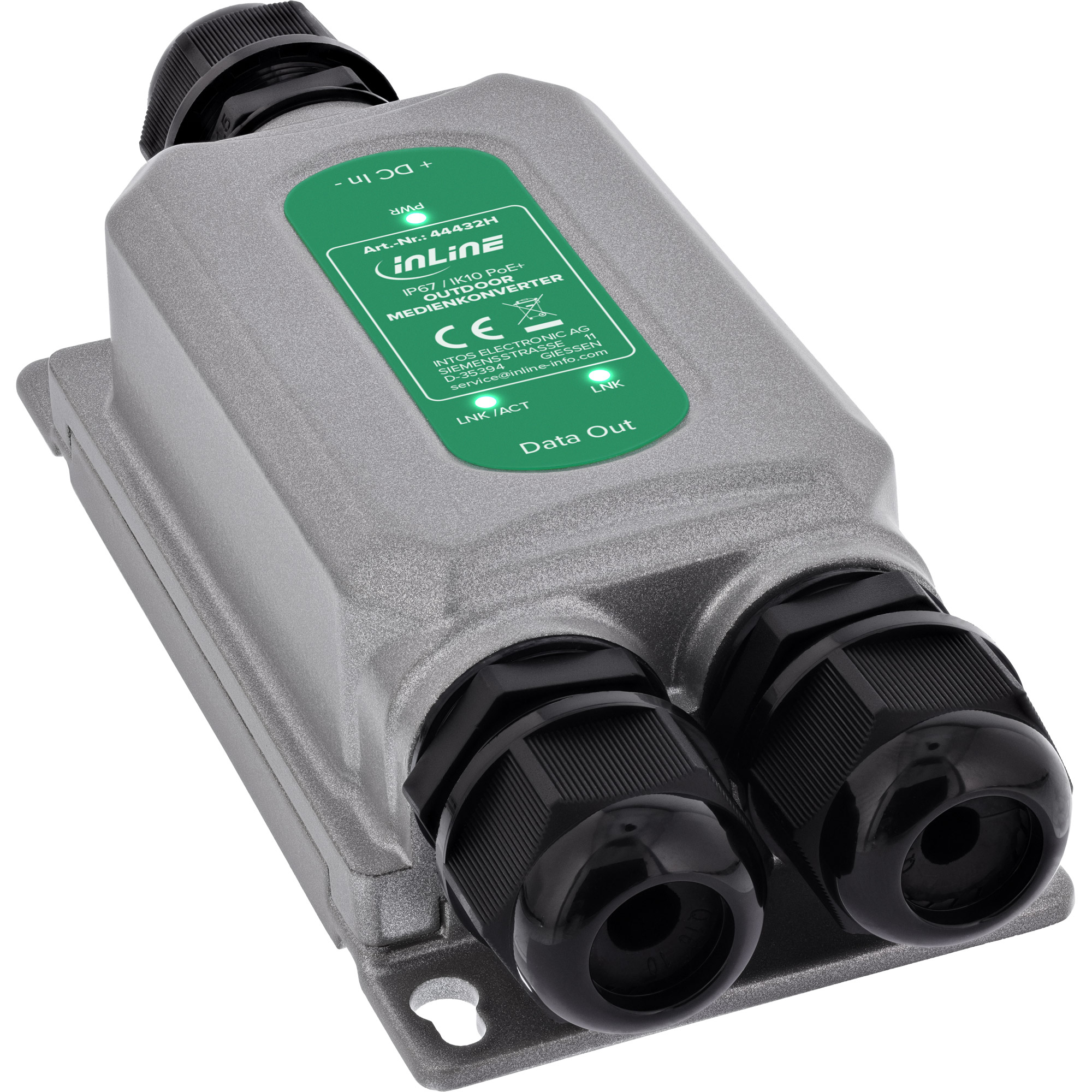

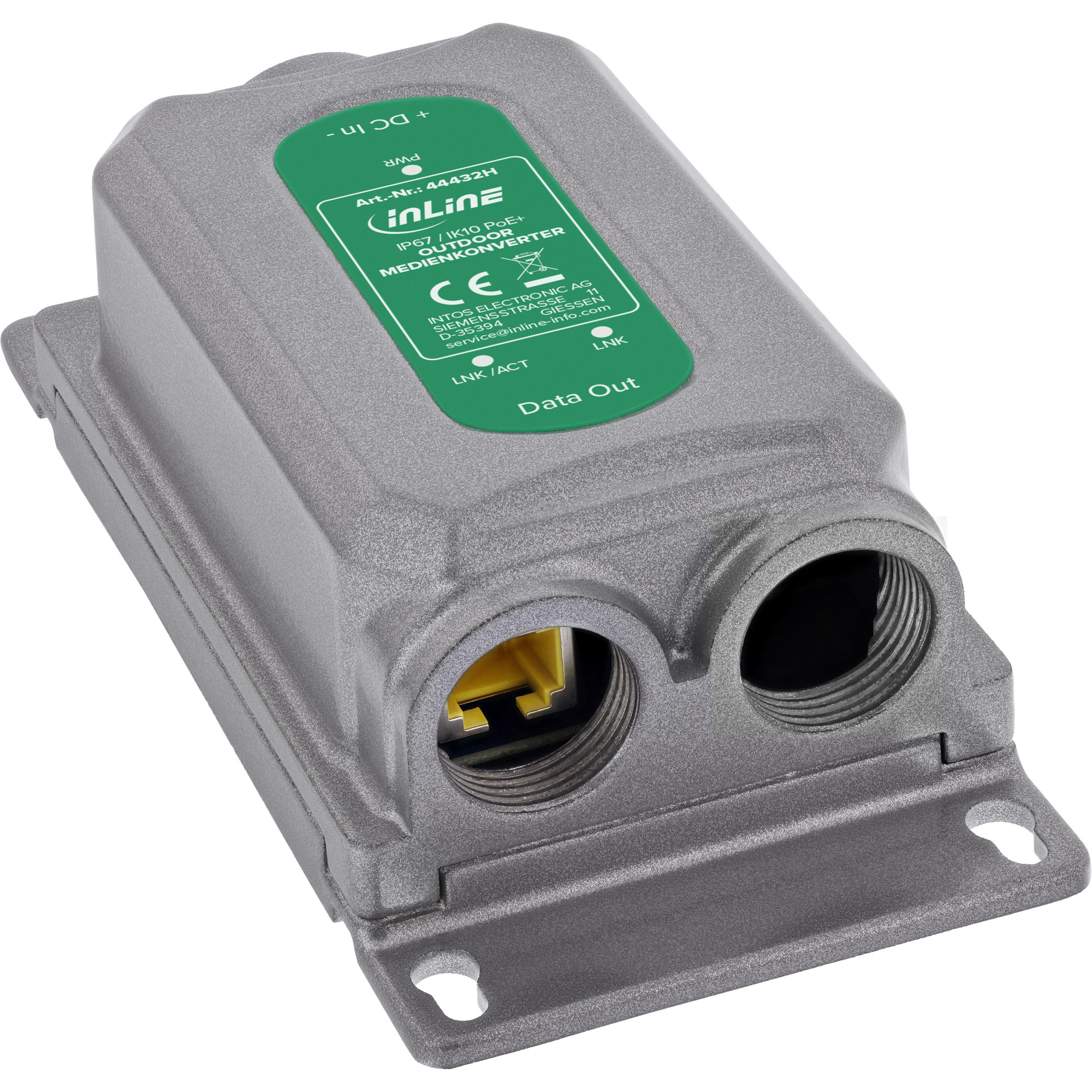

44432H network media converter 1000 Mbit/s Grey
Model 44432HEAN 4043718352395
35 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight488 g
- ColourGrey
- InternalNo
- Input voltage24–56
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 488 g
- Colour
- Grey
- Internal
- No
- Input voltage
- 24–56
- Brand
- InLine
- Category
- Network Media Converter
- Model
- 44432H
- Part number
- 44432H
- EAN / UPC
- 4043718352395
- Also known as
- InLine 44432H network media converter 1000 Mbit/s Grey
Specifications
35 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000 |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| Power protection features | Surge protection, Static electricity |
| Product colour | Grey |
| Compliance industry standards | IP67, IK10 |

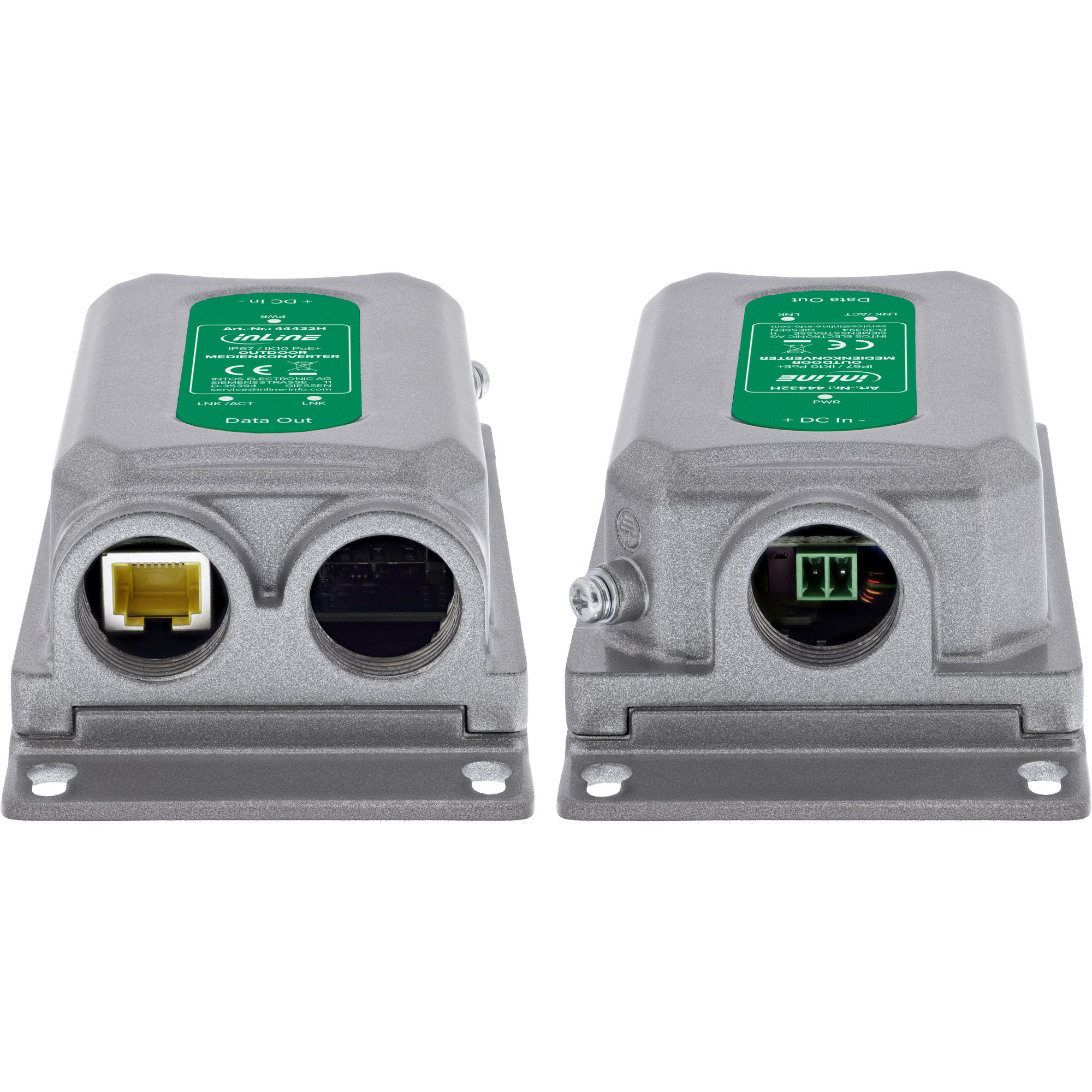

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP, RJ-45 |
| Power over Ethernet (PoE) ports quantity | 1 |
| DC-in jack | No |
Power
| Specification | Value |
|---|---|
| Input voltage | 24–56 |
| Power consumption (max) | 30 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 71 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 488 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |

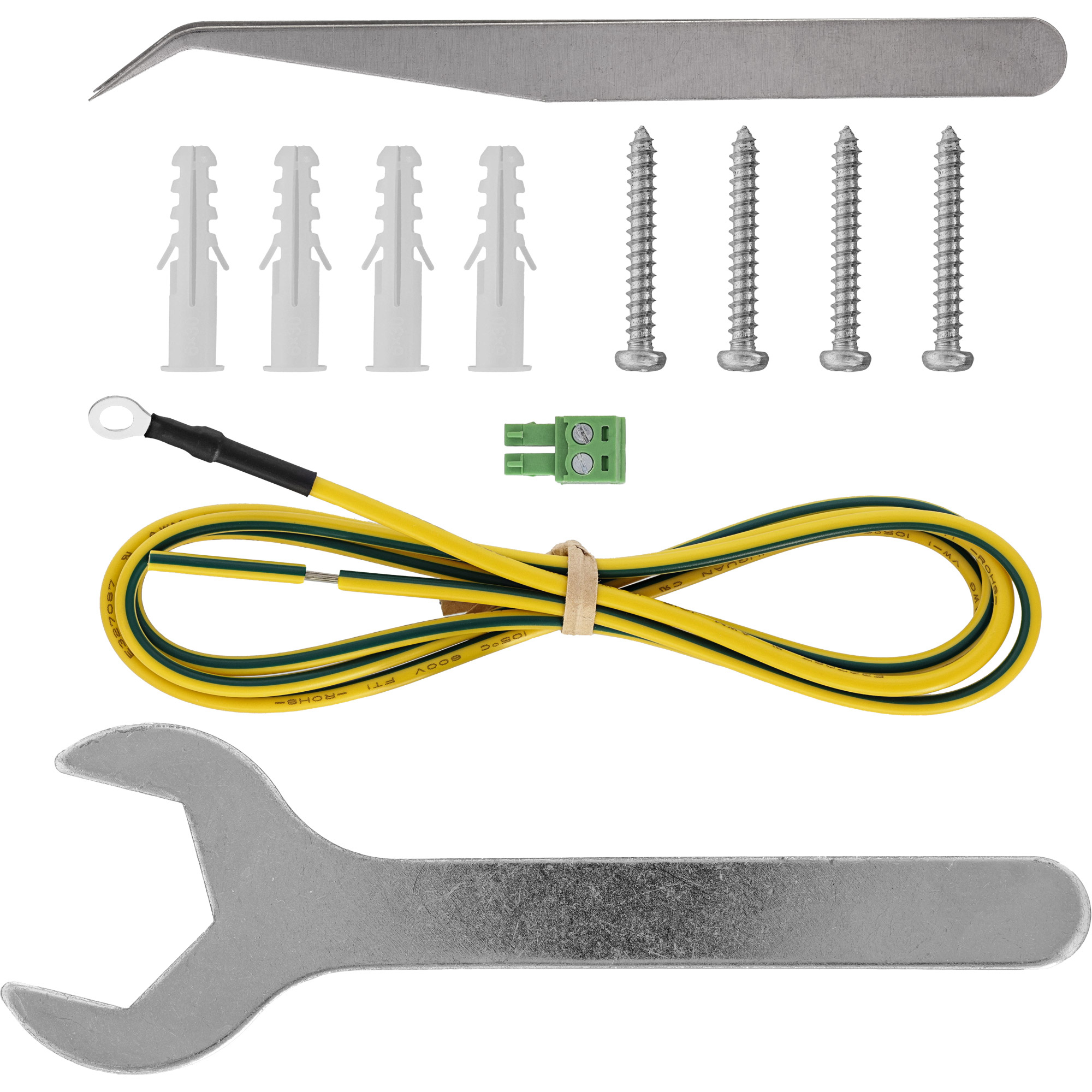

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 188 mm |
| Package depth | 240 mm |
| Package height | 86 mm |
| Package volume | 3900 cm³ |
| Package weight | 718 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Customs product code (TARIC) | 8517620000 |
| Harmonized System (HS) code | 851762 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 71 x 180 x 44 mm |
