DMC-G01LC/E network media converter 1000 Mbit/s Grey
Model DMC-G01LC/EEAN 790069388514
47 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourGrey
- Mean time between failures (MTBF)506711 h
- InternalNo
- Input voltage230 - 240 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Grey
- Mean time between failures (MTBF)
- 506711 h
- Internal
- No
- Input voltage
- 230 - 240 V
- Brand
- D-Link
- Category
- Network Media Converter
- Model
- DMC-G01LC/E
- Part number
- DMC-G01LC/E
- EAN / UPC
- 790069388514, 790069415982, 7900694159820
- Also known as
- D-Link DMC-G01LC/E network media converter 1000 Mbit/s Grey
Specifications
47 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 506711 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

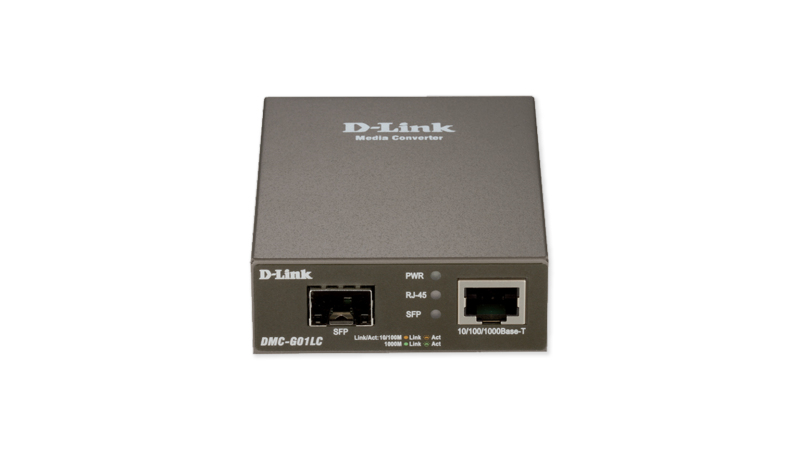

| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |

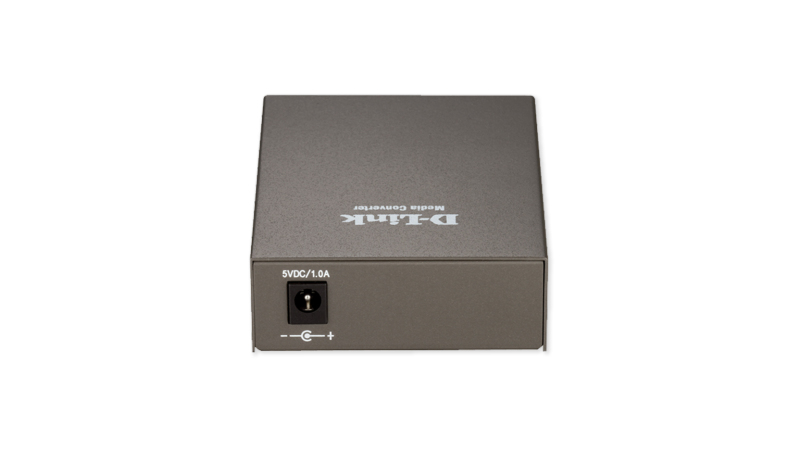

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 230 - 240 V |
| Output voltage | 5 V |
| Output current | 1 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 95 mm |
| Height | 25 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 101 mm |
| Package depth | 134 mm |
| Package height | 95 mm |
| Package weight | 358 g |
Certificates
| Specification | Value |
|---|---|
| Safety | LVD, UL/cUL |
| Certification | CE, FCC, VCCI, BSMI |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) cases per pallet (air) | 40 pc(s) |
| Master (outer) cases per pallet (sea) | 64 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 341.1 kg |
| Pallet gross weight (sea) | 534.6 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 131 cm |
| Pallet height (sea) | 2.02 m |
| Products per pallet (air) | 800 pc(s) |
| Products per pallet (sea) | 1280 pc(s) |
| Products per shipping (inner) case | 20 pc(s) |
| Shipping (inner) case gross weight | 8.04 kg |
| Shipping (inner) case height | 23.6 cm |
| Shipping (inner) case length | 50.4 cm |
| Shipping (inner) case net weight | 7.16 kg |
| Shipping (inner) case width | 29.4 cm |
