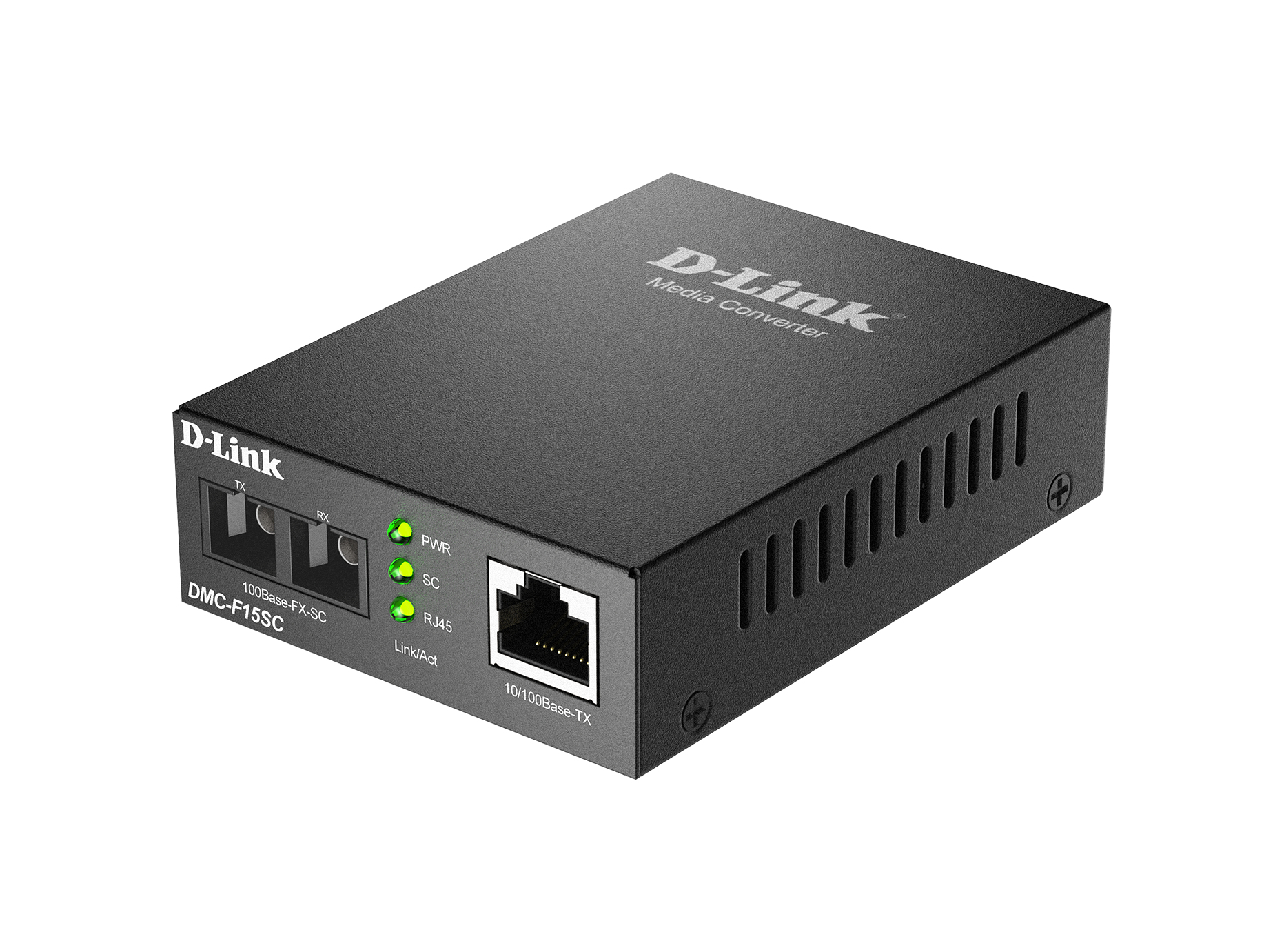

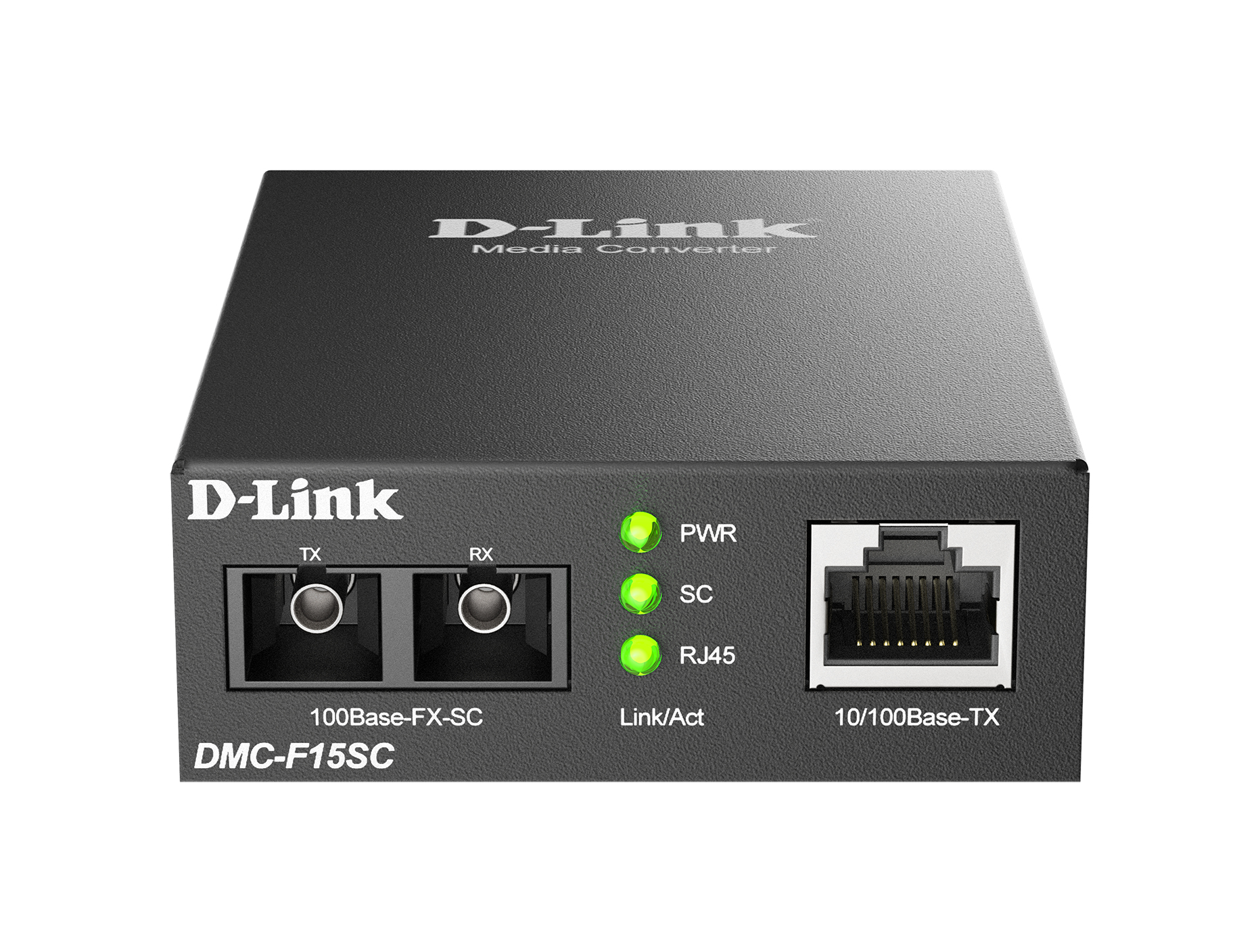

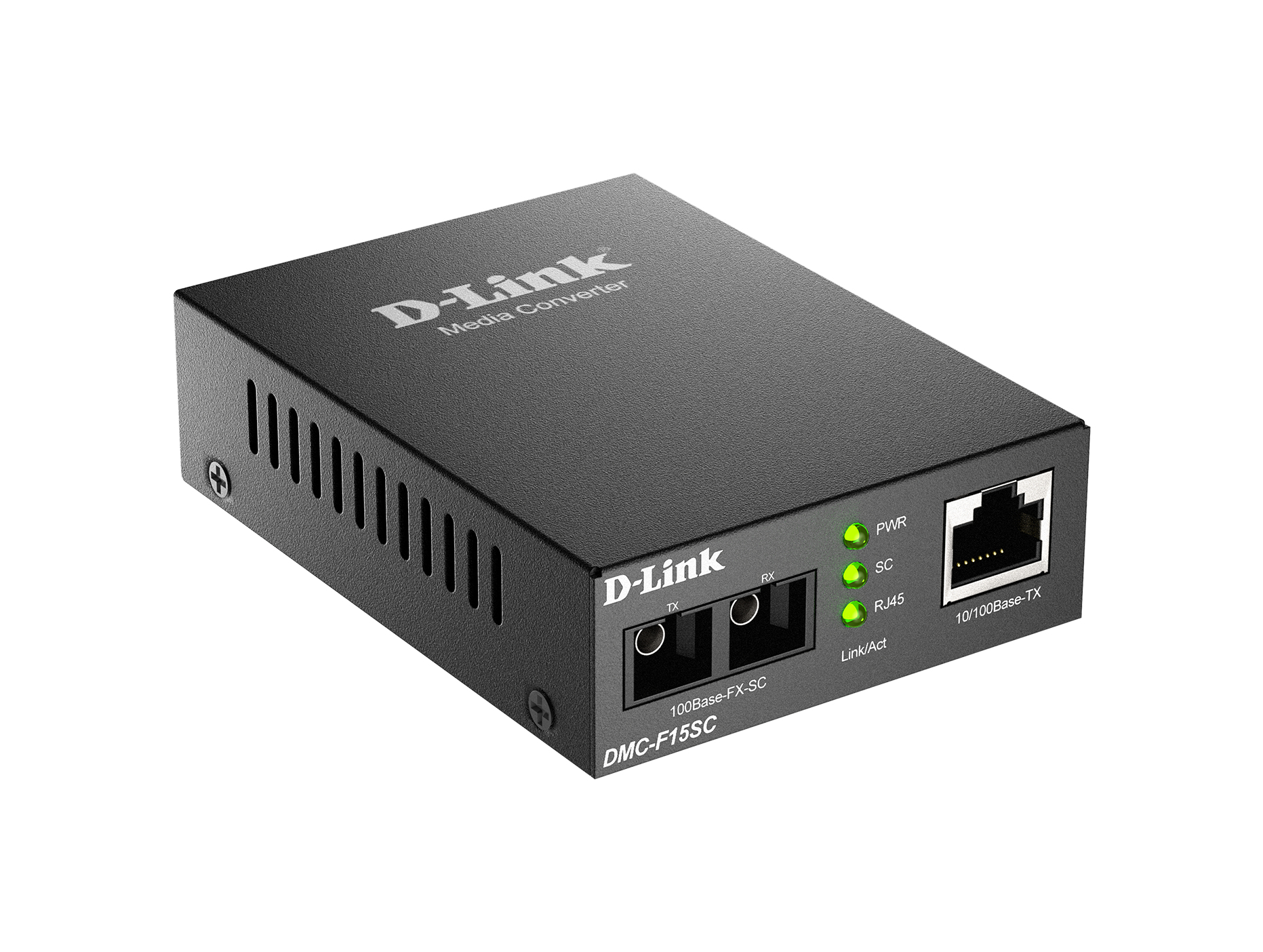

D-Link 10/100BaseTX to 100BaseFX (SC) Single-mode Media Converter (15km)
Model DMC-F15SC/BEAN 790069470066
27 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight134 g
- ColourBlack
- Maximum transfer distance15000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 134 g
- Colour
- Black
- Maximum transfer distance
- 15000 m
- Internal
- No
- Brand
- D-Link
- Category
- Network Media Converter
- Model
- DMC-F15SC/B
- Part number
- DMC-F15SC/B
- EAN / UPC
- 790069470066
- Also known as
- D-Link 10/100BaseTX to 100BaseFX (SC) Single-mode Media Converter (15km)
Specifications
27 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 15000 m |
| Fiber mode structure | Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | FX, SC |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
| Input current | 0.55 A |
| Power consumption (max) | 1.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93.5 mm |
| Depth | 70.5 mm |
| Height | 26 mm |
| Weight | 134 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Certificates
| Specification | Value |
|---|---|
| Certification | LVD CE Class B |
