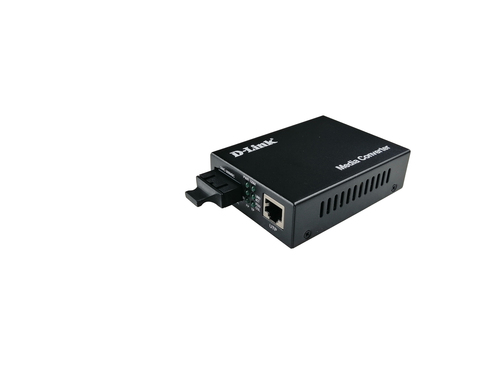

DMC-905 network media converter 10000 Mbit/s Multi-mode, Single-mode Black
Model DMC-905EAN 790069473425
16 specifications
- Speed10000 Mbit/s
- ColourBlack
- Maximum transfer distance100 m
- InternalNo
- Ethernet LAN (RJ-45) ports1
- Input voltage12 V
Overview
- Speed
- 10000 Mbit/s
- Colour
- Black
- Maximum transfer distance
- 100 m
- Internal
- No
- Ethernet LAN (RJ-45) ports
- 1
- Input voltage
- 12 V
- Brand
- D-Link
- Category
- Network Media Converter
- Model
- DMC-905
- Part number
- DMC-905
- EAN / UPC
- 790069473425
- Also known as
- D-Link DMC-905 network media converter 10000 Mbit/s Multi-mode, Single-mode Black
Specifications
16 specifications in 6 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Converter output interface | 10GBase-X |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3x |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 100 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC CE VCCI |
