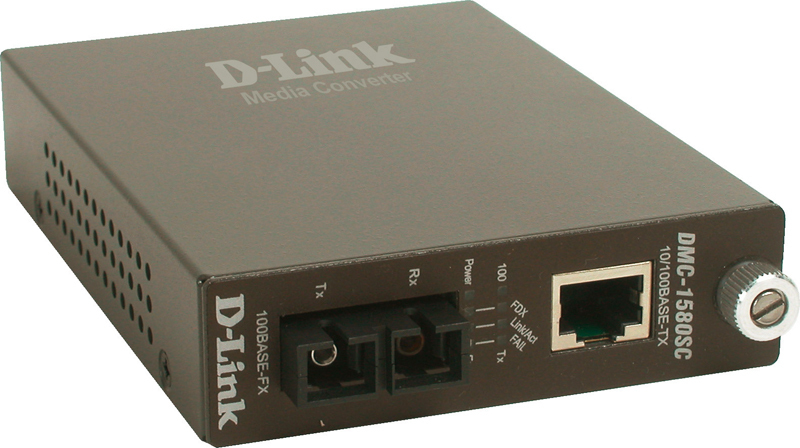

DMC-1580SC/E network media converter 100 Mbit/s Single-mode
Model DMC-1580SC/E
27 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight305 g
- Maximum transfer distance80000 m
- InternalNo
- Input current1.5 A
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 305 g
- Maximum transfer distance
- 80000 m
- Internal
- No
- Input current
- 1.5 A
- Brand
- D-Link
- Category
- Network Media Converter
- Model
- DMC-1580SC/E
- Part number
- DMC-1580SC/E
- Also known as
- D-Link DMC-1580SC/E network media converter 100 Mbit/s Single-mode
Specifications
27 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 80000 m |
| Fiber mode structure | Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Hot-swap | Yes |
| LED indicators | Link, Power, Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Input current | 1.5 A |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 305 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 75 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, VCCI |
