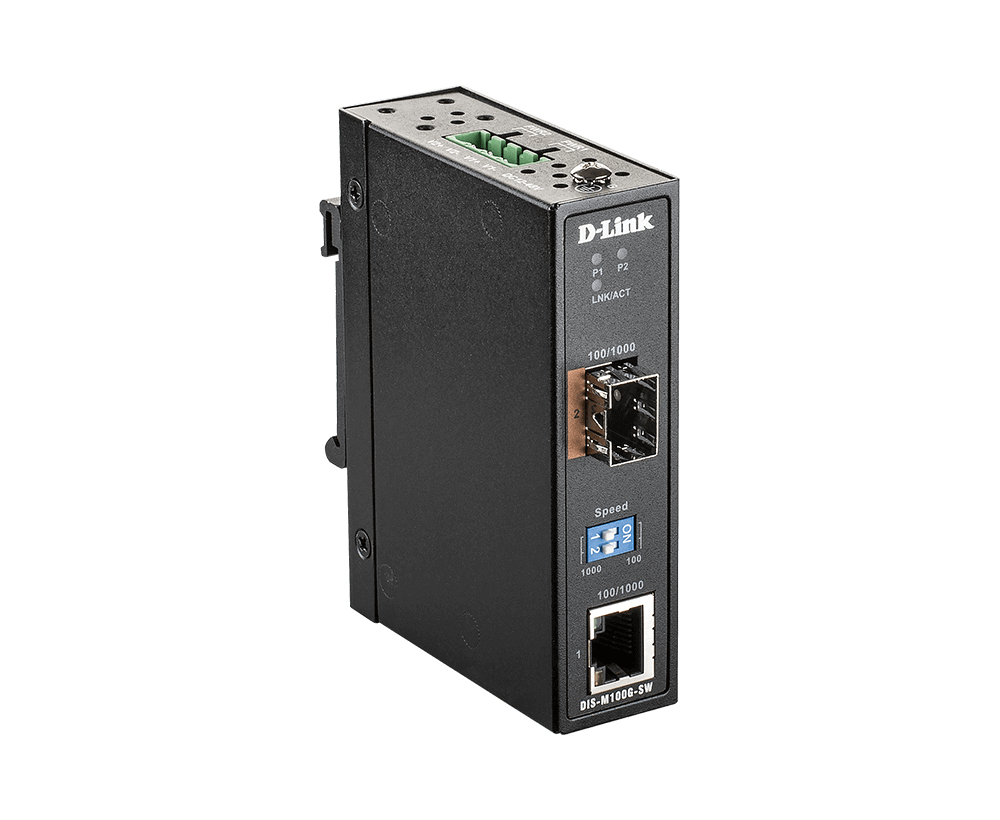

100/1000 Mbps to SFP Industrial Media Converter with -40 to 70 °C operating range
Model DIS-M100G-SWEAN 790069450020
32 specifications
- Speed4000 Mbit/s
- ConnectivityWired
- Weight190 g
- ColourBlack
- Fiber mode structureMulti-mode, Single-mode
- InternalNo
Overview
- Speed
- 4000 Mbit/s
- Connectivity
- Wired
- Weight
- 190 g
- Colour
- Black
- Fiber mode structure
- Multi-mode, Single-mode
- Internal
- No
- Brand
- D-Link
- Category
- Network Media Converter
- Model
- DIS-M100G-SW
- Part number
- DIS-M100G-SW
- EAN / UPC
- 790069450020
- Also known as
- D-Link 100/1000 Mbps to SFP Industrial Media Converter with -40 to 70 °C operating range
Specifications
32 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 4000 Mbit/s |
| Converter input interface | 100BASE-FX, 100Base-TX, 1000Base-T, 1000Base-X |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Packet forwarding rate (100 Mbps) | 2.976 pps |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Fiber mode structure | Multi-mode, Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| International Protection (IP) code | IP30 |
| LED indicators | Link, Network |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 12 - 48 V |
| Power consumption (typical) | 3.6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 95 mm |
| Height | 26.1 mm |
| Weight | 190 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
