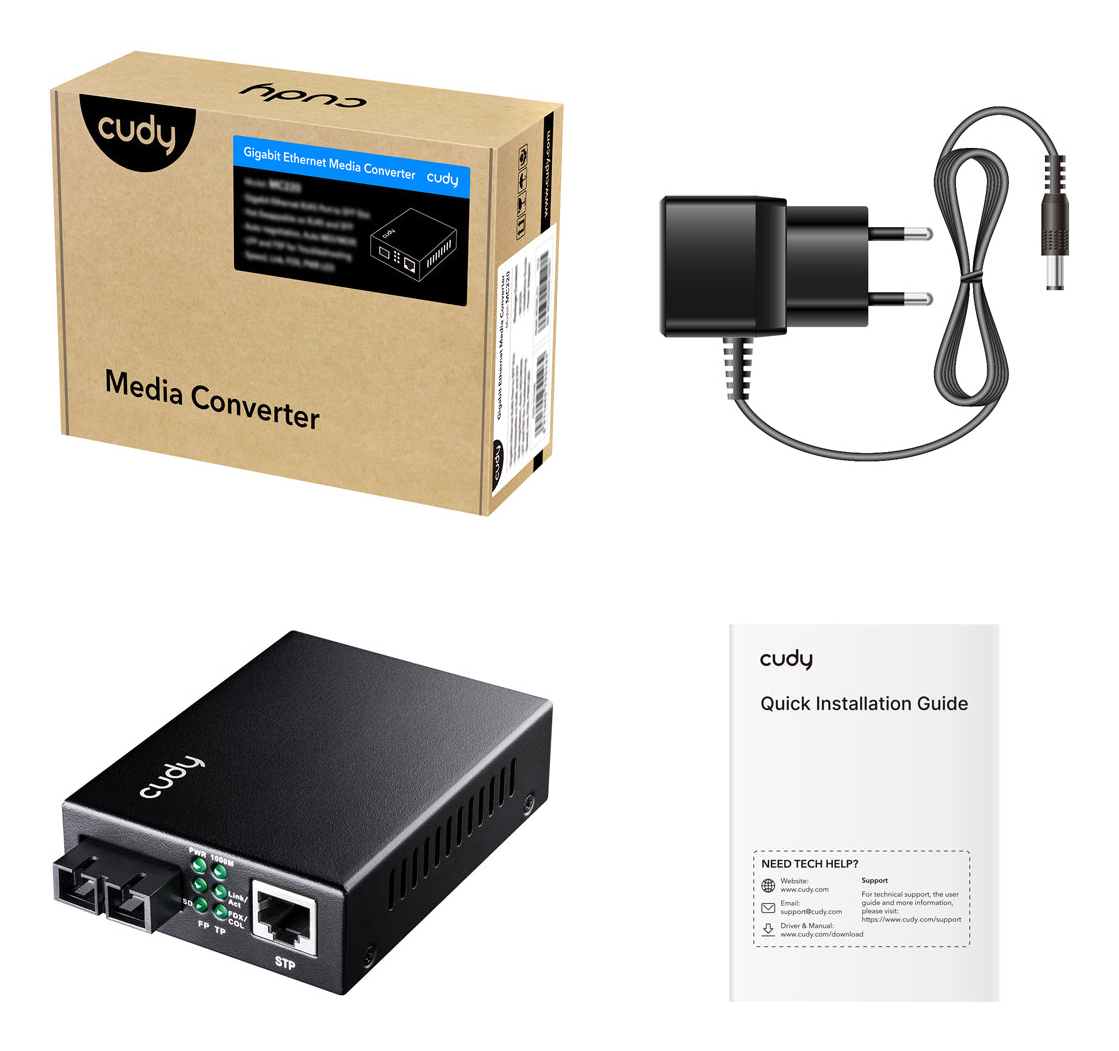

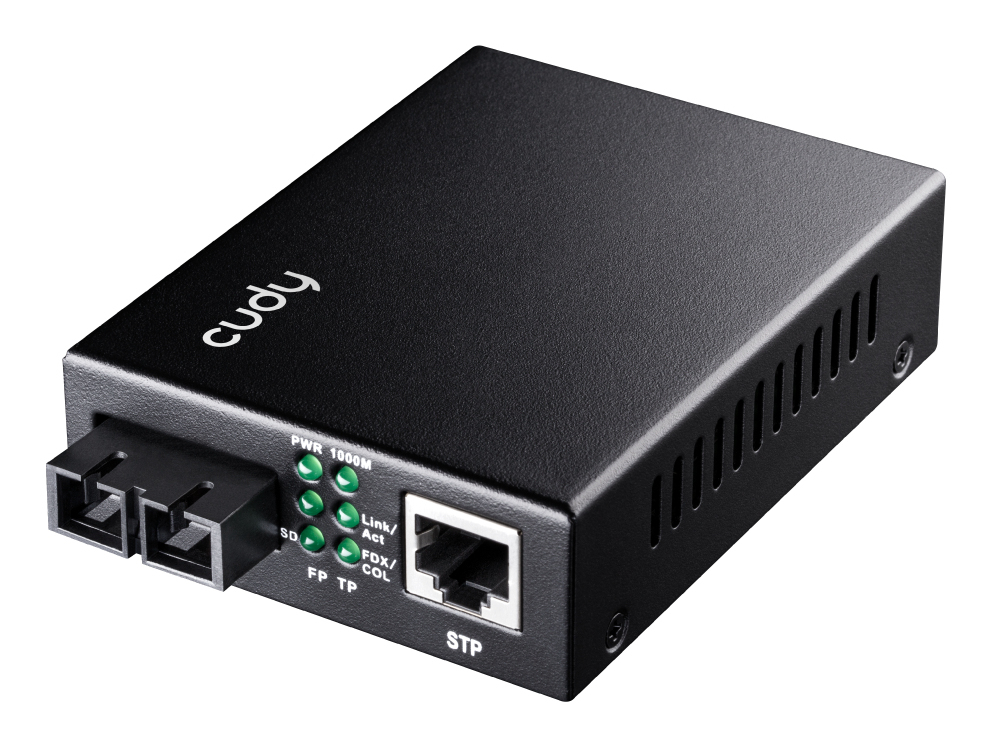

MC100GMA-05 network media converter 1000 Mbit/s 850 nm Multi-mode Black
Model MC100GMA-05EAN 6971690790608
31 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance550 m
- InternalNo
- Input voltage90 - 240 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 550 m
- Internal
- No
- Input voltage
- 90 - 240 V
- Brand
- Cudy
- Category
- Network Media Converter
- Model
- MC100GMA-05
- Part number
- MC100GMA-05
- EAN / UPC
- 6971690790608
- Also known as
- Cudy MC100GMA-05 network media converter 1000 Mbit/s 850 nm Multi-mode Black
Specifications
31 specifications in 6 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 100BASE-TX, 100BASE-FX, 1000BASE-TX |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx wavelength (max) | 850 nm |
| Tx wavelength (min) | 850 nm |
| Rx wavelength (max) | 850 nm |
| Rx wavelength (min) | 850 nm |
| Fiber mode structure | Multi-mode |
| Sensitivity | 19 dBmW |
| Buffer size | 9 KB |
| Mean time between failures (MTBF) | 50000 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |
| LED indicators | Yes |
| Product colour | Black |

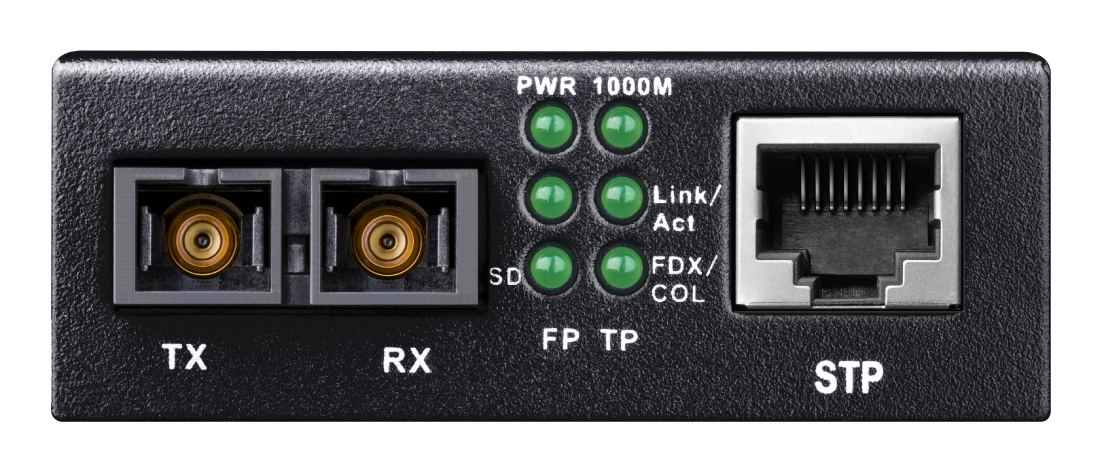

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Input voltage | 90 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Power consumption (typical) | 4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
