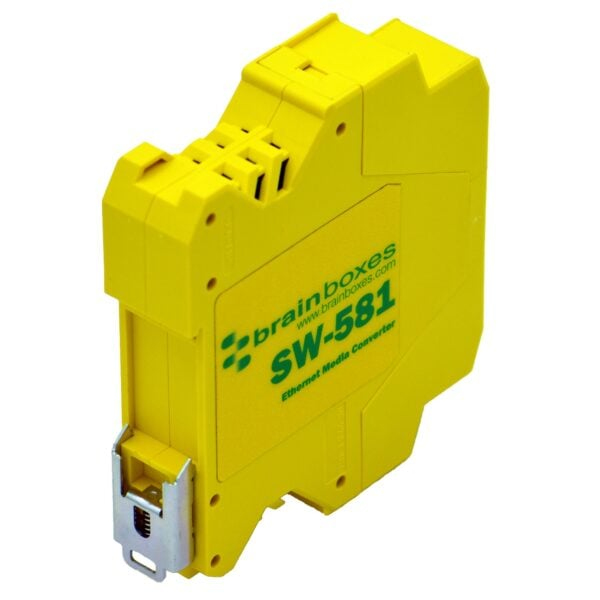

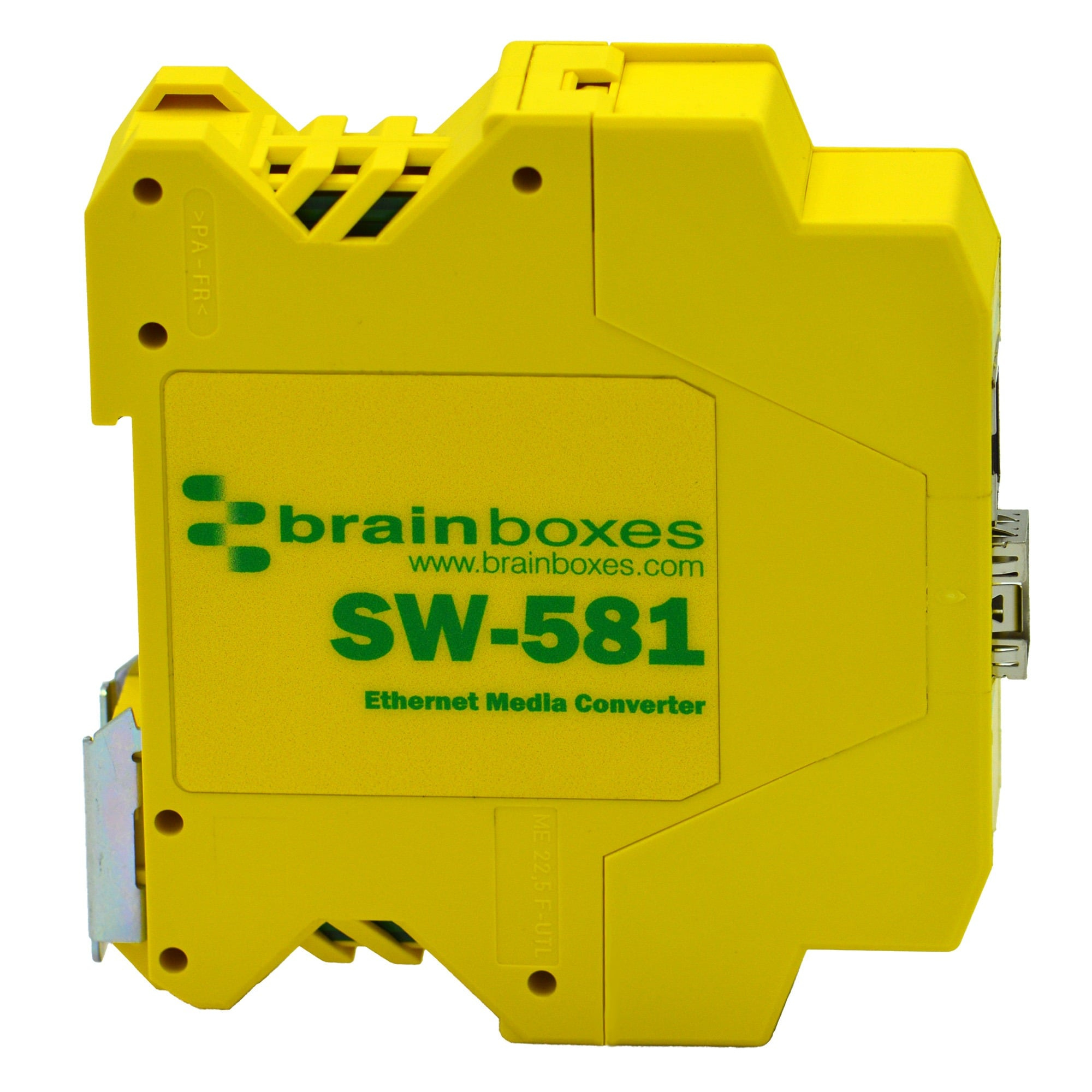

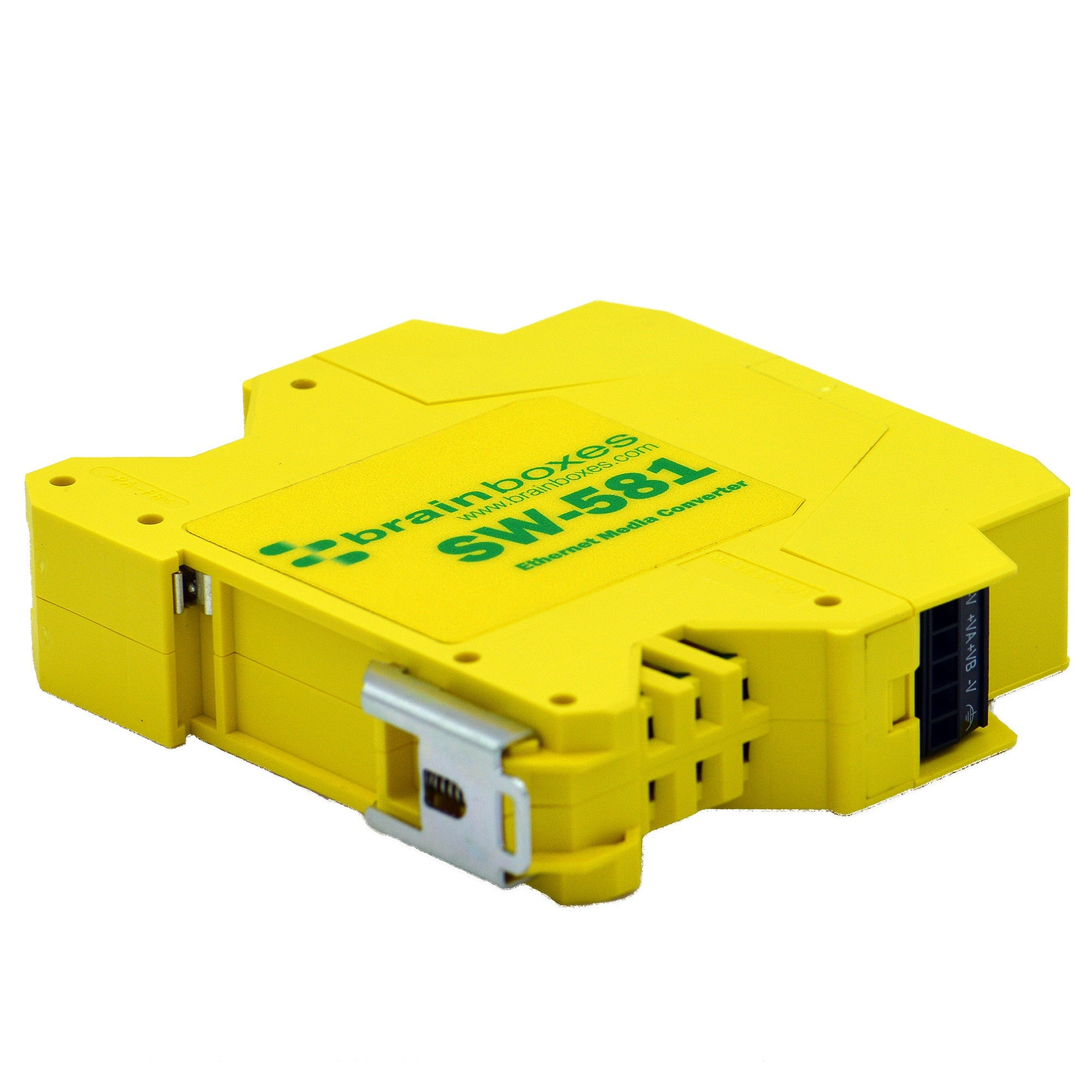

Industrial Ethernet Media Converter
Model SW-581EAN 837324005042
38 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- TypeDIN rail
- Weight90 g
- ColourYellow
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Type
- DIN rail
- Weight
- 90 g
- Colour
- Yellow
- Internal
- No
- Brand
- Brainboxes
- Category
- Network Media Converter
- Model
- SW-581
- Part number
- SW-581
- EAN / UPC
- 837324005042
- Also known as
- Brainboxes Industrial Ethernet Media Converter
Specifications
38 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE-X |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Auto MDI/MDI-X | Yes |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Plug and Play | Yes |

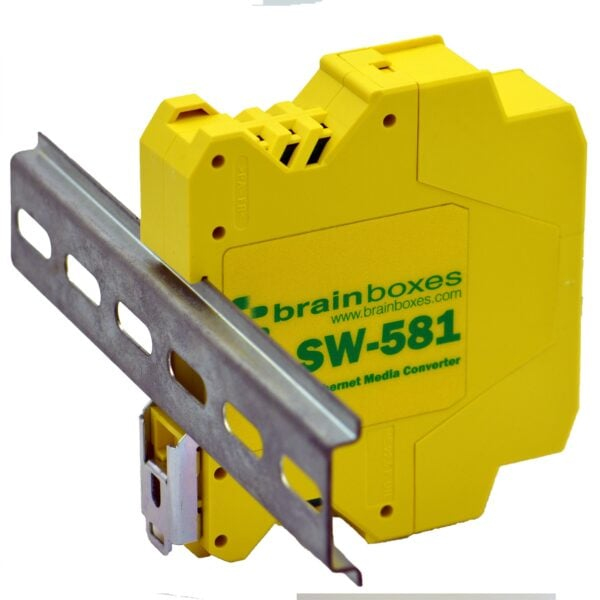

| DIN rail mounting | Yes |
| Housing material | Polyamide |
| International Protection (IP) code | IP20 |
| Power protection features | Over current |
| Product colour | Yellow |

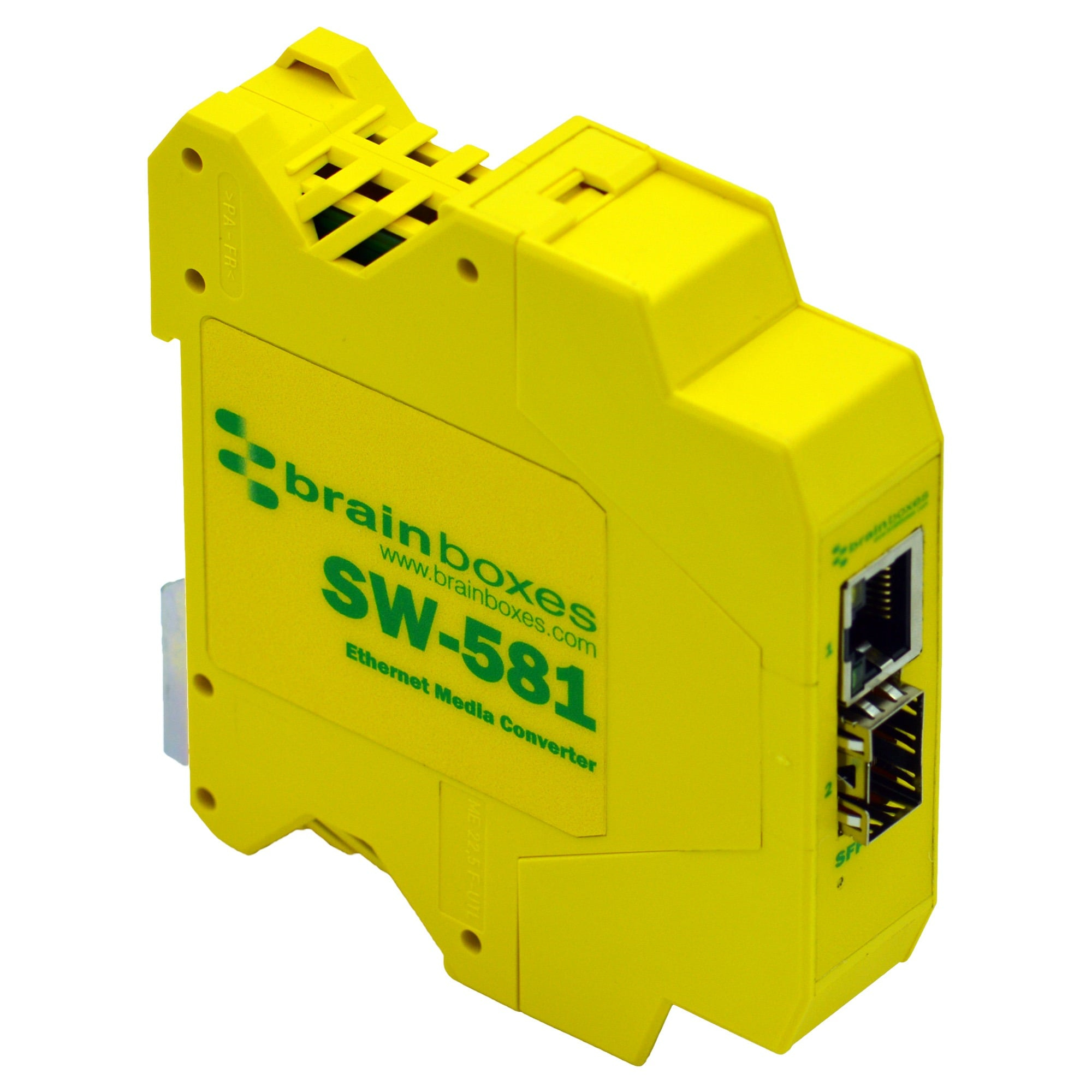

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 - 30 V |
| Power consumption (max) | 3.3 W |
| Power over Ethernet (PoE) | No |

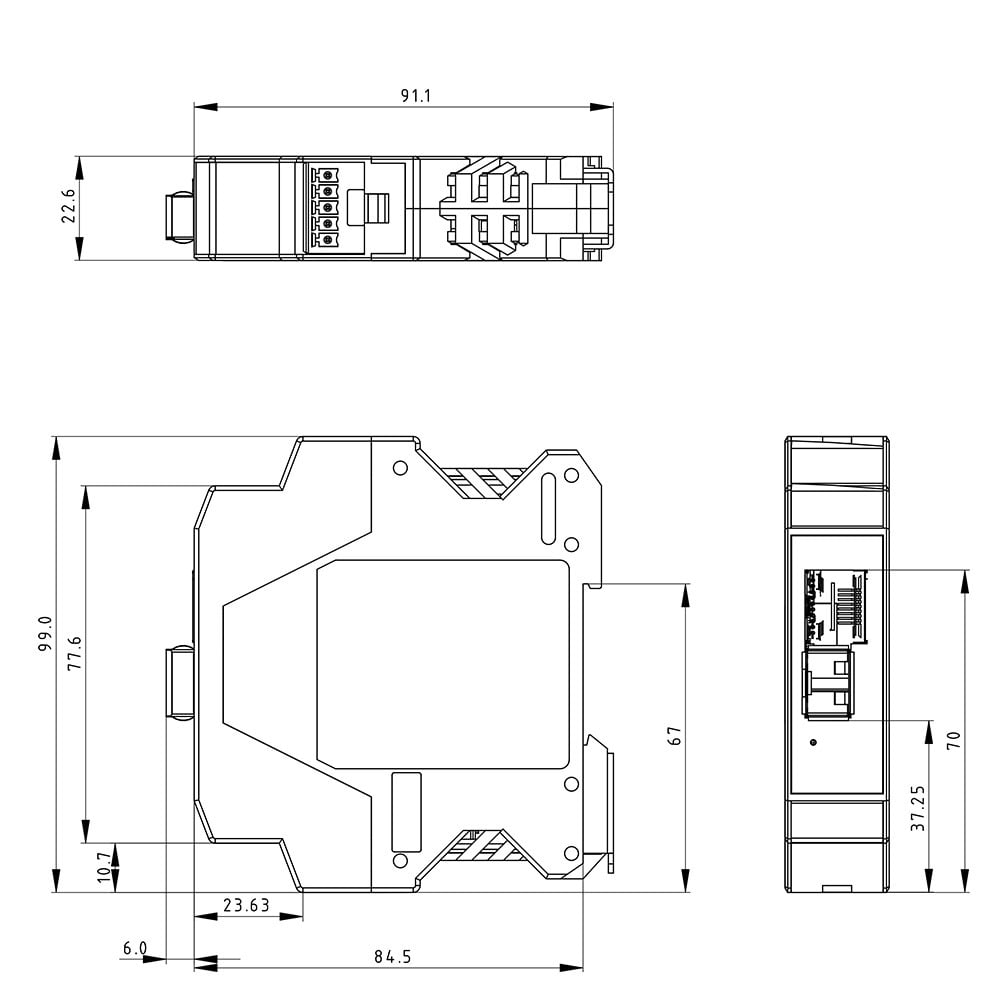

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 95 mm |
| Height | 22 mm |
| Weight | 90 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 187 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
| Harmonized System (HS) code | 851762 |
Other features
| Specification | Value |
|---|---|
| Form factor | DIN rail |
| MAC address table | 1000 entries |
