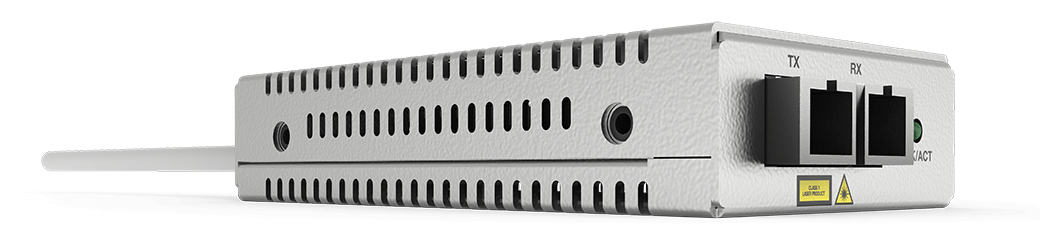

UMC2000/SC network media converter 1000 Mbit/s 850 nm Multi-mode Silver
Model UMC2000/SCPart no. AT-UMC2000/SC-901EAN 767035210667
30 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight170 g
- ColourSilver
- Wavelength850 nm
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 170 g
- Colour
- Silver
- Wavelength
- 850 nm
- Internal
- No
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- UMC2000/SC
- Part number
- AT-UMC2000/SC-901
- EAN / UPC
- 767035210667
- Also known as
- Allied Telesis UMC2000/SC network media converter 1000 Mbit/s 850 nm Multi-mode Silver
Specifications
30 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-TX |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE‑SX |
| Data transfer rate | 1000 Mbit/s |
| Jumbo frames support | Yes |
| VLAN support | Yes |
| Supported network protocols | Pv4 IP/ TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6 |
Performance
| Specification | Value |
|---|---|
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Link |
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54.9 mm |
| Depth | 101.6 mm |
| Height | 21.8 mm |
| Weight | 170 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Safety | UL60950-1, EN60950-1 |
| Certification | FCC Class A EN55022 EB55032 CISPR 22 Class A C-TICK VCCI |
