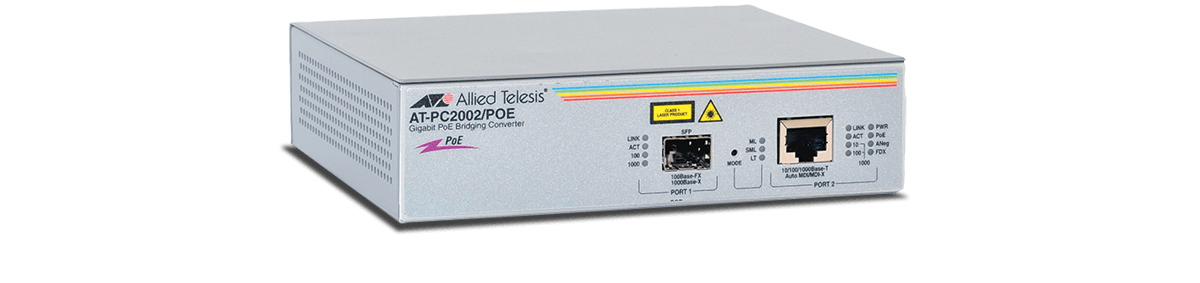

Allied Telesis PC2002POE network media converter 1000 Mbit/s 1310 nm Multi-mode Grey
Model PC2002POEPart no. AT-PC2002POE-50EAN 767035188423
42 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight748 g
- ColourGrey
- Wavelength1310 nm
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 748 g
- Colour
- Grey
- Wavelength
- 1310 nm
- Internal
- No
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- PC2002POE
- Part numbers
- AT-PC2002POE-50, AT-PC2002POE
- EAN / UPC
- 767035188423, 767035189826
- Also known as
- Allied Telesis PC2002POE network media converter 1000 Mbit/s 1310 nm Multi-mode Grey
Specifications
42 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10BASE-FL |
| Converter output interface | 100Base-FX, 1000Base-FX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE-FX |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Link Loss Return (LLR) supported | Yes |
Performance
| Specification | Value |
|---|---|
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Tx power (min) | -22.5 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -31.8 dBmW |
| Rx power (max) | -14 dBmW |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 25 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 15.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 131 mm |
| Height | 40 mm |
| Weight | 748 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, EN-55022, C-Tick, CE. |
What people say
Reviews & ratings
Allied Telesis PC2002POE network media converter 1000 Mbit/s 1310 nm Multi-mode Grey
No reviews yet
Be the first to tell others how Allied Telesis PC2002POE network media converter 1000 Mbit/s 1310 nm Multi-mode Grey works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis PC2002POE network media converter 1000 Mbit/s 1310 nm Multi-mode Grey
All network media converter comparisons- Allied Telesis PC2002POE network media converter 1000 Mbit/s 1310 nm Multi-mode Grey vsAllied Telesis AT-PC2002/POE-20 network media converter 1000 Mbit/s GreyCompare specs
- Allied Telesis PC2002POE network media converter 1000 Mbit/s 1310 nm Multi-mode Grey vsAllied Telesis MC102XLPCI network media converter Internal 100 Mbit/s 1310 nm Multi-mode GreenCompare specs
- Allied Telesis PC2002POE network media converter 1000 Mbit/s 1310 nm Multi-mode Grey vsAllied Telesis AT-CM3K0S network media converter 100 Mbit/sCompare specs

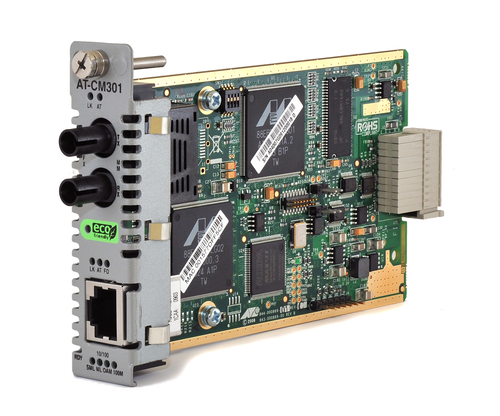

- Allied Telesis PC2002POE network media converter 1000 Mbit/s 1310 nm Multi-mode Grey vsAllied Telesis AT-CM301 network media converter 1000 Mbit/s 1310 nmCompare specs
