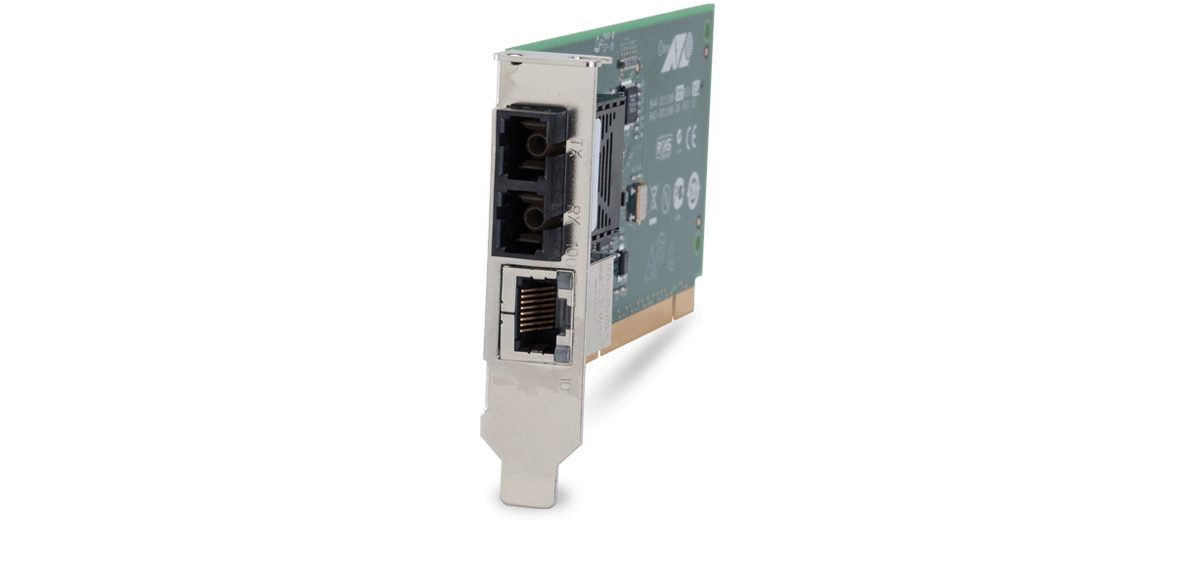

Allied Telesis MC102XLPCI network media converter Internal 100 Mbit/s 1310 nm Multi-mode Green
Model MC102XLPCIPart no. AT-MC102XLPCI-001EAN 767035195711
41 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight62 g
- ColourGreen
- Maximum transfer distance2000 m
- InternalYes
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 62 g
- Colour
- Green
- Maximum transfer distance
- 2000 m
- Internal
- Yes
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- MC102XLPCI
- Part number
- AT-MC102XLPCI-001
- EAN / UPC
- 767035195711
- Also known as
- Allied Telesis MC102XLPCI network media converter Internal 100 Mbit/s 1310 nm Multi-mode Green
Specifications
41 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Jumbo frames support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Tx power (min) | -19 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -31.8 dBmW |
| Rx power (max) | -14 dBmW |
| Sensitivity | -34.5 dBmW |
Features
| Specification | Value |
|---|---|
| Internal | Yes |
| LED indicators | Yes |
| Product colour | Green |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Input current | 0.45 A |
| Power consumption (typical) | 1.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Height | 64 mm |
| Weight | 62 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Safety | UL-Cul, CSA/CSA, NRTL, TUV, CE |
| Certification | FCC Class B |
