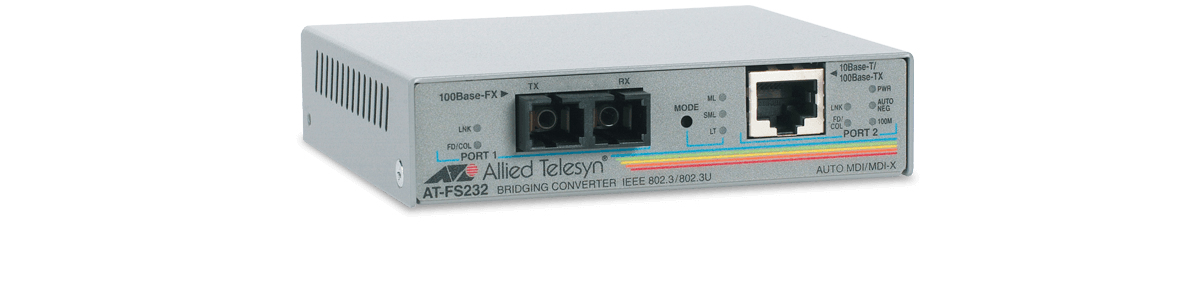

FS232 network media converter 100 Mbit/s Multi-mode Grey
Model FS232Part no. AT-FS232/SC
36 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight294 g
- ColourGrey
- Maximum transfer distance2000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 294 g
- Colour
- Grey
- Maximum transfer distance
- 2000 m
- Internal
- No
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- FS232
- Part number
- AT-FS232/SC
- Also known as
- Allied Telesis FS232 network media converter 100 Mbit/s Multi-mode Grey
Specifications
36 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX |
| Converter output interface | 100Base-FX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Data transfer rate | 100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Fiber mode structure | Multi-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| DIN rail mounting | Yes |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 95 mm |
| Height | 25 mm |
| Weight | 294 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
