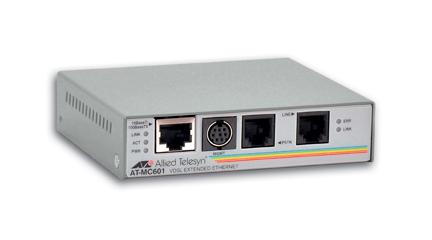

Extended EthernetTM over VDSL, Subscriber Unit
Model Extended EthernetTM over VDSL, Subscriber UnitPart no. AT-MC601-YY
15 specifications
- Speed11 Mbit/s
- Weight300 g
- Maximum transfer distance1200 m
- Plug and PlayYes
- Power consumption (typical)6 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 11 Mbit/s
- Weight
- 300 g
- Maximum transfer distance
- 1200 m
- Plug and Play
- Yes
- Power consumption (typical)
- 6 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- Extended EthernetTM over VDSL, Subscriber Unit
- Part number
- AT-MC601-YY
- Also known as
- Allied Telesis Extended EthernetTM over VDSL, Subscriber Unit network media converter 11 Mbit/s
Specifications
15 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 11 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 1200 m |
| Mean time between failures (MTBF) | 700000 h |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 300 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 FCC Class B CSA EN 55022 Class B EN 60950 (TUV) EN 50082-1 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 95 x 109 x 25 mm |
| Full duplex | Yes |
| Power requirements | 120-240VAC@50/60Hz; 12VDC@0.5A |
