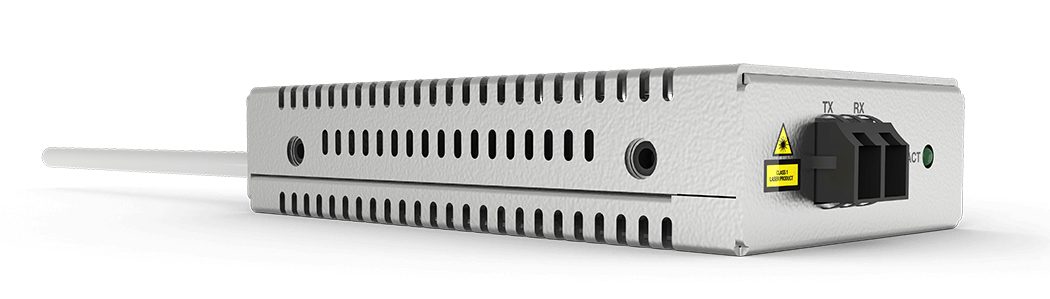

AT-UMC2000/LC-901 network media converter 1000 Mbit/s 850 nm Multi-mode Grey
Model AT-UMC2000/LC-901EAN 767035210650
28 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight170 g
- ColourGrey
- Maximum transfer distance500 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 170 g
- Colour
- Grey
- Maximum transfer distance
- 500 m
- Internal
- No
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-UMC2000/LC-901
- Part number
- AT-UMC2000/LC-901
- EAN / UPC
- 767035210650, 767035210674
- Also known as
- Allied Telesis AT-UMC2000/LC-901 network media converter 1000 Mbit/s 850 nm Multi-mode Grey
Specifications
28 specifications in 6 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.1Q, IEEE 802.1p |
| Ethernet interface type | Gigabit Ethernet |
| Data transfer rate | 1000 Mbit/s |
| Jumbo frames support | Yes |
| VLAN support | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Fiber optic connector | LC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54.9 mm |
| Depth | 101.6 mm |
| Height | 21.8 mm |
| Weight | 170 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
