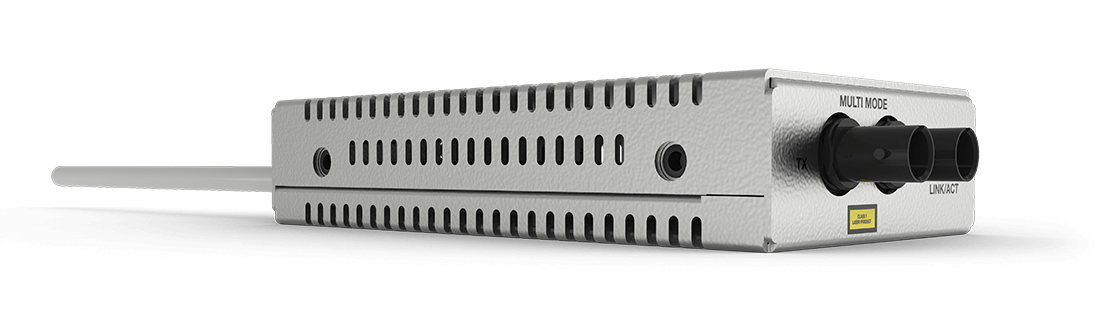

AT-UMC200/ST-901 network media converter 100 Mbit/s 1310 nm Multi-mode Grey
Model AT-UMC200/ST-901EAN 767035212593
28 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight170 g
- ColourGrey
- Maximum transfer distance2000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 170 g
- Colour
- Grey
- Maximum transfer distance
- 2000 m
- Internal
- No
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-UMC200/ST-901
- Part number
- AT-UMC200/ST-901
- EAN / UPC
- 767035212593
- Also known as
- Allied Telesis AT-UMC200/ST-901 network media converter 100 Mbit/s 1310 nm Multi-mode Grey
Specifications
28 specifications in 6 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter output interface | 100Base-SX |
| Networking standards | IEEE 802.1Q, IEEE 802.1p |
| Ethernet interface type | Fast Ethernet |
| Data transfer rate | 100 Mbit/s |
| Jumbo frames support | Yes |
| VLAN support | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -20 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32 dBmW |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Fiber optic connector | ST |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54.9 mm |
| Depth | 101.6 mm |
| Height | 21.8 mm |
| Weight | 170 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
