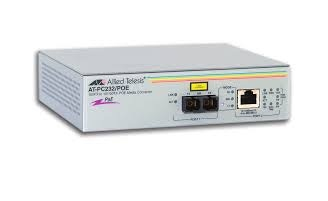

Allied Telesis AT-PC232/POE-50 network media converter 100 Mbit/s 1310 nm Grey
Model AT-PC232/POE-50EAN 767035196152
30 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight748 g
- ColourGrey
- Maximum transfer distance2000 m
- InternalNo
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 748 g
- Colour
- Grey
- Maximum transfer distance
- 2000 m
- Internal
- No
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-PC232/POE-50
- Part number
- AT-PC232/POE-50
- EAN / UPC
- 767035196152
- Also known as
- Allied Telesis AT-PC232/POE-50 network media converter 100 Mbit/s 1310 nm Grey
Specifications
30 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-T, 100BASE-FX, 100Base-TX |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power over Ethernet (PoE) ports quantity | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 25 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 15.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 131 mm |
| Height | 40 mm |
| Weight | 748 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, EN5502, C-Tic, CE |
