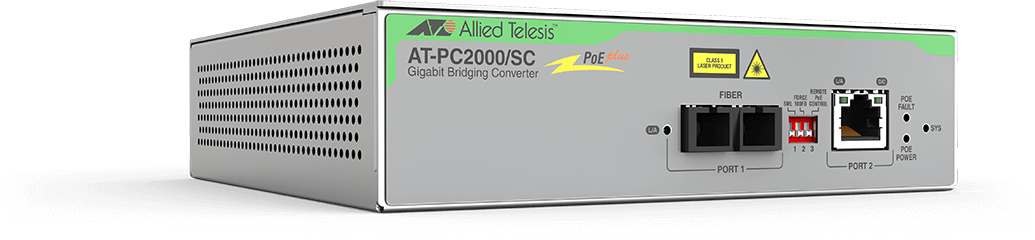

AT-PC2000/SC-60 network media converter 1000 Mbit/s 850 nm Grey
Model AT-PC2000/SC-60Part no. 990-005117-60EAN 767035212050
31 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight748 g
- ColourGrey
- Maximum transfer distance100 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 748 g
- Colour
- Grey
- Maximum transfer distance
- 100 m
- Internal
- No
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-PC2000/SC-60
- Part number
- 990-005117-60
- EAN / UPC
- 767035212050
- Also known as
- Allied Telesis AT-PC2000/SC-60 network media converter 1000 Mbit/s 850 nm Grey
Specifications
31 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Link, Network, PoE |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 30 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 35 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 149 mm |
| Height | 40 mm |
| Weight | 748 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B EN55022 Class A C-Tick CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
