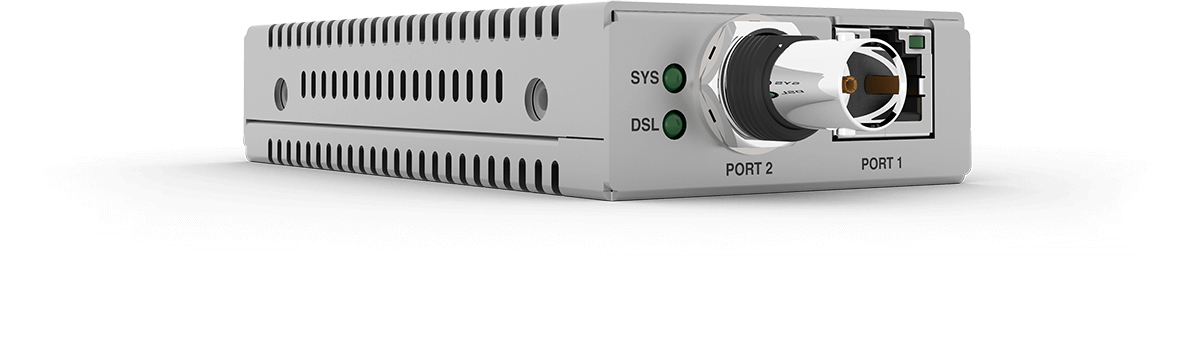

AT-MMC6006 network media converter 1000 Mbit/s Grey
Model AT-MMC6006
33 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight200 g
- ColourGrey
- Maximum transfer distance3000 m
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 200 g
- Colour
- Grey
- Maximum transfer distance
- 3000 m
- Internal
- No
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-MMC6006
- Part number
- AT-MMC6006
- Also known as
- Allied Telesis AT-MMC6006 network media converter 1000 Mbit/s Grey
Specifications
33 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Modulation | DMT |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 3000 m |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |
| LED indicators | Activity, LAN, Link, System |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| BNC ports quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 240 V |
| AC input frequency | 50 Hz |
| Output voltage | 12 V |
| Output current | 0.3 A |
| Power consumption (typical) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.8 mm |
| Depth | 99.1 mm |
| Height | 20.3 mm |
| Weight | 200 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 CSA EN 55022 class B EN 60950 (TUV) EN 50082-1 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
