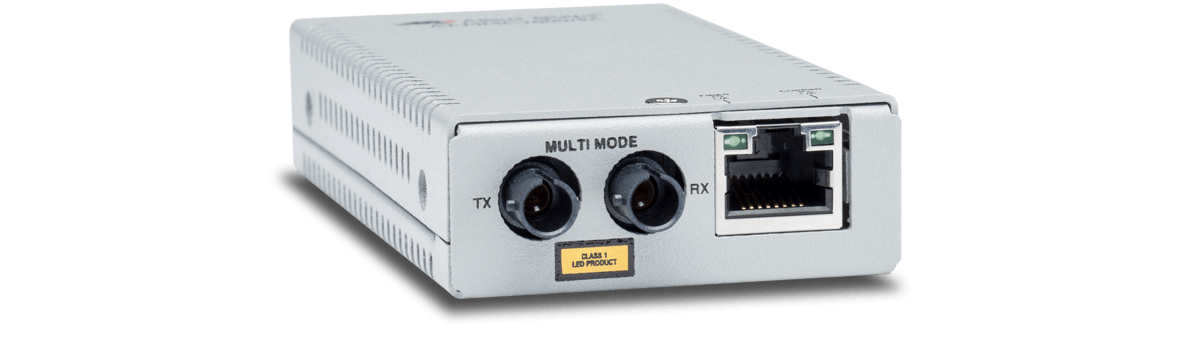

Allied Telesis AT-MMC2000/ST-90 network media converter 1000 Mbit/s 850 nm Multi-mode
Model AT-MMC2000/ST-90
38 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight170 g
- Maximum transfer distance500 m
- InternalNo
- Input voltage12 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 170 g
- Maximum transfer distance
- 500 m
- Internal
- No
- Input voltage
- 12 V
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-MMC2000/ST-90
- Part number
- AT-MMC2000/ST-90
- Also known as
- Allied Telesis AT-MMC2000/ST-90 network media converter 1000 Mbit/s 850 nm Multi-mode
Specifications
38 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Rx power (max) | -3 dBmW |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | LAN, Power, System |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | ST |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 549 mm |
| Depth | 101.6 mm |
| Height | 21.8 mm |
| Weight | 170 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Safety | UL60950-1, EN60950-1 |
| Certification | FCC A, EN55022 A, CISPR 22 A, C-TICK, VCCI |
