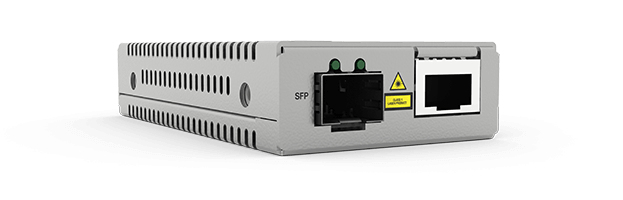

AT-MMC10GT/SP-960 network media converter Internal 10000 Mbit/s
Model AT-MMC10GT/SP-960Part no. 990-007022-960EAN 767035217833
25 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight170 g
- Maximum transfer distance100 m
- InternalYes
- Input voltage12 V
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 170 g
- Maximum transfer distance
- 100 m
- Internal
- Yes
- Input voltage
- 12 V
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-MMC10GT/SP-960
- Part number
- 990-007022-960
- EAN / UPC
- 767035217833, 5704174405450, 7670352178332
- Also known as
- Allied Telesis AT-MMC10GT/SP-960 network media converter Internal 10000 Mbit/s
Specifications
25 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| VLAN support | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 100 m |
Features
| Specification | Value |
|---|---|
| Internal | Yes |
| LED indicators | Activity, Link, Speed |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 0.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 101.6 mm |
| Height | 21.8 mm |
| Weight | 170 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Safety | UL60950-1, EN60950-1 |
| Certification | FCC Class A EN55022 Class A CISPR 22 Class A C-TICK VCCI |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
