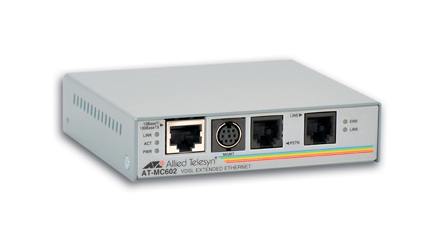

AT-MC602 network media converter 100 Mbit/s
Model AT-MC602Part no. AT-MC602-30
20 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight300 g
- Maximum transfer distance1200 m
- Plug and PlayYes
- Power consumption (typical)6 W
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 300 g
- Maximum transfer distance
- 1200 m
- Plug and Play
- Yes
- Power consumption (typical)
- 6 W
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-MC602
- Part numbers
- AT-MC602-30, AT-MC602-60
- Also known as
- Allied Telesis AT-MC602 network media converter 100 Mbit/s
Specifications
20 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Cabling technology | 10/100TX |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 1200 m |
| Mean time between failures (MTBF) | 700000 h |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| LED indicators | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 300 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3480 m |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950, FCC B CSA, EN 55022 B, EN 60950 (TUV), EN 50082-1 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 109 x 95 x 25 mm |
| Full duplex | Yes |
| Interface | RJ-45, RJ-11 |
| Power requirements | 240VAC, 50Hz |
| I/O ports | 2xRJ11, 1xRJ45 |
