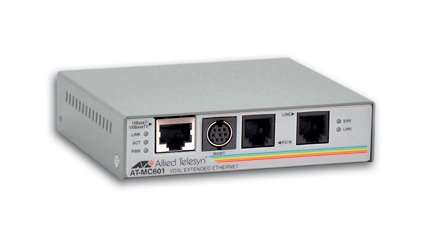

AT-MC601 network media converter 11 Mbit/s
Model AT-MC601Part no. AT-MC601-30EAN 767035150406
14 specifications
- Speed11 Mbit/s
- ConnectivityRJ-11, RJ-45
- Weight300 g
- Maximum transfer distance1200 m
- Plug and PlayYes
- Power consumption (typical)6 W
Overview
- Speed
- 11 Mbit/s
- Connectivity
- RJ-11, RJ-45
- Weight
- 300 g
- Maximum transfer distance
- 1200 m
- Plug and Play
- Yes
- Power consumption (typical)
- 6 W
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-MC601
- Part numbers
- AT-MC601-30, AT-MC601-60
- EAN / UPC
- 767035150406
- Also known as
- Allied Telesis AT-MC601 network media converter 11 Mbit/s
Specifications
14 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 11 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 1200 m |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 300 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950, FCC B, CSA, EN 55022 B, EN 60950 (TUV), EN 50082-1 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 95 x 109 x 25 mm |
| Interface | RJ-11, RJ-45 |
| Power requirements | 120V AC, 60Hz / 240V AC, 50Hz |
