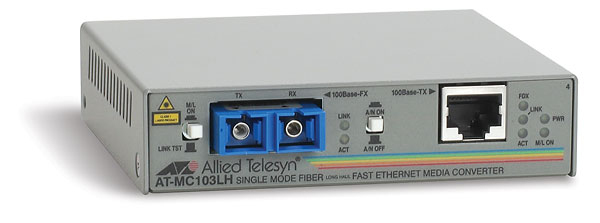

AT-MC103LH network media converter 100 Mbit/s 1610 nm
Model AT-MC103LHPart no. AT-MC103LH-60EAN 767035192635
16 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight294 g
- Maximum transfer distance15000 m
- Hot-swapYes
- Power consumption (typical)6 W
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 294 g
- Maximum transfer distance
- 15000 m
- Hot-swap
- Yes
- Power consumption (typical)
- 6 W
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-MC103LH
- Part numbers
- AT-MC103LH-60, AT-MC103LH-10
- EAN / UPC
- 767035192635, 767035125299, 7670351252996, 7670351926354
- Also known as
- Allied Telesis AT-MC103LH network media converter 100 Mbit/s 1610 nm
Specifications
16 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Cabling technology | 100FX/100TX |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 15000 m |
| Wavelength | 1610 nm |
Features
| Specification | Value |
|---|---|
| Hot-swap | Yes |
| Plug and Play | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 294 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Other features
| Specification | Value |
|---|---|
| Connector(s) | SC |
| Dimensions (WxDxH) | 105 x 95 x 25 mm |
| Power requirements | 120V AC, 60Hz / 240V AC, 50Hz |
