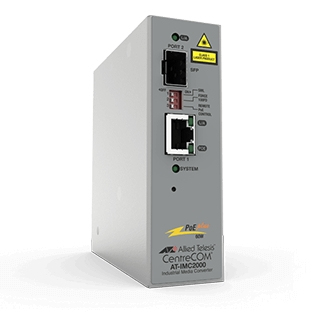

AT-IMC2000TP/SP-980 network media converter 1000 Mbit/s 850 nm Grey
Model AT-IMC2000TP/SP-980Part no. 990-005565-980EAN 767035210599
43 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight748 g
- ColourGrey
- Wavelength850 nm
- InternalNo
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 748 g
- Colour
- Grey
- Wavelength
- 850 nm
- Internal
- No
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-IMC2000TP/SP-980
- Part number
- 990-005565-980
- EAN / UPC
- 767035210599
- Also known as
- Allied Telesis AT-IMC2000TP/SP-980 network media converter 1000 Mbit/s 850 nm Grey
Specifications
43 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
| Converter output interface | 100Base-X, 1000Base-X |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Wavelength | 850 nm |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Rx power (max) | -3 dBmW |
Features
| Specification | Value |
|---|---|
| Internal | No |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Input voltage | 51 - 57 V |
| Power over Ethernet (PoE) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 111 mm |
| Depth | 96 mm |
| Height | 35 mm |
| Weight | 748 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Safety | UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark) |
| Certification | TAA EMI/Emission & Stability FCC Class A EN55024 (immunity standard) EN55032 Class A EN55035 VCCI Class A |
