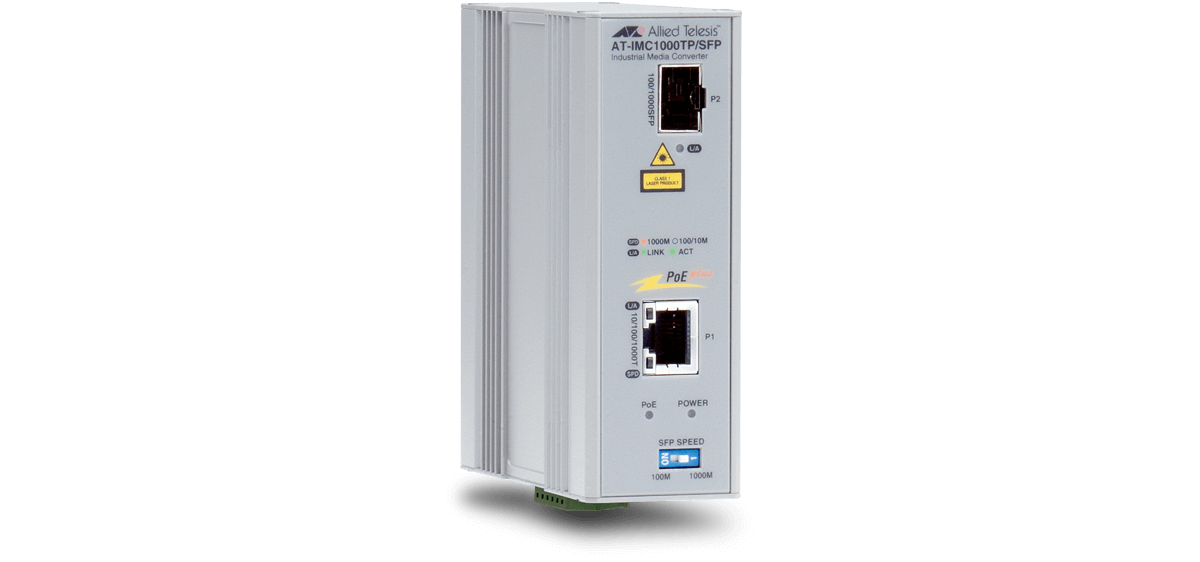

AT-IMC1000TP/SFP-80 network media converter 1000 Mbit/s 1310 nm Grey
Model AT-IMC1000TP/SFP-80Part no. 990-003869-80EAN 662705404332
35 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight500 g
- ColourGrey
- Wavelength1310 nm
- DIN rail mountingYes
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 500 g
- Colour
- Grey
- Wavelength
- 1310 nm
- DIN rail mounting
- Yes
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-IMC1000TP/SFP-80
- Part number
- 990-003869-80
- EAN / UPC
- 662705404332, 767035199887, 7670351998870
- Also known as
- Allied Telesis AT-IMC1000TP/SFP-80 network media converter 1000 Mbit/s 1310 nm Grey
Specifications
35 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 1000Base-T |
| Converter output interface | 100Base-X, 1000Base-X |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-TX |
| Jumbo frames support | Yes |
| VLAN support | Yes |
| Stacked VLAN | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Wavelength | 1310 nm |
Features
| Specification | Value |
|---|---|
| DIN rail mounting | Yes |
| Housing material | Metal |
| International Protection (IP) code | IP31 |
| LED indicators | Activity, Link, PoE, Power |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 32.73 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 36 mm |
| Depth | 95 mm |
| Height | 108 mm |
| Weight | 500 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
