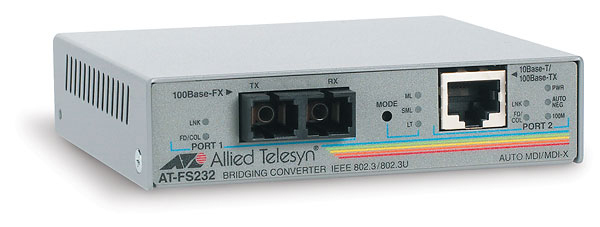

Allied Telesis AT-FS232SC/1 network media converter 100 Mbit/s
Model AT-FS232SC/1Part no. AT-FS232SC/1-60
20 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight318 g
- Maximum transfer distance15000 m
- Hot-swapYes
- Power consumption (typical)6 W
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 318 g
- Maximum transfer distance
- 15000 m
- Hot-swap
- Yes
- Power consumption (typical)
- 6 W
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-FS232SC/1
- Part number
- AT-FS232SC/1-60
- Also known as
- Allied Telesis AT-FS232SC/1 network media converter 100 Mbit/s
Specifications
20 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Cabling technology | 10/100TX/100FX |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 15000 m |
Features
| Specification | Value |
|---|---|
| Hot-swap | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 318 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Safety | UL-Cul, CSA/CSA, NRTL, TUV, CE |
| Certification | FCC A |
Other features
| Specification | Value |
|---|---|
| Connector(s) | SC |
| Dimensions (WxDxH) | 105 x 95 x 25 mm |
| Full duplex | Yes |
| MAC address table | 2048 entries |
| Power requirements | 100-120V AC/60Hz, 220-240V AC/50Hz |
