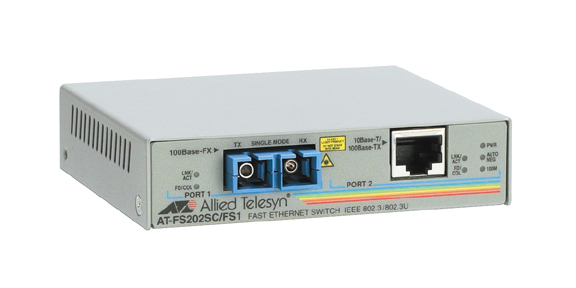

AT-FS202 network media converter 100 Mbit/s
Model AT-FS202Part no. AT-FS202-30EAN 7670351927108
12 specifications
- Speed100 Mbit/s
- Weight320 g
- Maximum transfer distance100000 m
- Power consumption (typical)6 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 100 Mbit/s
- Weight
- 320 g
- Maximum transfer distance
- 100000 m
- Power consumption (typical)
- 6 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-FS202
- Part numbers
- AT-FS202-30, AT-FS202-90, AT-FS202-60
- EAN / UPC
- 7670351927108, 7670351518238, 5052217063786
- Also known as
- Allied Telesis AT-FS202 network media converter 100 Mbit/s
Specifications
12 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 100000 m |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 320 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Safety | UL-Cul, CSA/CSA, NRTL, TUV, CE |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 105 x 95 x 25 mm |
| Power requirements | 100-120V AC/60Hz, 220-240V AC/50Hz |
| I/O ports | 1x 100TX (RJ-45) 1x 100FX (SC) |
