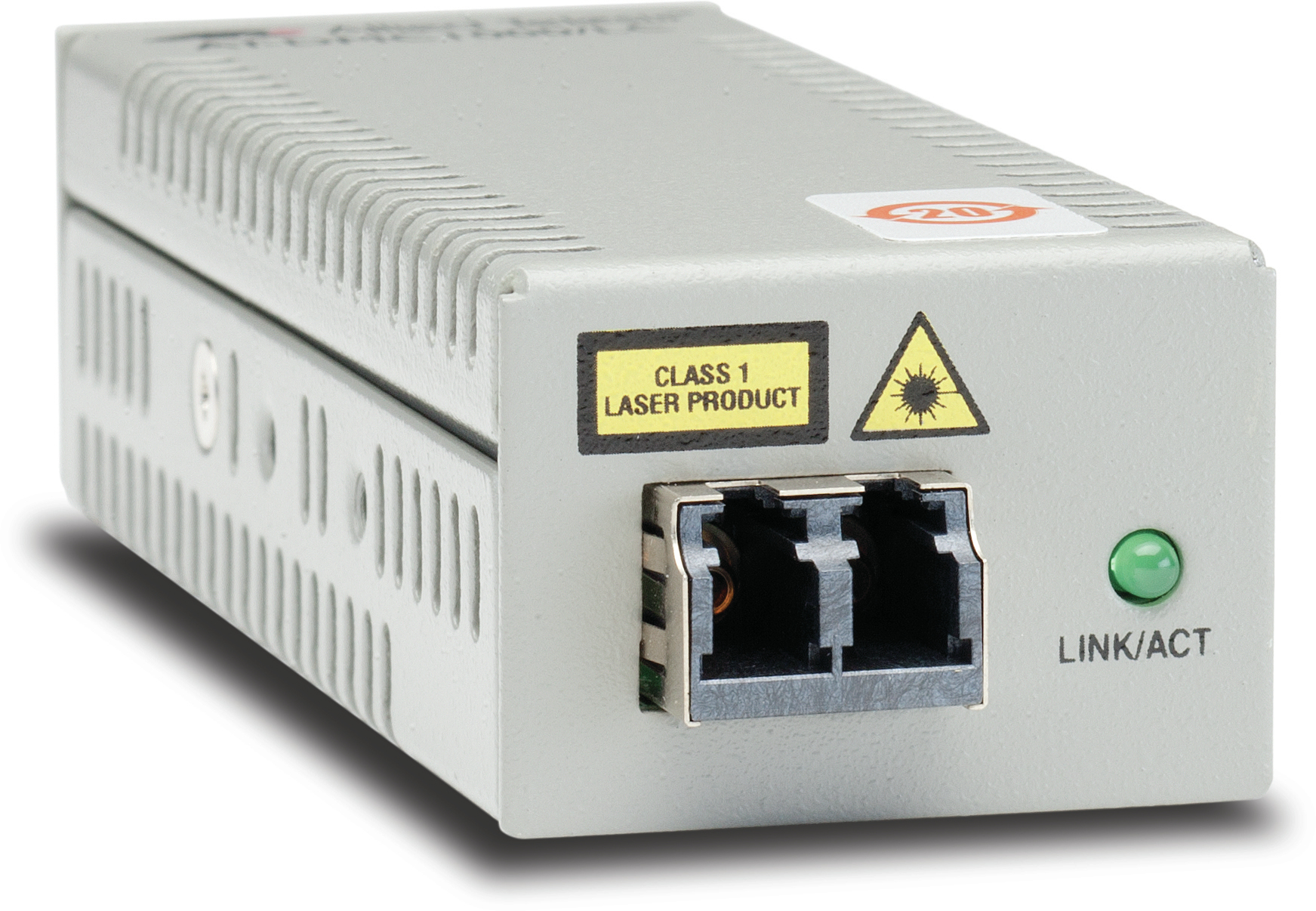

AT-DMC1000/LC network media converter 1000 Mbit/s 850 nm Multi-mode Grey
Model AT-DMC1000/LCPart no. 990-004841-00EAN 767035207216
32 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourGrey
- Maximum transfer distance500 m
- InternalNo
- Output voltage5 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Grey
- Maximum transfer distance
- 500 m
- Internal
- No
- Output voltage
- 5 V
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-DMC1000/LC
- Part number
- 990-004841-00
- EAN / UPC
- 767035207216
- Also known as
- Allied Telesis AT-DMC1000/LC network media converter 1000 Mbit/s 850 nm Multi-mode Grey
Specifications
32 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | LC |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 31.8 mm |
| Depth | 91.4 mm |
| Height | 21.6 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Safety | UL60950-1, EN60950-1 |
