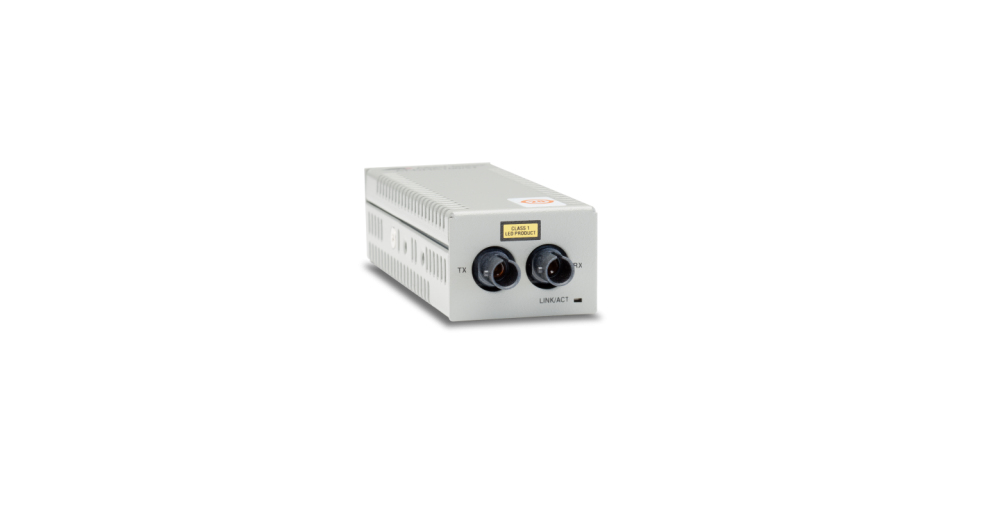

Allied Telesis AT-DMC100/ST-50 network media converter 100 Mbit/s 1310 nm Multi-mode
Model AT-DMC100/ST-50Part no. 990-004824-50EAN 767035206653
28 specifications
- Speed100 Mbit/s
- Weight113.39 g
- Maximum transfer distance2000 m
- InternalNo
- Fiber optic connectorST
- Width31.8 mm
Overview
- Speed
- 100 Mbit/s
- Weight
- 113.39 g
- Maximum transfer distance
- 2000 m
- Internal
- No
- Fiber optic connector
- ST
- Width
- 31.8 mm
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- AT-DMC100/ST-50
- Part number
- 990-004824-50
- EAN / UPC
- 767035206653
- Also known as
- Allied Telesis AT-DMC100/ST-50 network media converter 100 Mbit/s 1310 nm Multi-mode
Specifications
28 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 100Base-TX |
| Converter output interface | 100Base-FX |
| Ethernet LAN data rates | 100 Mbit/s |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Duplex system | Full, Half |
| Cable types supported | Fiber |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Fiber optic connector | ST |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 31.8 mm |
| Depth | 91.4 mm |
| Height | 21.6 mm |
| Weight | 113.39 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
