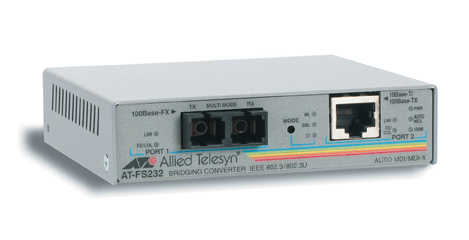

Allied Telesis 2 port Fast Ethernet switch media converter 10/100TX to 100FX (SC)
Model 2 port Fast Ethernet switch media converter 10/100TX to 100FX (SC)Part no. AT-FS232-YY
14 specifications
- Speed100 Mbit/s
- Maximum transfer distance2000 m
- Power consumption (typical)6 W
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 100 Mbit/s
- Maximum transfer distance
- 2000 m
- Power consumption (typical)
- 6 W
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- 2 port Fast Ethernet switch media converter 10/100TX to 100FX (SC)
- Part number
- AT-FS232-YY
- Also known as
- Allied Telesis 2 port Fast Ethernet switch media converter 10/100TX to 100FX (SC) network media converter 100 Mbit/s
Specifications
14 specifications in 6 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Safety | UL-Cul,CSA/CSA, NRTL,TUV,CE |
Other features
| Specification | Value |
|---|---|
| Connector(s) | SC |
| Dimensions (WxDxH) | 105 x 95 x 25 mm |
| Full duplex | Yes |
| Packet transfer speed | 14880/148880 pps |
| Power requirements | 0.5A; 100-120V AC/60Hz; 220-240V AC/50Hz; 12vDC +/- 5% |
| I/O ports | 1x 10/100TX (RJ-45) 1x 100FX (SC) |
