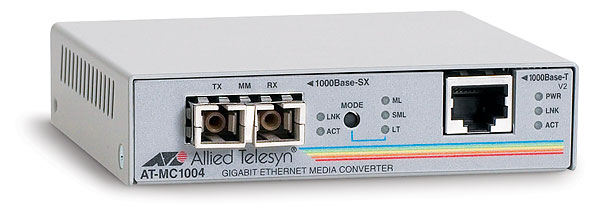

Allied Telesis 1000T Gigabit Ethernet to 1000SX (SC) standalone media converter
Model 1000T Gigabit Ethernet to 1000SX (SC) standalone media converterPart no. AT-MC1004-YY
16 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight294 g
- Wavelength850 nm
- Hot-swapYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 294 g
- Wavelength
- 850 nm
- Hot-swap
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Allied Telesis
- Category
- Network Media Converter
- Model
- 1000T Gigabit Ethernet to 1000SX (SC) standalone media converter
- Part number
- AT-MC1004-YY
- Also known as
- Allied Telesis 1000T Gigabit Ethernet to 1000SX (SC) standalone media converter network media converter 1000 Mbit/s 850 nm
Specifications
16 specifications in 8 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Cabling technology | 1000T, 1000SX |
Performance
| Specification | Value |
|---|---|
| Wavelength | 850 nm |
Features
| Specification | Value |
|---|---|
| Hot-swap | Yes |
| Plug and Play | Yes |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 294 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Safety | UL-Cul,CSA/CSA, NRTL,TUV, CE |
| Certification | EMI/RFI FCC Class A, EN 55022 Class A VCCI Class A, C-TICK |
Other features
| Specification | Value |
|---|---|
| Data link protocols | Gigabit Ethernet |
| Connector(s) | SC |
| Dimensions (WxDxH) | 105 x 95 x 25 mm |
