10G Ethernet Media Converter
Model AC4455EAN 8716065517903
29 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight205 g
- ColourBlack
- Fiber mode structureMulti-mode, Single-mode
- InternalNo
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 205 g
- Colour
- Black
- Fiber mode structure
- Multi-mode, Single-mode
- Internal
- No
- Brand
- ACT
- Category
- Network Media Converter
- Model
- AC4455
- Part number
- AC4455
- EAN / UPC
- 8716065517903
- Also known as
- ACT 10G Ethernet Media Converter
Specifications
29 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Converter output interface | 10GBASE-R |
| Networking standards | IEEE 802.3ab |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Fiber ethernet cabling technology | 10GBASE-R |
| Auto-negotiation | Yes |
| Link Fault Pass-through (LFP) | Yes |
Performance
| Specification | Value |
|---|---|
| Fiber mode structure | Multi-mode, Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Housing material | Metal |

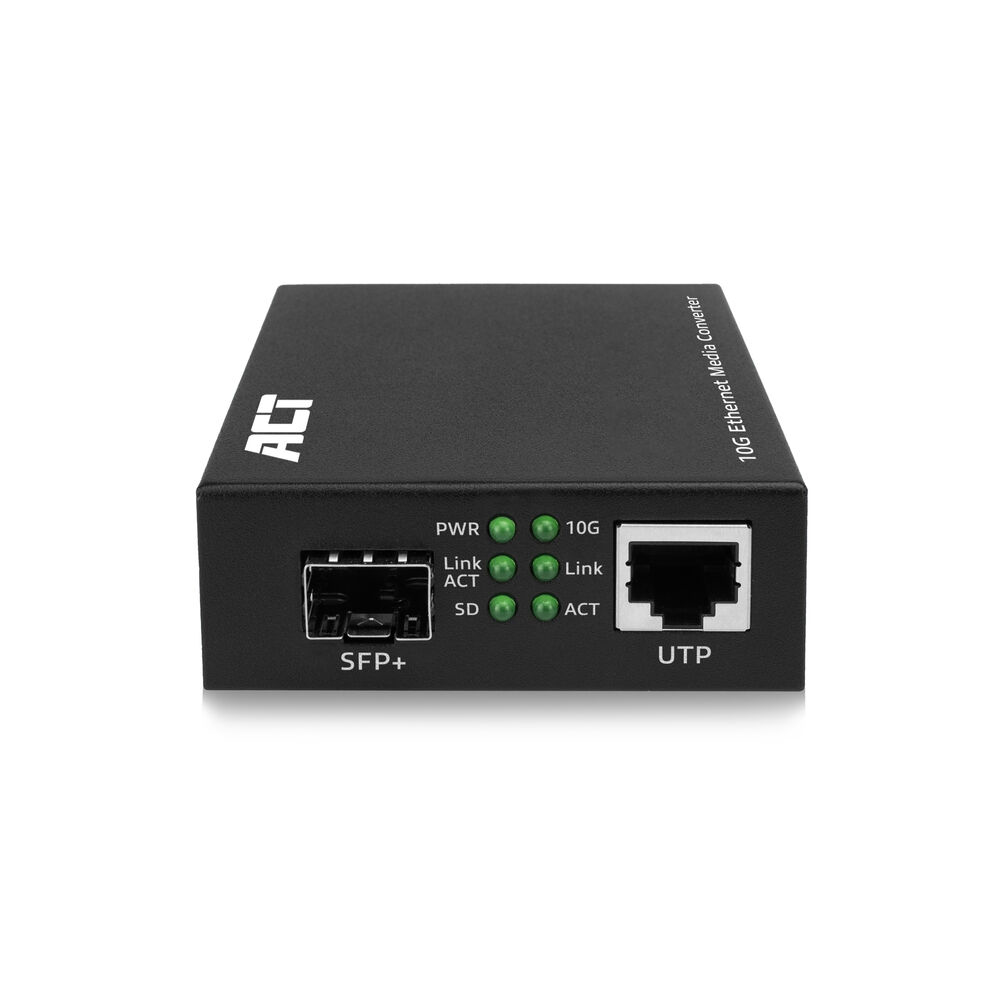

| LED indicators | Activity, Link, Power, Speed |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |

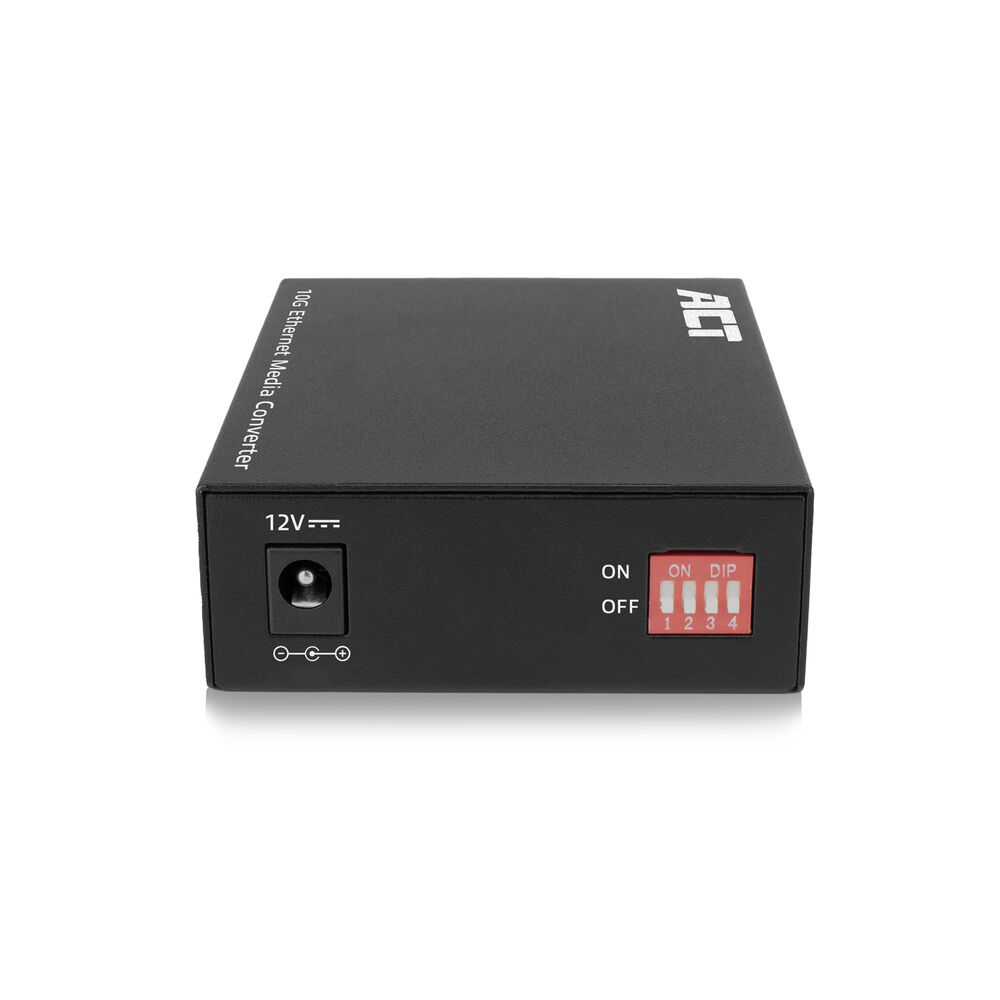

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 V |
| Input current | 1 A |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 98 mm |
| Height | 26 mm |
| Weight | 205 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
