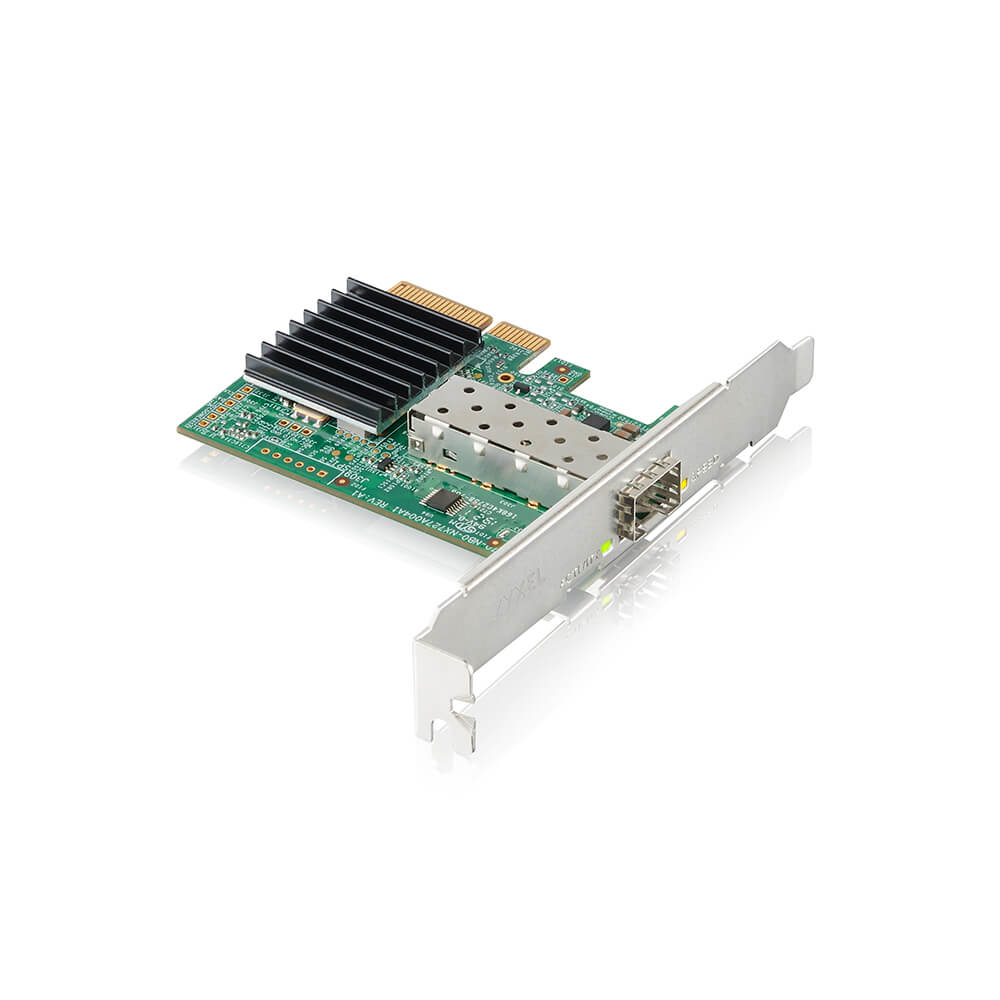

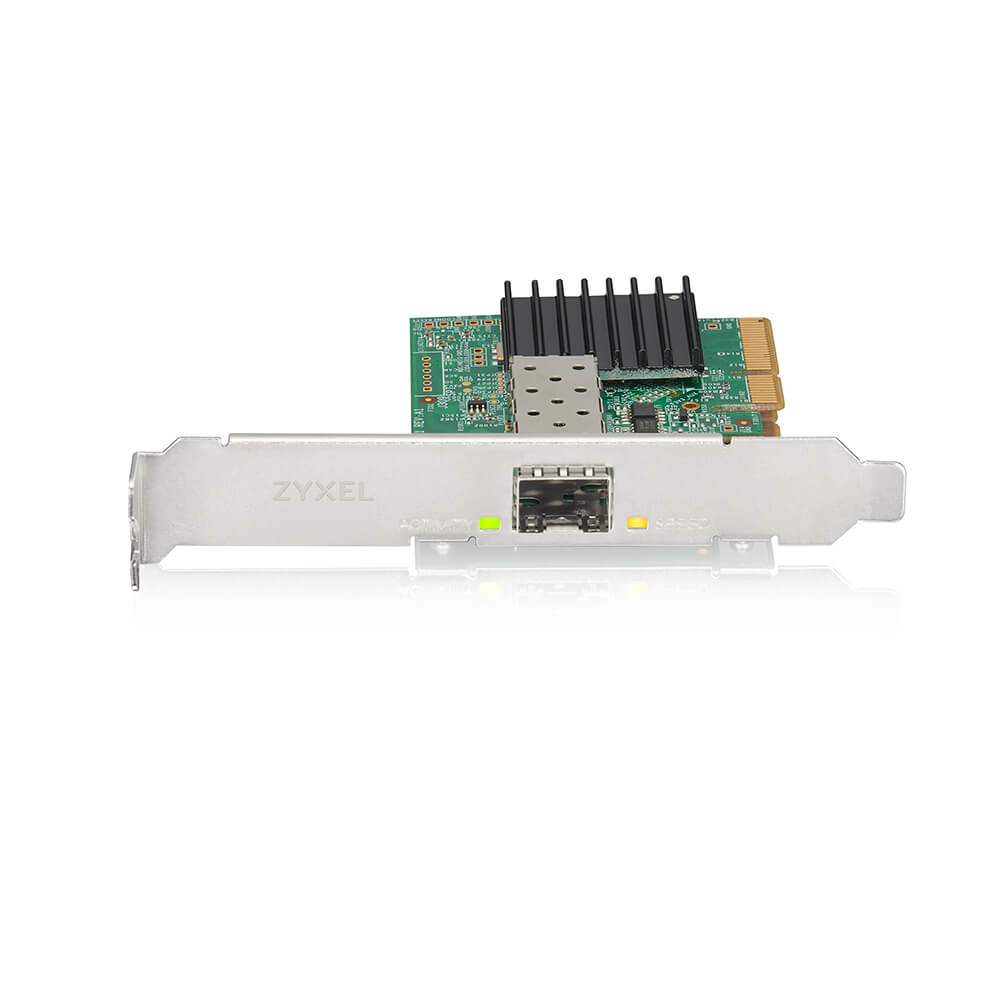

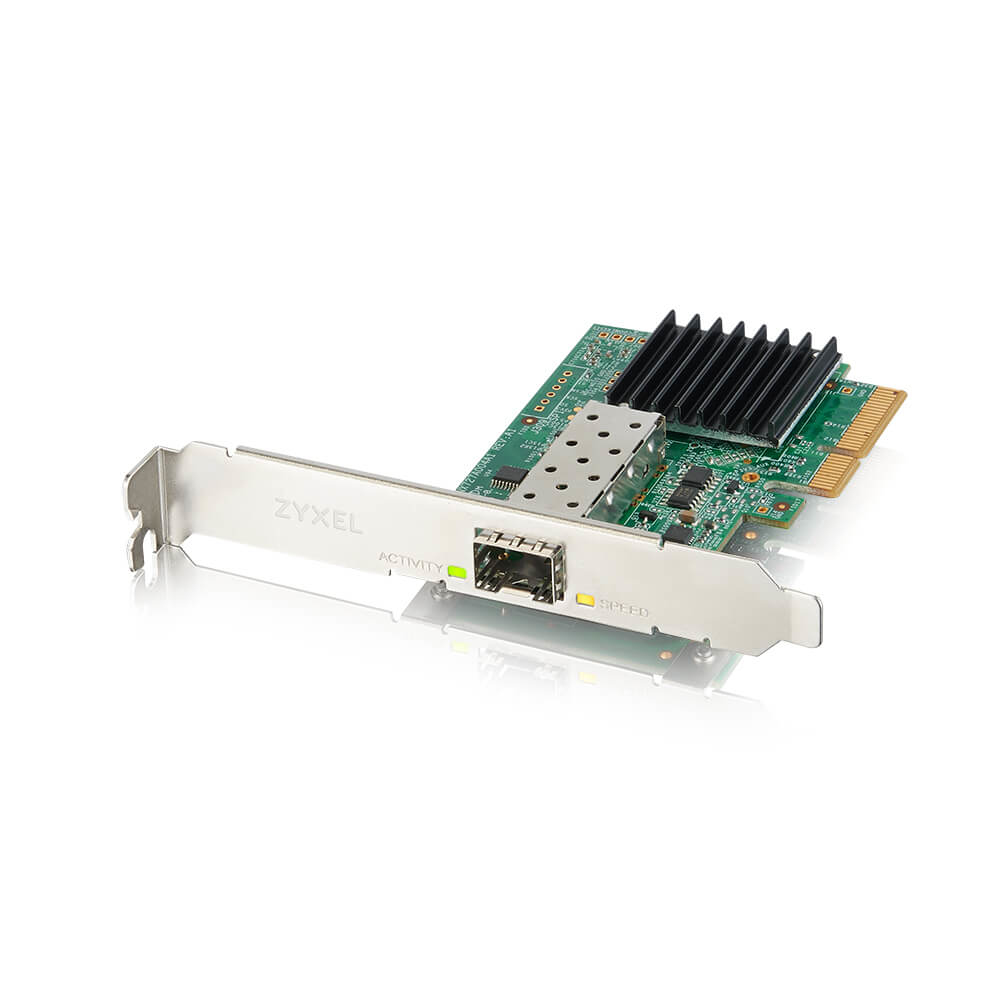

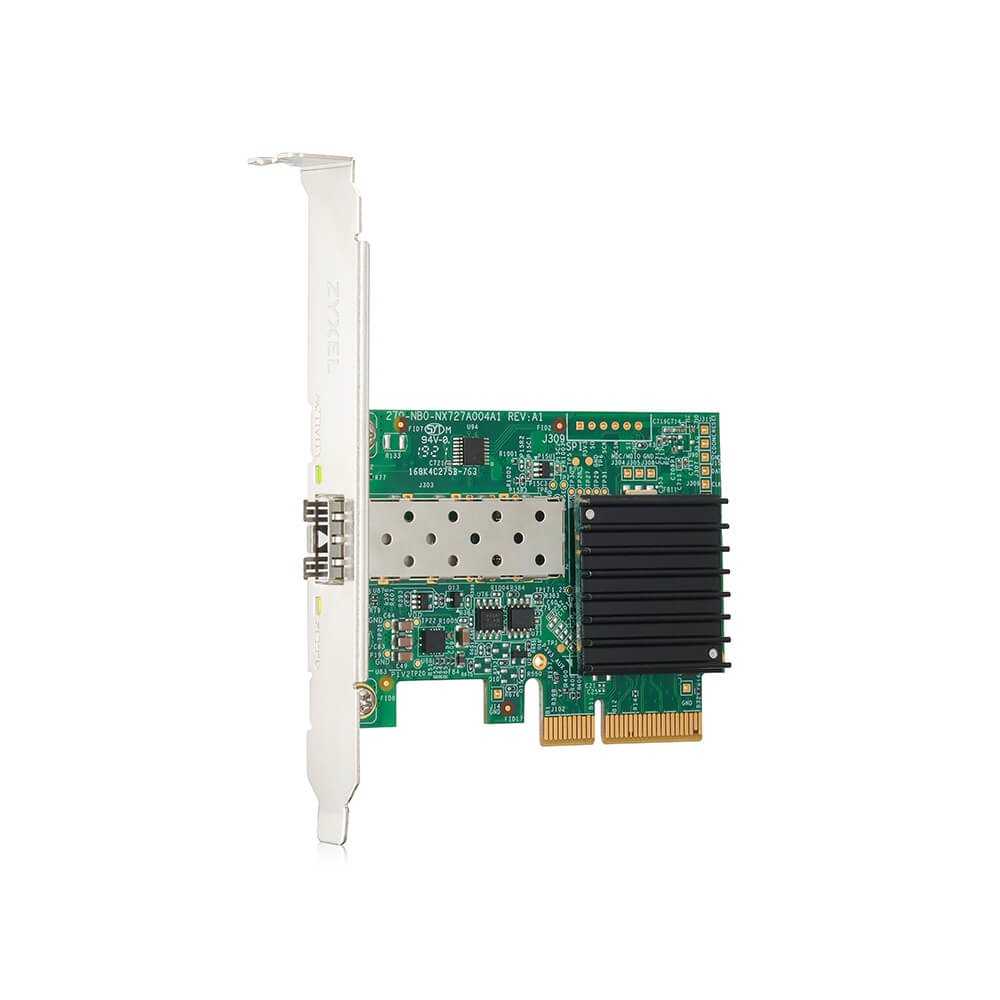

Zyxel XGN100F Internal Fiber 10000 Mbit/s

XGN100F Internal Fiber 10000 Mbit/s

Model XGN100FPart no. XGN100F-ZZ0101FEAN 760559127329

31 specifications

Speed10000 Mbit/s
ConnectivityWired
Weight49 g
InternalYes
Operating temperature (T-T)0 - 40 °C
Width82 mm

See all specifications

Overview

Speed: 10000 Mbit/s
Connectivity: Wired
Weight: 49 g
Internal: Yes
Operating temperature (T-T): 0 - 40 °C
Width: 82 mm

Brand: Zyxel
Category: Network Card
Model: XGN100F
Part number: XGN100F-ZZ0101F
EAN / UPC: 760559127329, 4718937613120
Also known as: Zyxel XGN100F Internal Fiber 10000 Mbit/s

Specifications

31 specifications in 10 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber optic connector	SFP+
Fiber ports quantity	1

Network

Specification	Value
Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3ae

Design

Specification	Value
Internal	Yes
Component for	PC
LED indicators	Yes
Country of origin	China
Certification	CE, FCC, EAC, BSMI

System requirements

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	82 mm
Depth	62 mm
Height	18 mm
Weight	49 g

Packaging data

Specification	Value
Package width	170 mm
Package depth	137 mm
Package height	30 mm
Package weight	149 g

Packaging content

Specification	Value
Mounting brackets included	Yes
Quick installation guide	Yes

Technical details

Specification	Value
Compliance certificates	CE, REACH

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
