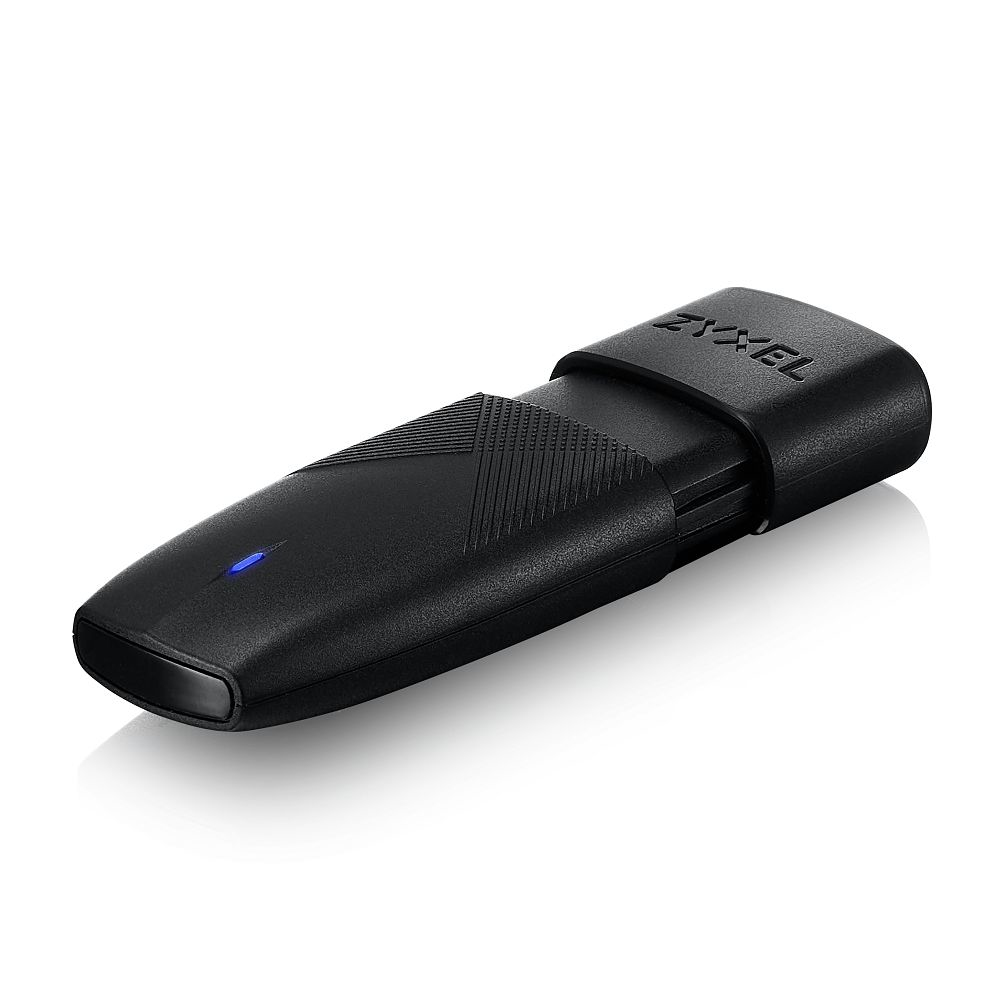

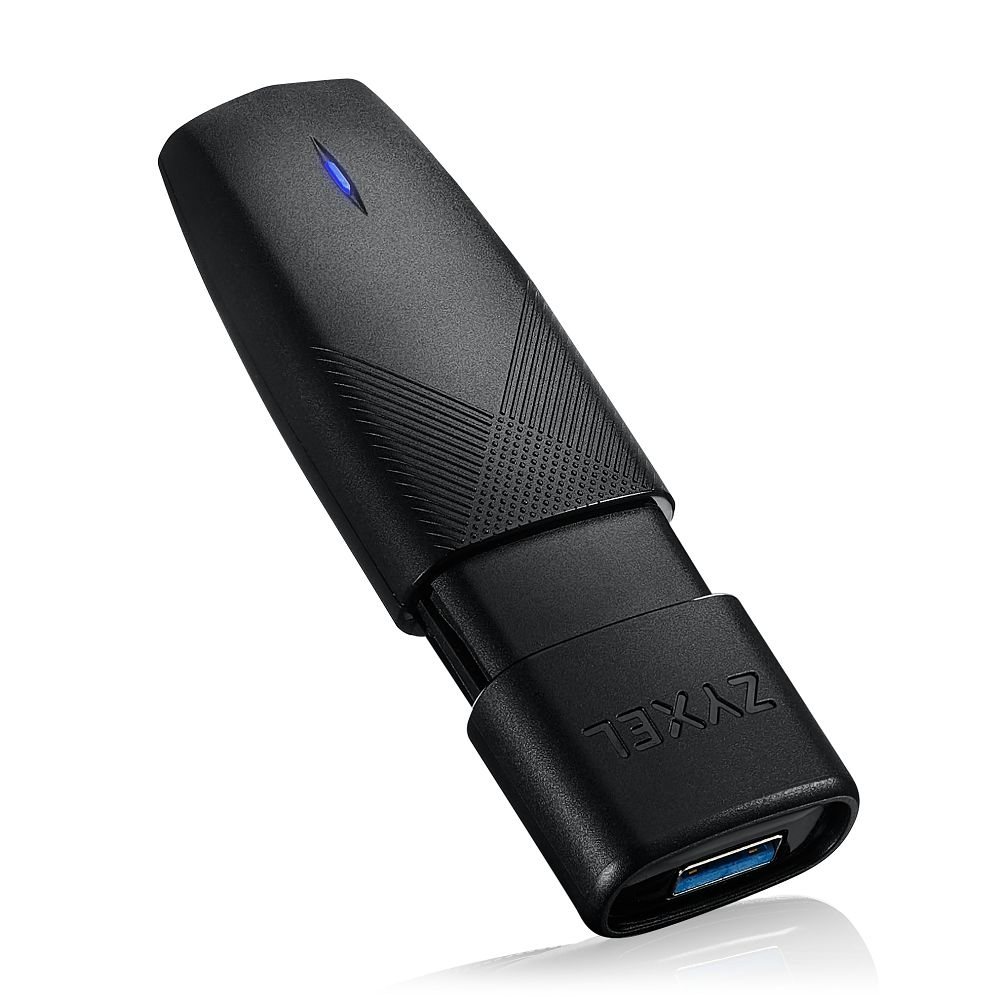

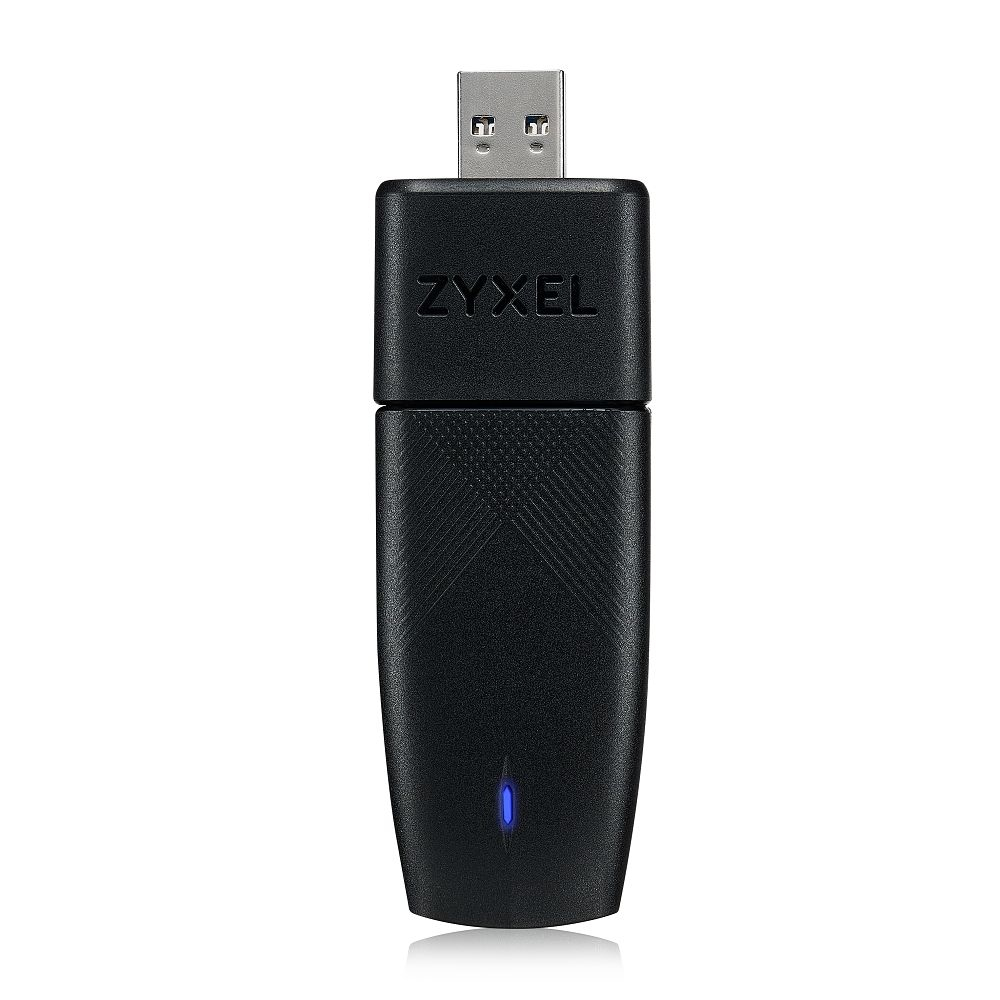

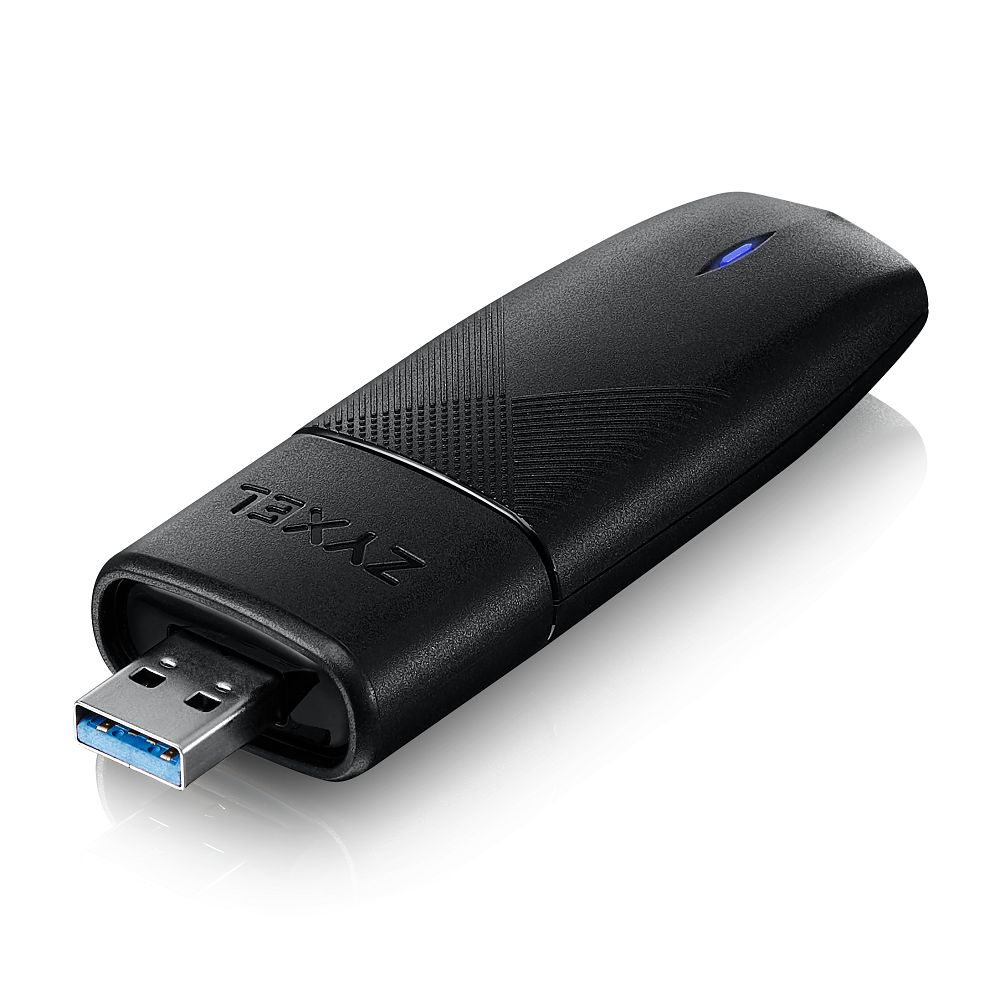

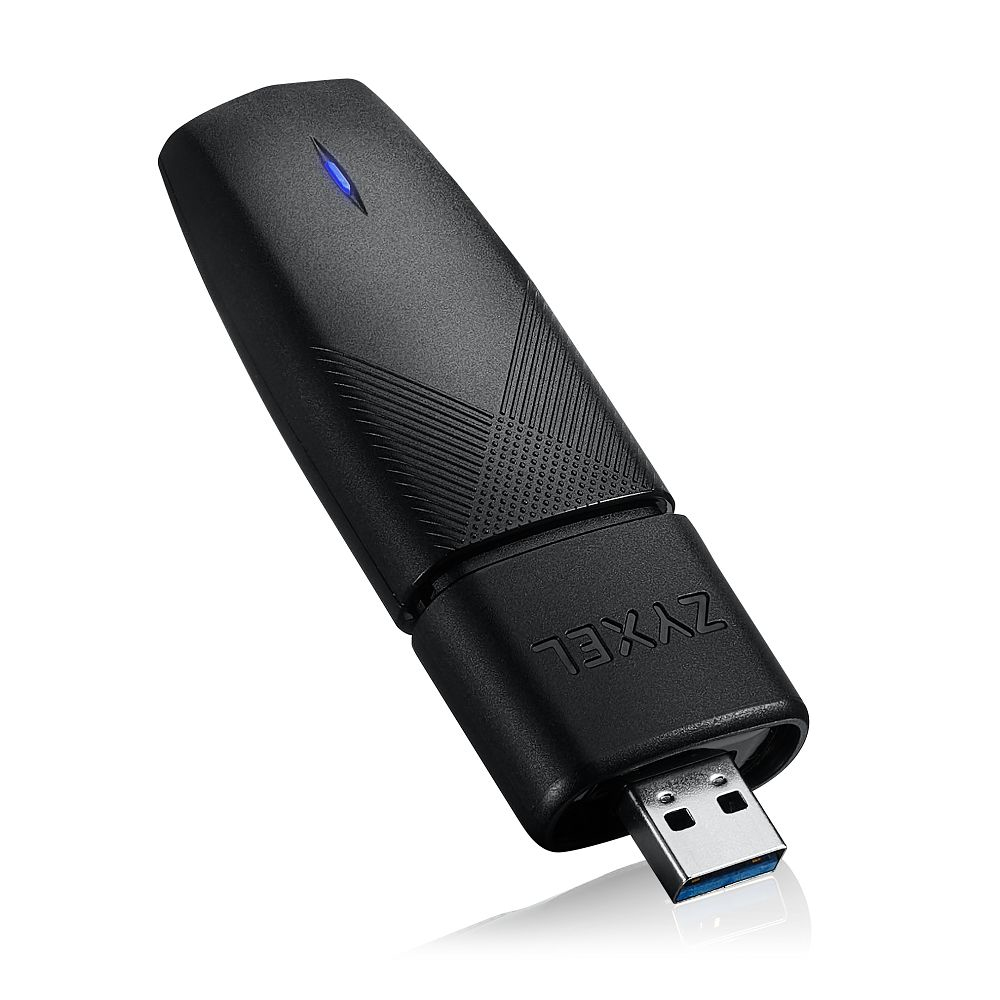

Zyxel NWD7605 WLAN 1200 Mbit/s

NWD7605 WLAN 1200 Mbit/s

Model NWD7605Part no. NWD7605-EU0101FEAN 4718937625604

29 specifications

Speed1200 Mbit/s
ConnectivityWireless
Weight28 g
ColourBlack
Windows operating systems supportedYes
Operating temperature (T-T)0 - 40 °C

See all specifications

Overview

Speed: 1200 Mbit/s
Connectivity: Wireless
Weight: 28 g
Colour: Black
Windows operating systems supported: Yes
Operating temperature (T-T): 0 - 40 °C

Brand: Zyxel
Category: Network Card
Model: NWD7605
Part number: NWD7605-EU0101F
EAN / UPC: 4718937625604
Also known as: Zyxel NWD7605 WLAN 1200 Mbit/s

Specifications

29 specifications in 7 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
USB version	3.2 Gen 1 (3.1 Gen 1)

Network

Specification	Value
Maximum data transfer rate	1200 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Security algorithms	WPA2, WPA2-PSK, WPA3

Design

Specification	Value
Product colour	Black
Antenna	Yes
Antenna design	Internal
LED indicators	Yes
Certification	FCC, CE, UKCA, NCC, BSM

System requirements

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%

Weight & dimensions

Specification	Value
Width	30 mm
Depth	95 mm
Height	15 mm
Weight	28 g

Packaging data

Specification	Value
Package width	101 mm
Package depth	120 mm
Package height	27 mm
Package weight	88 g
