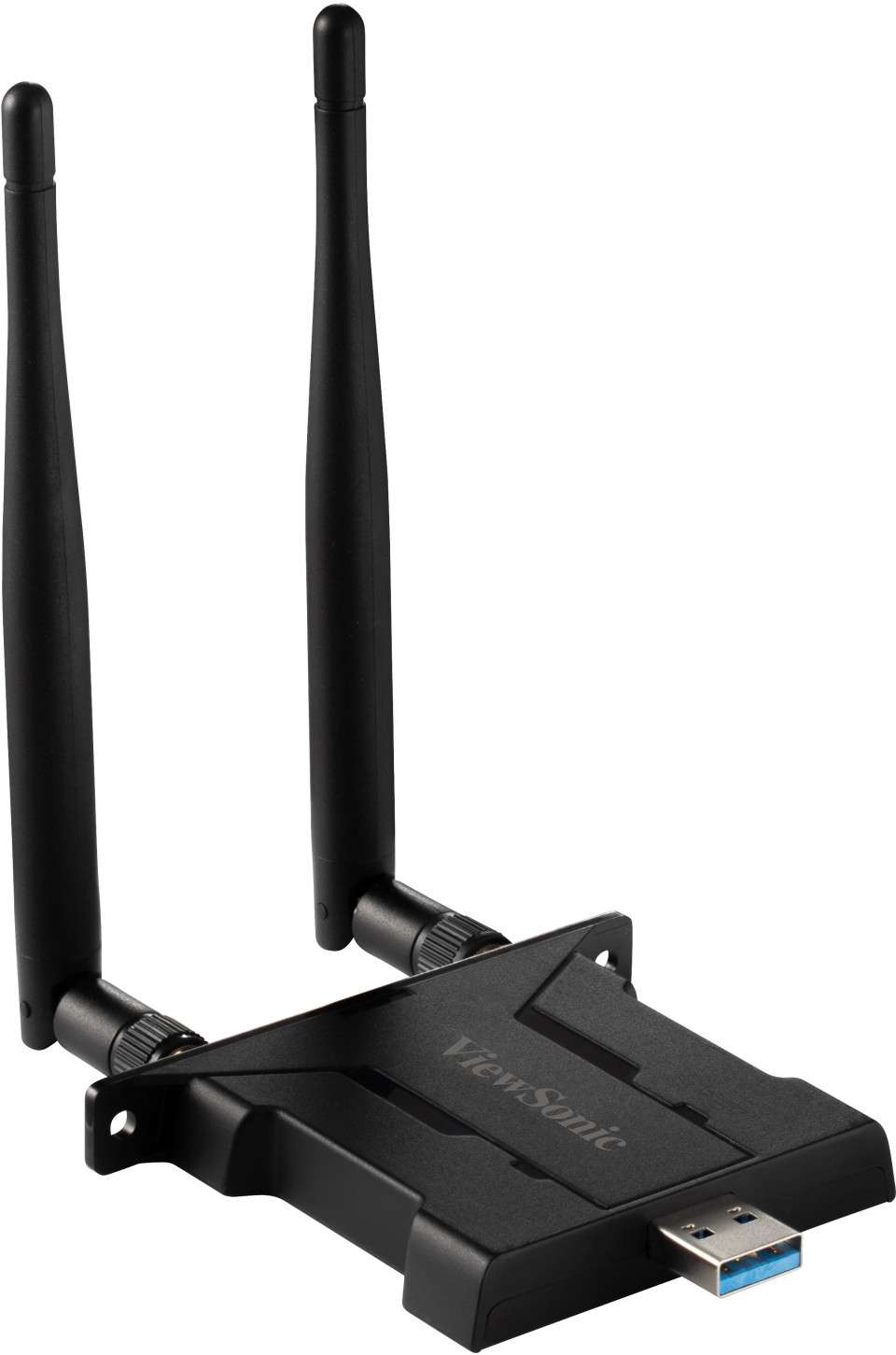

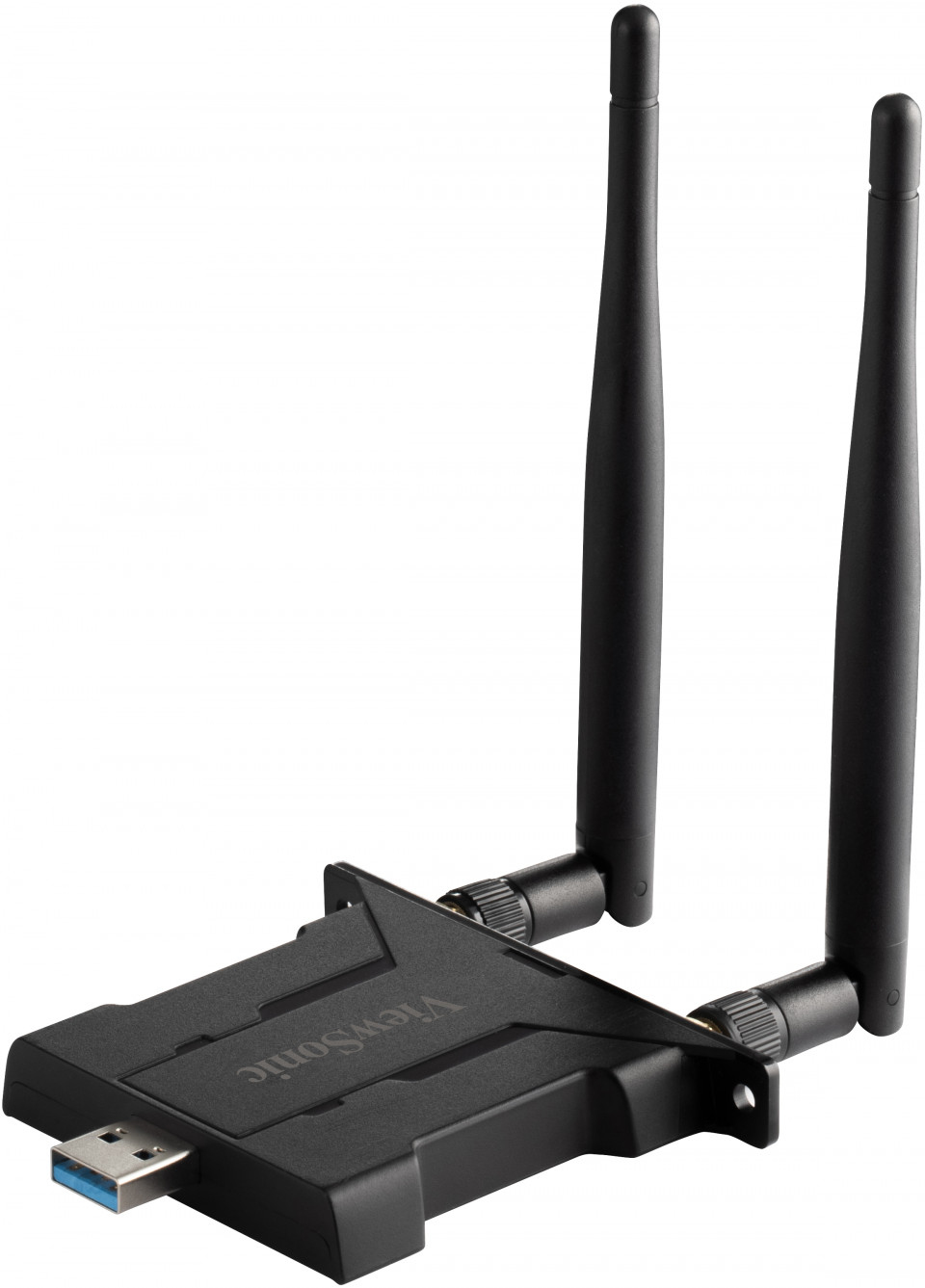

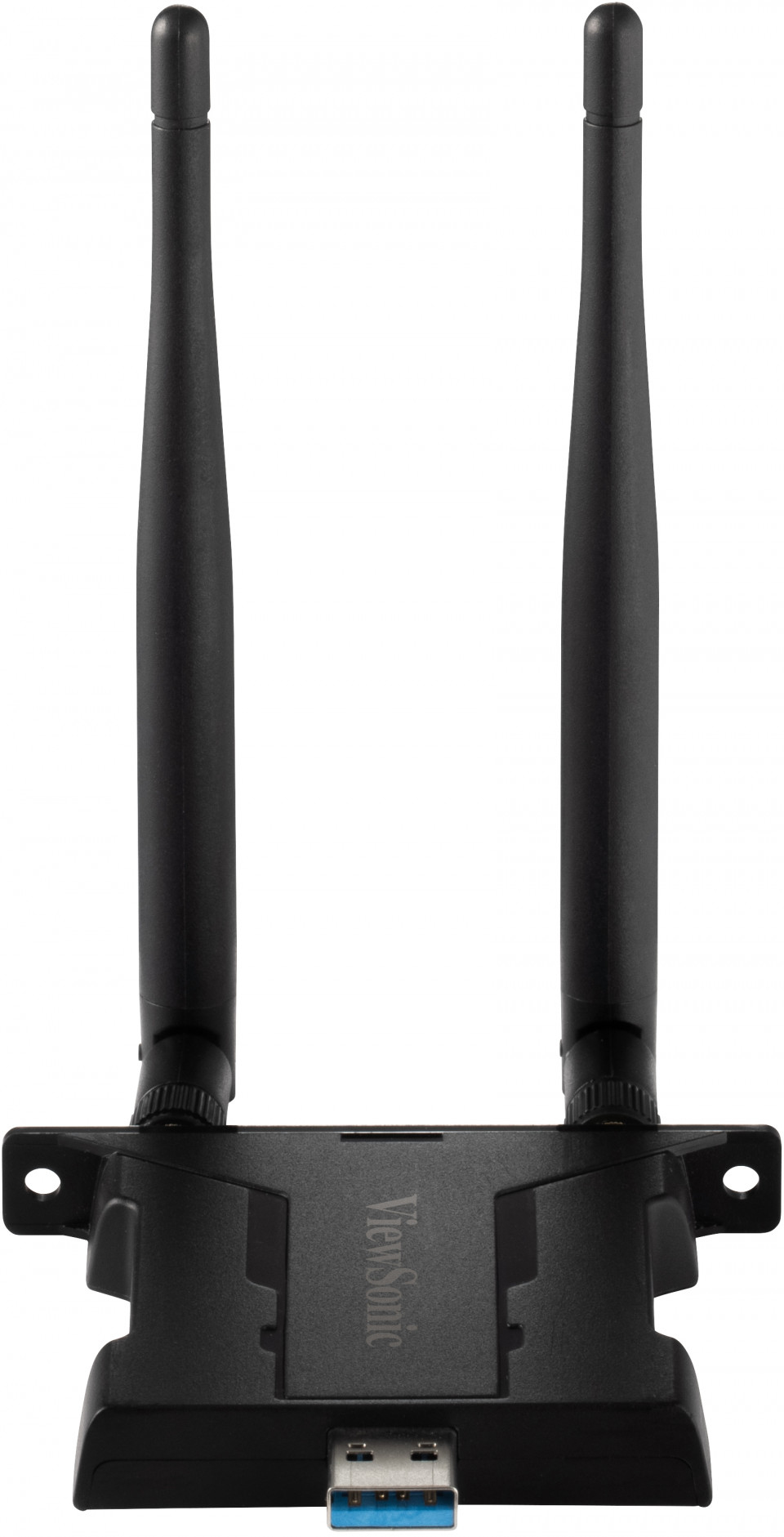

Viewsonic VB-WIFI-005 network card WLAN / Bluetooth

VB-WIFI-005 network card WLAN / Bluetooth

Model VB-WIFI-005EAN 766907017854

34 specifications

SpeedWi-Fi 6 (802.11ax)
ConnectivityWireless
Weight30 g
ColourBlack
Wi-FiYes
InternalNo

See all specifications

Overview

Speed: Wi-Fi 6 (802.11ax)
Connectivity: Wireless
Weight: 30 g
Colour: Black
Wi-Fi: Yes
Internal: No

Brand: Viewsonic
Category: Network Card
Model: VB-WIFI-005
Part number: VB-WIFI-005
EAN / UPC: 766907017854
Also known as: Viewsonic VB-WIFI-005 network card WLAN / Bluetooth

Specifications

34 specifications in 8 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN / Bluetooth
USB connector form factor	Straight
USB version	3.2 Gen 1 (3.1 Gen 1)

Network

Specification	Value
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2

Design

Specification	Value
Internal	No
Component for	PC
Product colour	Black
Antenna	Yes
Antenna design	Internal
Antenna type	2x2
Plug and Play	Yes
Certification	FCC, FCC ID, IC, IC ID, NCC

Power

Specification	Value
Output voltage	5 V
Power consumption (typical)	4.5 W
USB powered	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	99 mm
Depth	11 mm
Height	77 mm
Weight	30 g

Packaging data

Specification	Value
Package width	90 mm
Package depth	16 mm
Package height	157 mm
Package weight	80 g

Technical details

Specification	Value
Compliance certificates	CE, REACH, RoHS, WEEE
