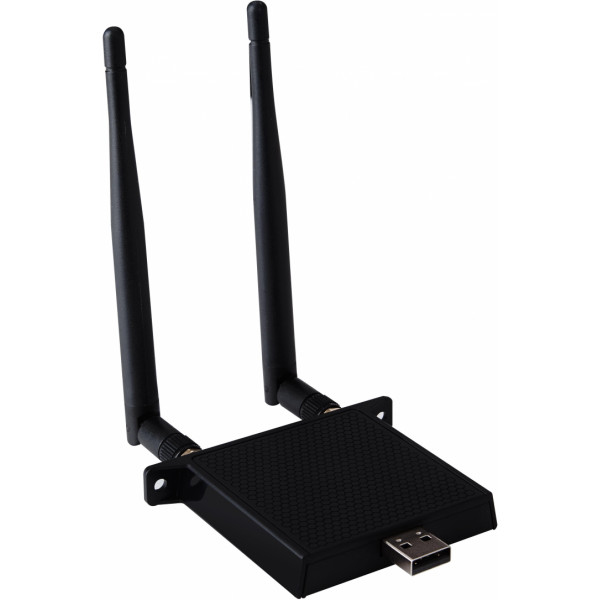

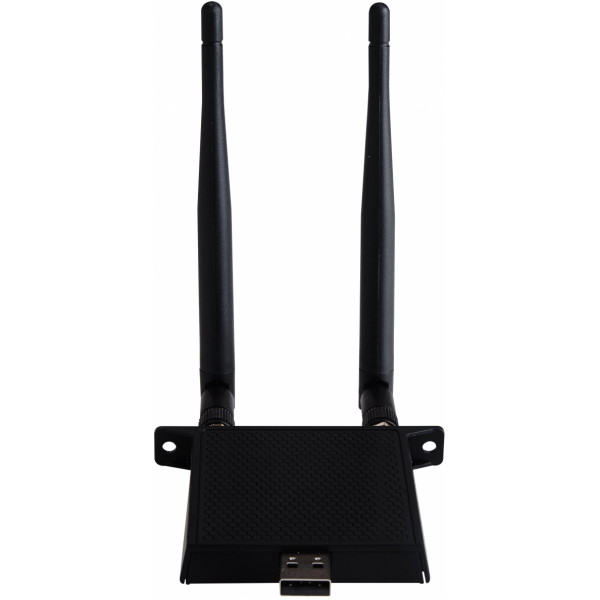

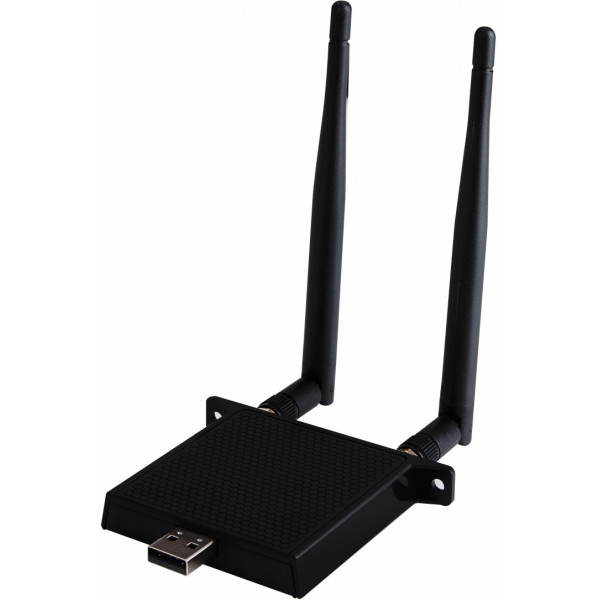

LB-WIFI-001 network card WLAN / Bluetooth 433 Mbit/s
Model LB-WIFI-001EAN 766907910117
32 specifications
- Speed433 Mbit/s
- ConnectivityWireless
- Weight30 g
- ColourBlack
- InternalNo
- Output voltage5 V
Overview
- Speed
- 433 Mbit/s
- Connectivity
- Wireless
- Weight
- 30 g
- Colour
- Black
- Internal
- No
- Output voltage
- 5 V
- Brand
- Viewsonic
- Category
- Network Card
- Model
- LB-WIFI-001
- Part number
- LB-WIFI-001
- EAN / UPC
- 766907910117, 766907966312
- Also known as
- Viewsonic LB-WIFI-001 network card WLAN / Bluetooth 433 Mbit/s
Specifications
32 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN / Bluetooth |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 433 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 433 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| LAN controller | Realtek RTL8821AU |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | Signage display |
| Product colour | Black |
| Certification | FCC, FCC ID, IC ID, CE, RCM |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Power consumption (typical) | 2.5 W |
| USB powered | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 77 mm |
| Height | 11 mm |
| Weight | 30 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 90 mm |
| Package depth | 157 mm |
| Package height | 16 mm |
| Package weight | 80 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
