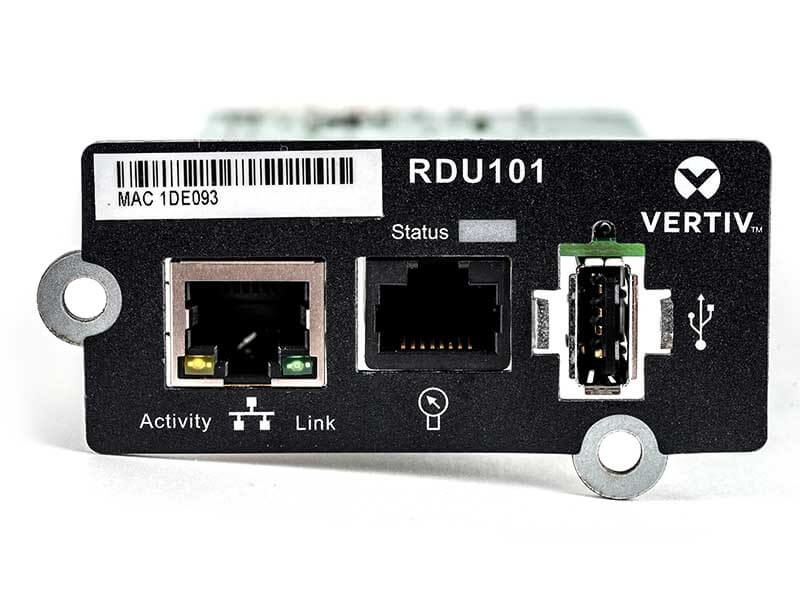

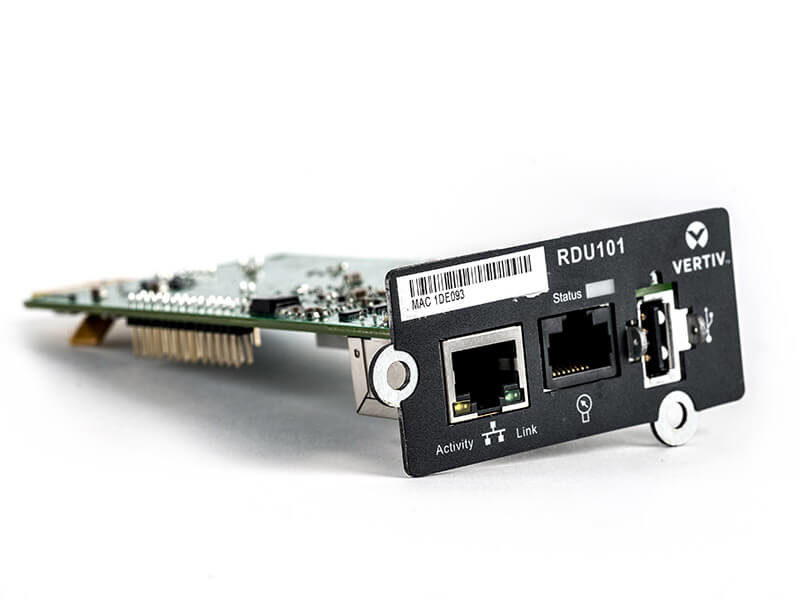

IntelliSlot RDU101
Model IntelliSlot RDU101Part no. RDU101EAN 636430087702
21 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight200 g
- ColourBlack
- InternalYes
- Output voltage7 - 12 V
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 200 g
- Colour
- Black
- Internal
- Yes
- Output voltage
- 7 - 12 V
- Brand
- Vertiv
- Category
- Network Card
- Model
- IntelliSlot RDU101
- Part number
- RDU101
- EAN / UPC
- 636430087702, 767041029130
- Also known as
- Vertiv IntelliSlot RDU101 Internal Ethernet 100 Mbit/s
Specifications
21 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
| LED indicators | Activity |
Power
| Specification | Value |
|---|---|
| Output voltage | 7 - 12 V |
| Power consumption (typical) | 3.6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75.5 mm |
| Depth | 15 mm |
| Height | 37 mm |
| Weight | 200 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 600 g |
