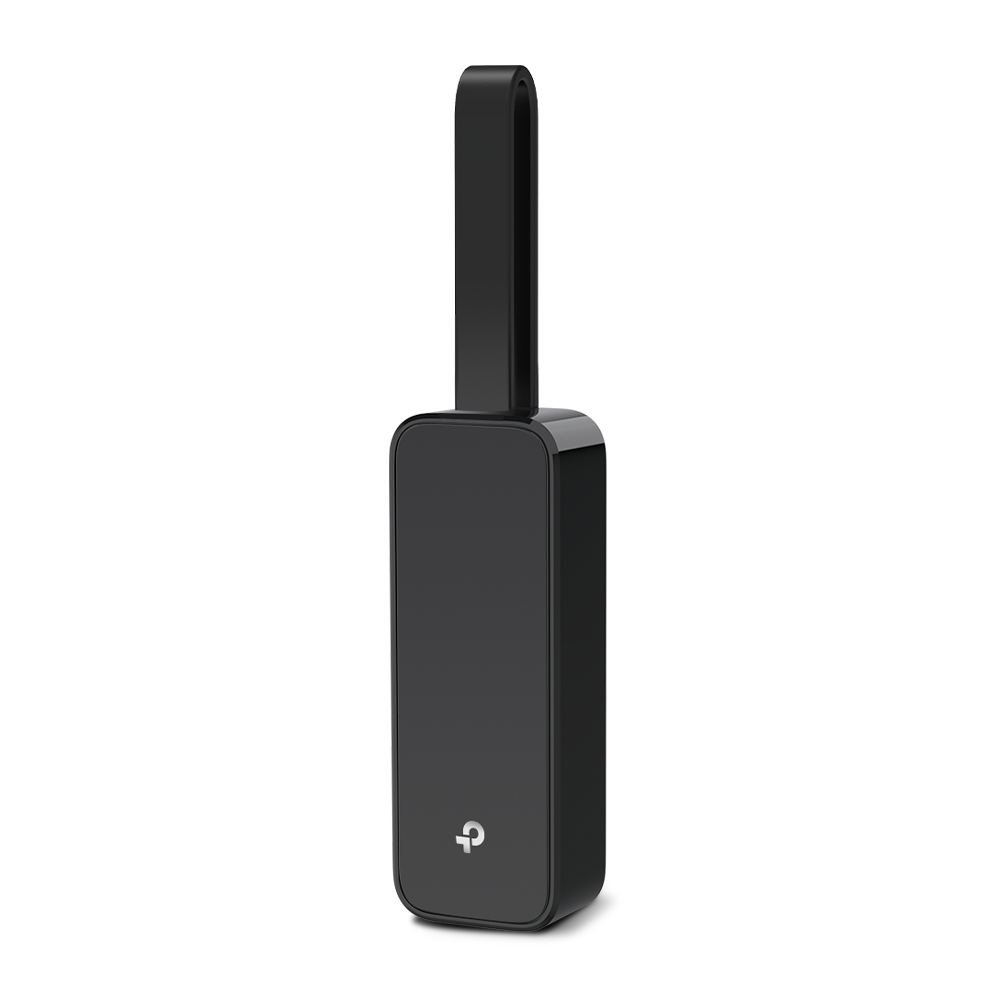

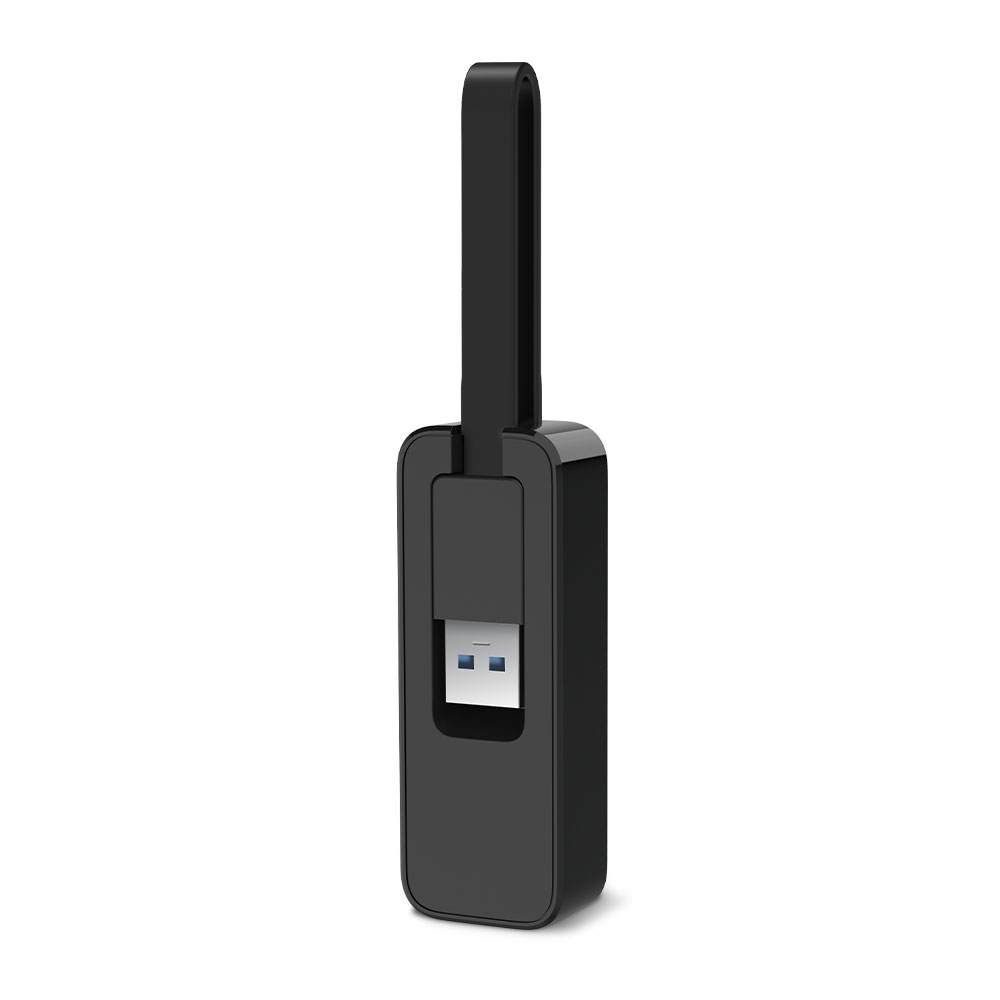

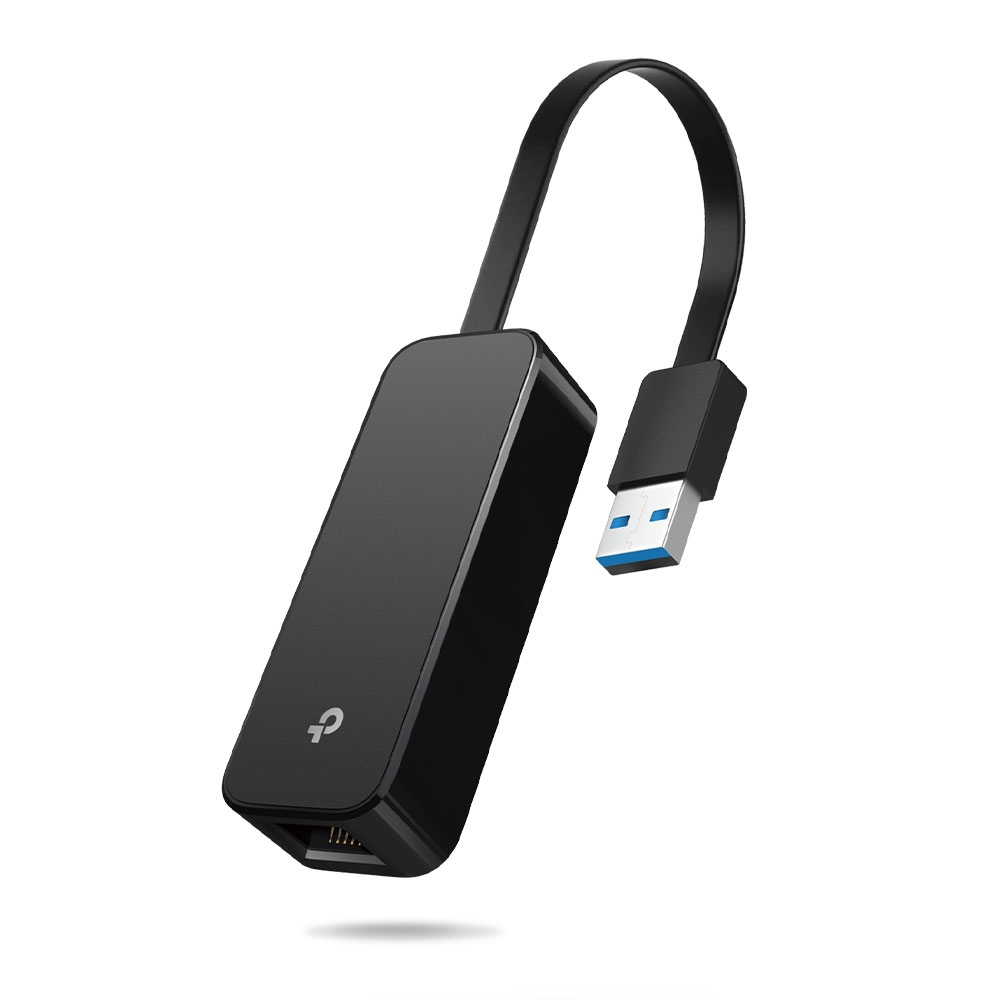

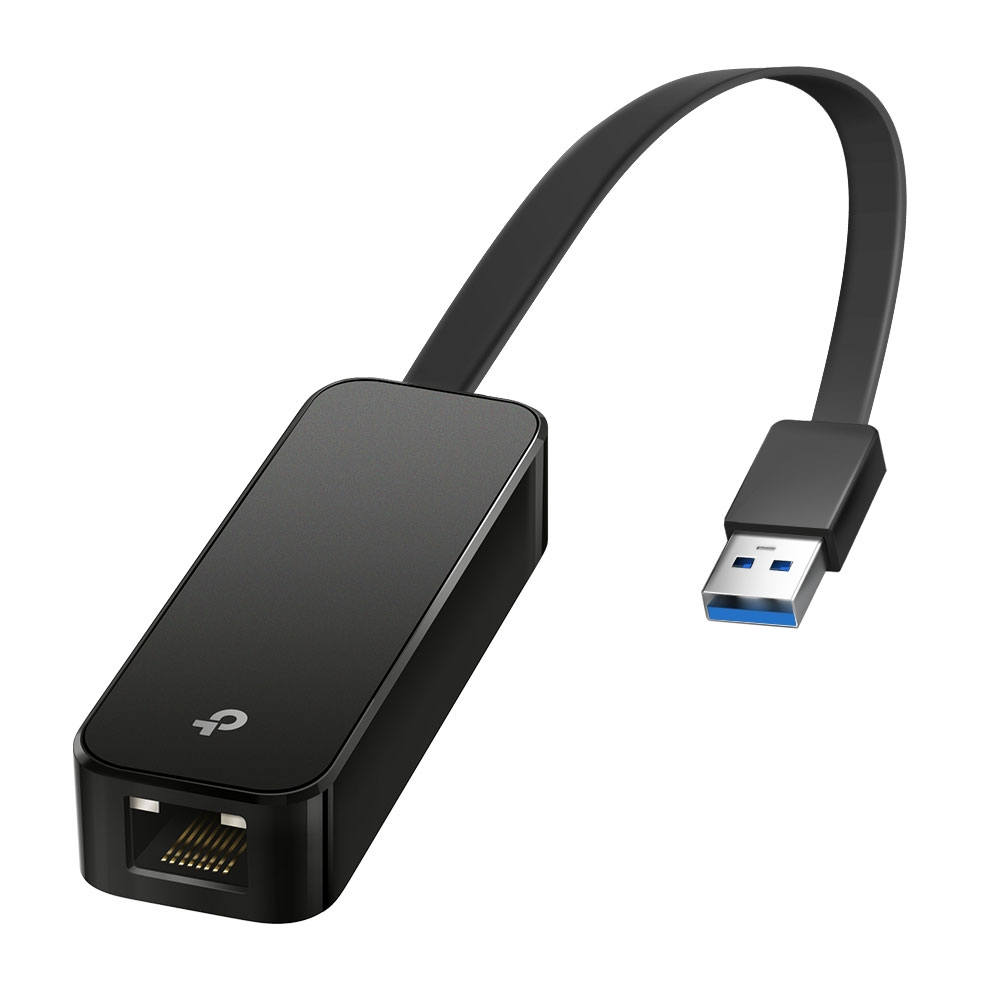

USB 3.0 to Gigabit Ethernet Network Adapter
Model UE306EAN 840030707377
35 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight20 g
- ColourBlack
- InternalNo
- Mac operating systems supportedYes
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 20 g
- Colour
- Black
- Internal
- No
- Mac operating systems supported
- Yes
- Brand
- TP-Link
- Category
- Network Card
- Model
- UE306
- Part number
- UE306
- EAN / UPC
- 840030707377, 4897098687239, 4897098687376
- Also known as
- TP-Link USB 3.0 to Gigabit Ethernet Network Adapter
Specifications
35 specifications in 11 groups

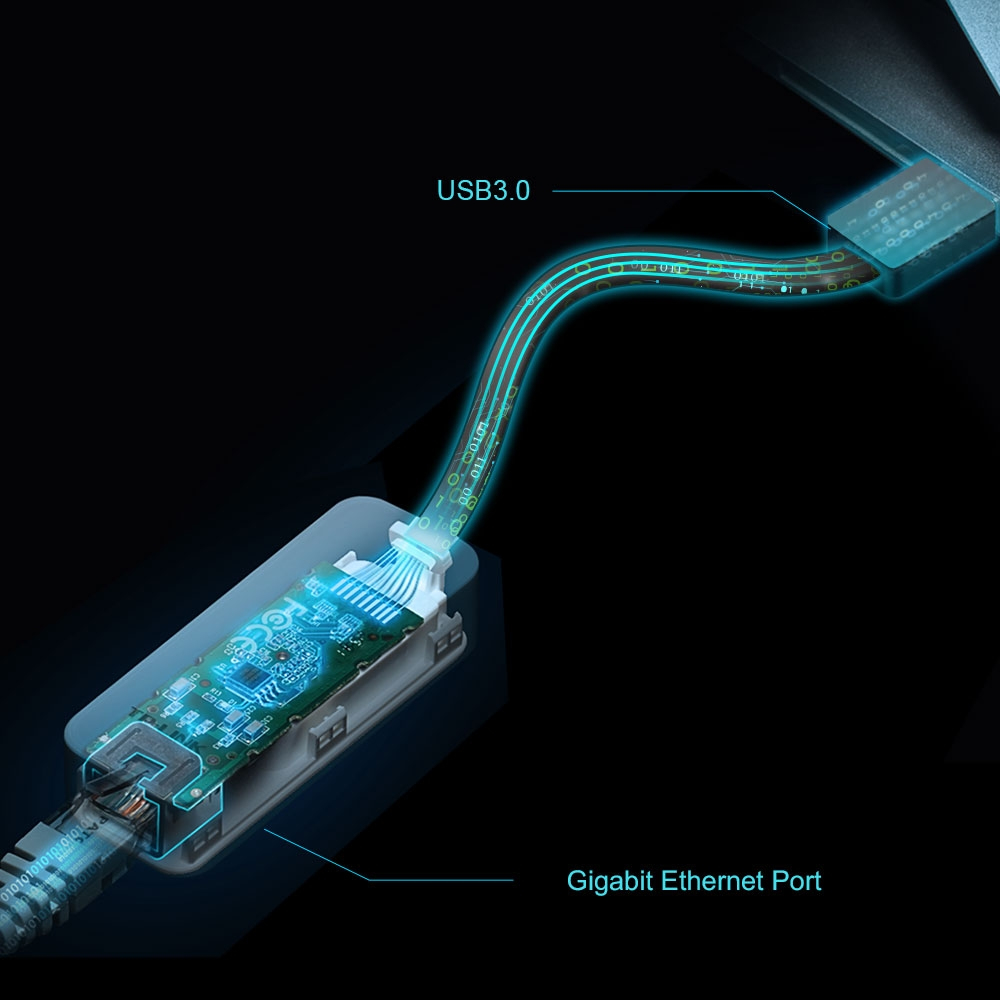

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Black |
| Plug and Play | Yes |
| Certification | CE, FCC, RoHS |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | RoHS, Federal Communications Commission (FCC), CE |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 71 mm |
| Depth | 26 mm |
| Height | 16.2 mm |
| Weight | 20 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 183 mm |
| Package depth | 85 mm |
| Package height | 18 mm |
| Package weight | 60 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
