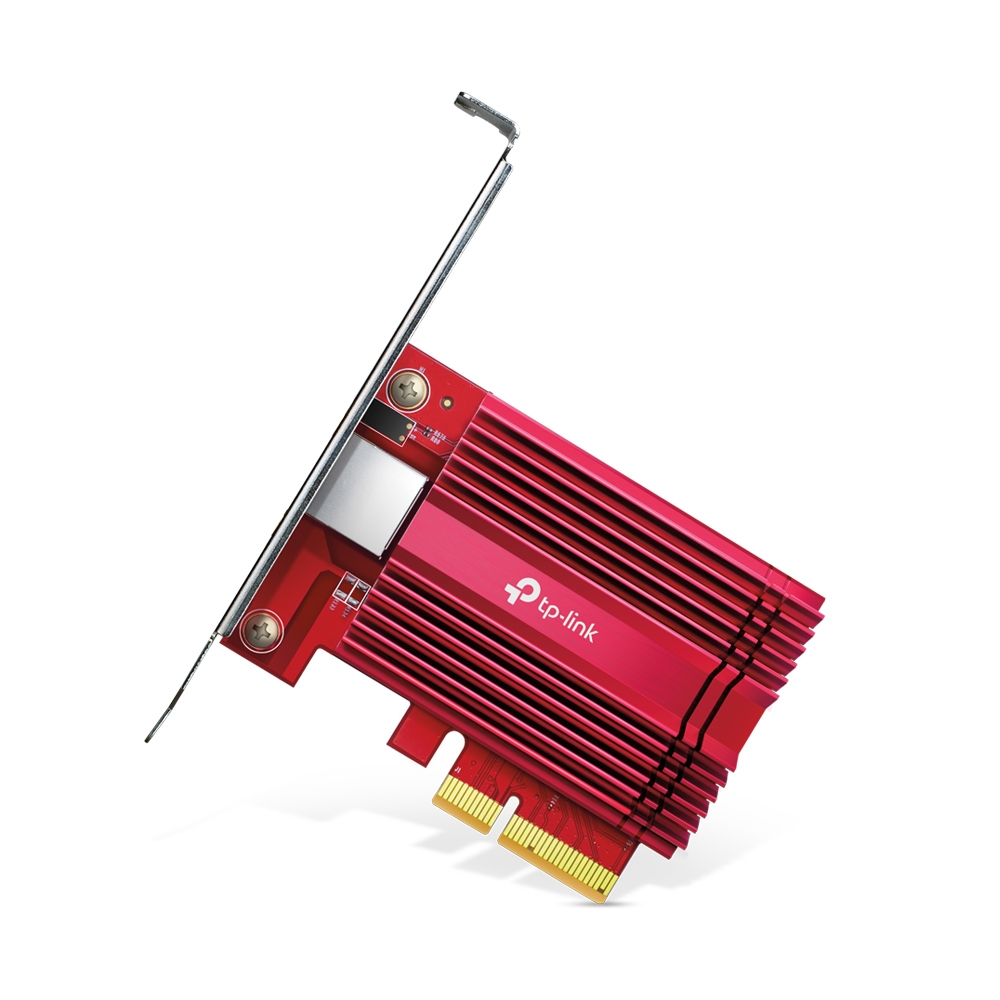

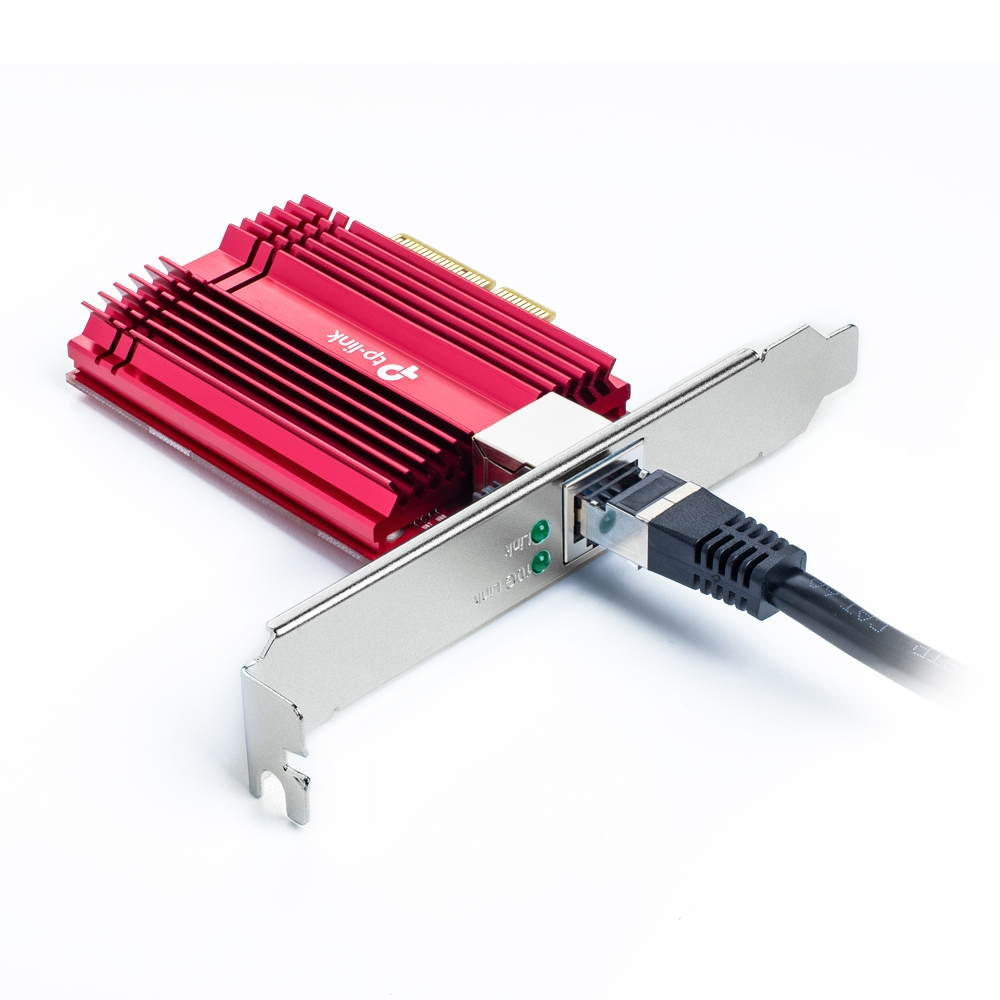

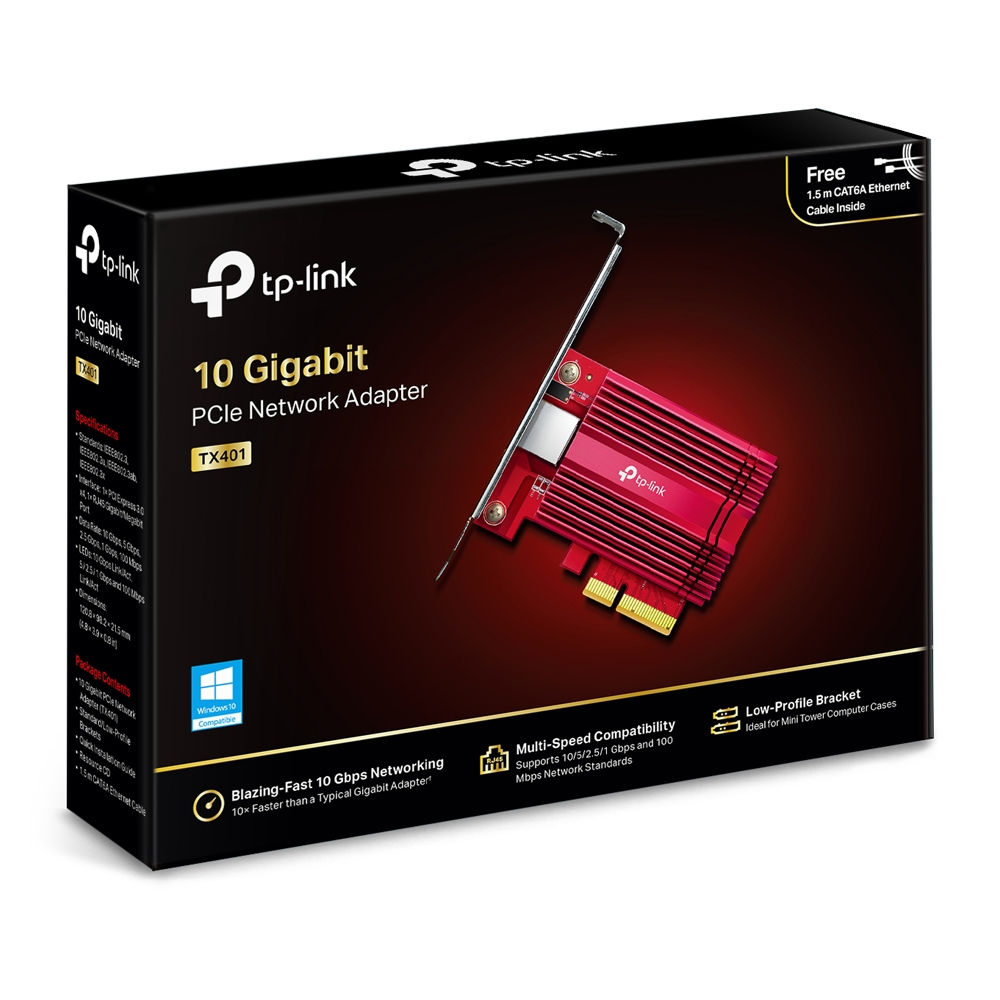

TX401 network card Internal Ethernet 10000 Mbit/s
Model TX401Part no. TX401(UN)EAN 6935364072827
34 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- ColourRed
- InternalYes
- Operating temperature (T-T)0 - 40 °C
- Width120.8 mm
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Colour
- Red
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 120.8 mm
- Brand
- TP-Link
- Category
- Network Card
- Model
- TX401
- Part numbers
- TX401(UN), TX401
- EAN / UPC
- 6935364072827, 840030701610, 1210002617772, 6935364072834
- Also known as
- TP-Link TX401 network card Internal Ethernet 10000 Mbit/s
Specifications
34 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 3.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 Mbit/s |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Red |
| LED indicators | Activity, Link |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120.8 mm |
| Depth | 98.2 mm |
| Height | 21.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 150 mm |
| Package height | 44 mm |
| Package weight | 300 g |

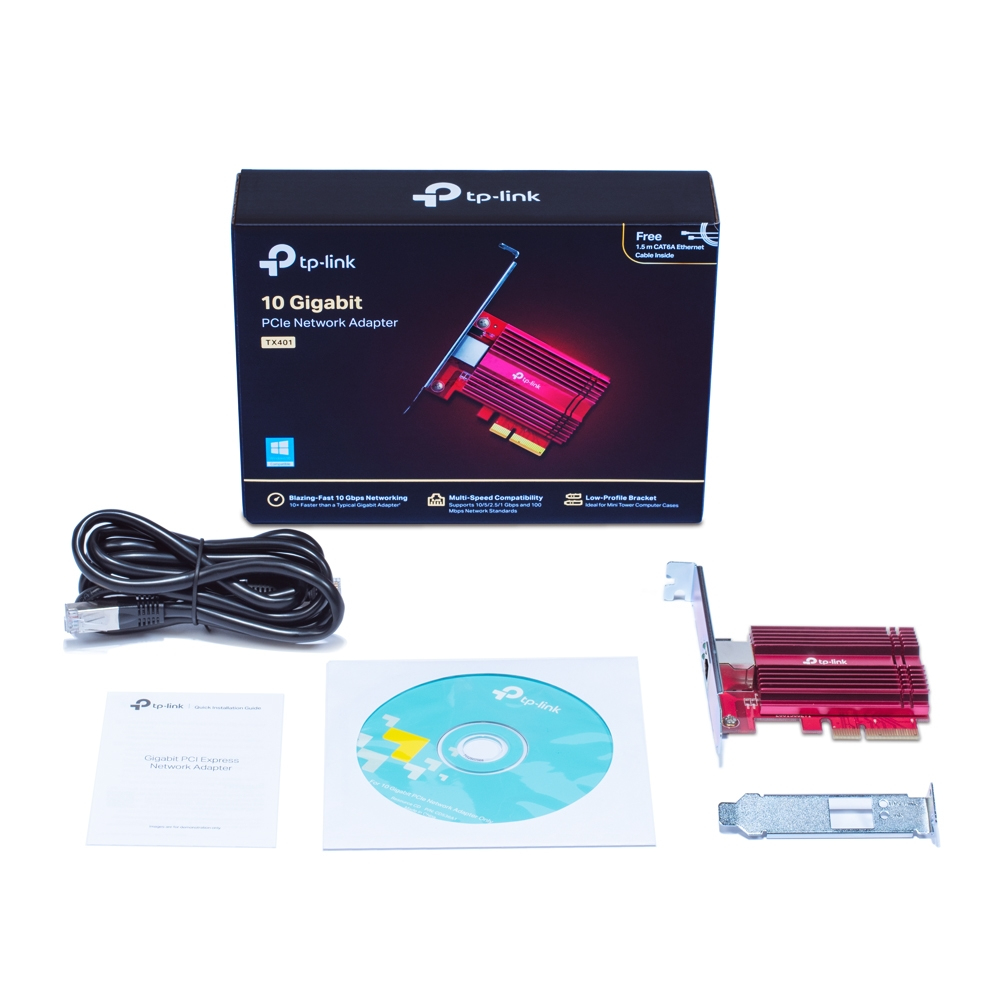

Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |

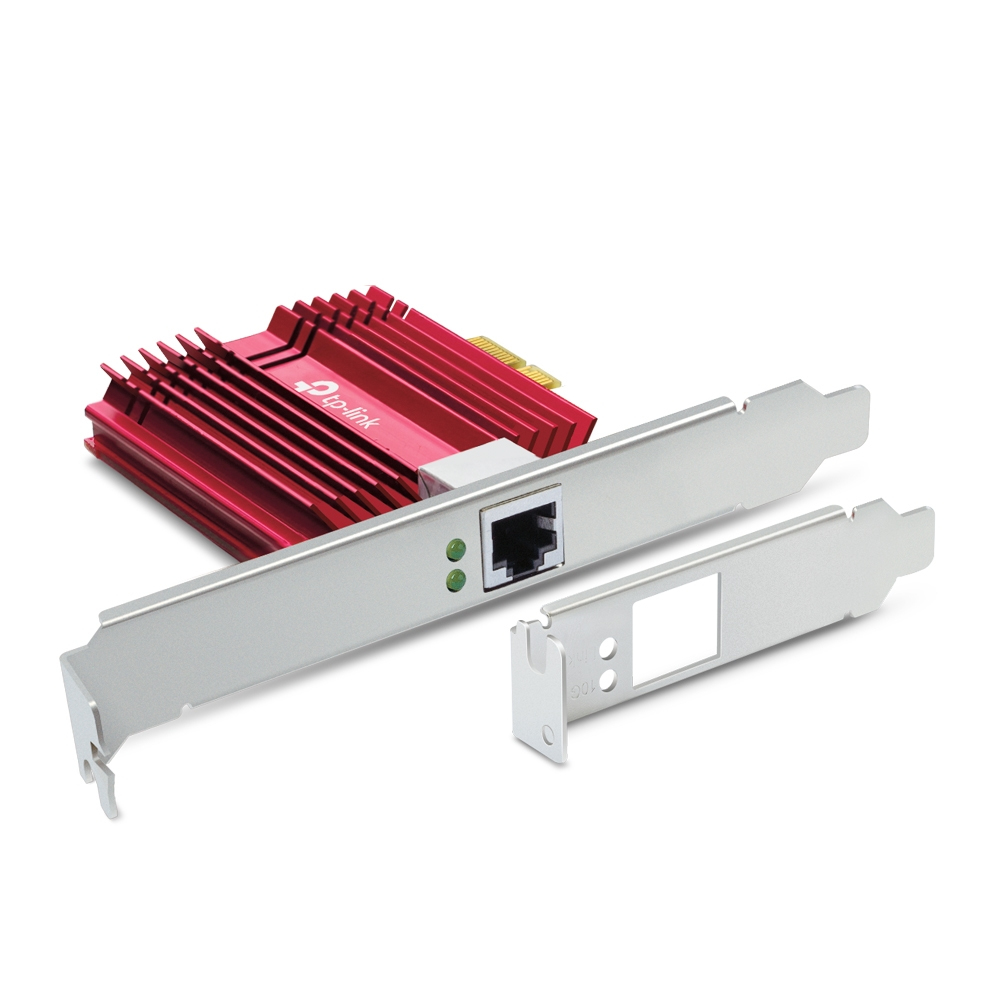

| Mounting brackets included | Yes |
| Resource CD | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
