TP-Link TX35U WLAN 1201 Mbit/s

TX35U WLAN 1201 Mbit/s

Model TX35UPart no. ARCHER TX35U PLUSEAN 810142824637

36 specifications

Speed1201 Mbit/s
ConnectivityWireless
ColourBlack
InternalNo
USB poweredYes
Windows operating systems supportedWindows 10, Windows 11

See all specifications

Overview

Speed: 1201 Mbit/s
Connectivity: Wireless
Colour: Black
Internal: No
USB powered: Yes
Windows operating systems supported: Windows 10, Windows 11

Brand: TP-Link
Category: Network Card
Model: TX35U
Part number: ARCHER TX35U PLUS
EAN / UPC: 810142824637, 8885020626810
Also known as: TP-Link TX35U WLAN 1201 Mbit/s

Specifications

36 specifications in 10 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
USB connector form factor	Angled
USB version	3.2 Gen 1 (3.1 Gen 1)

Network

Specification	Value
Maximum data transfer rate	1201 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency range	2.4 - 5 GHz
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rates supported	11,54,300,574,867,1200 Mbit/s
Modulation	1024-QAM, OFDMA
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth	No
MU-MIMO	Yes

Design

Specification	Value
Internal	No
Component for	PC/Laptop
Product colour	Black

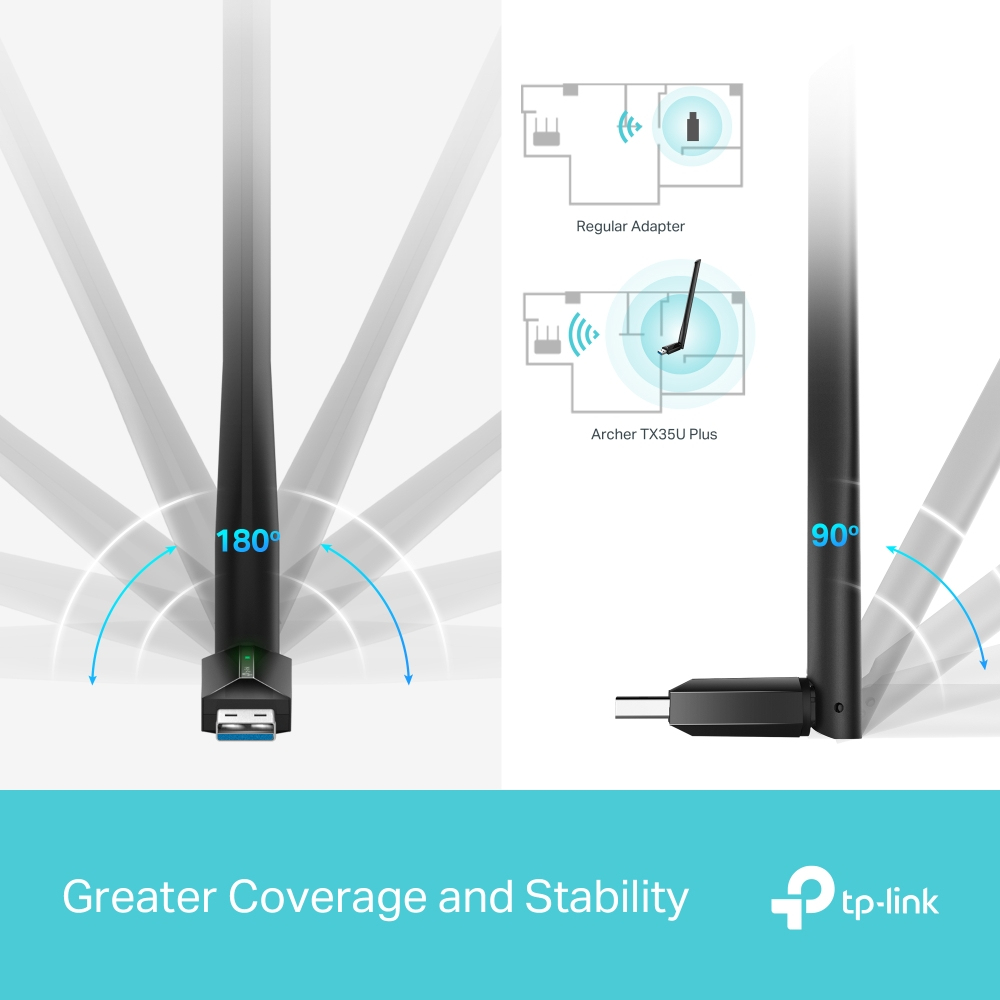

Antenna	Yes
Antenna design	External
Transmitting power (CE)	17 dBm
Transmitting power (FCC)	19 dBm
LED indicators	Status

Power

Specification	Value
USB powered	Yes

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 11

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	57.8 mm
Depth	173.4 mm
Height	18 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Quick installation guide	Yes
Packaging content	AX1800 High Gain Wireless USB Adapter

Technical details

Specification	Value
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
