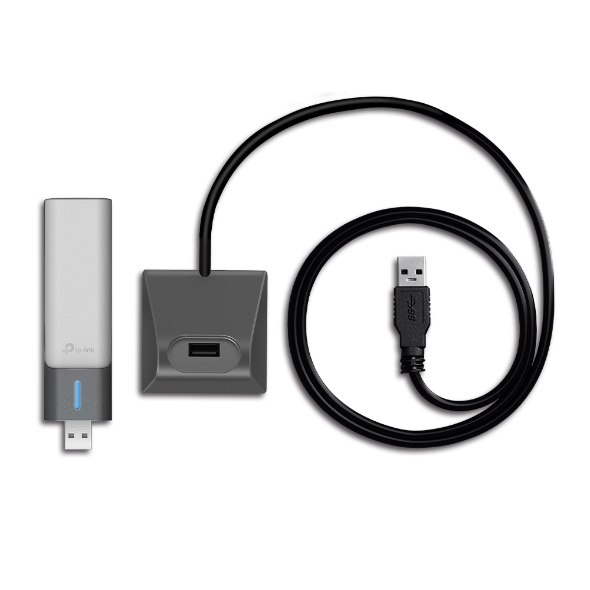

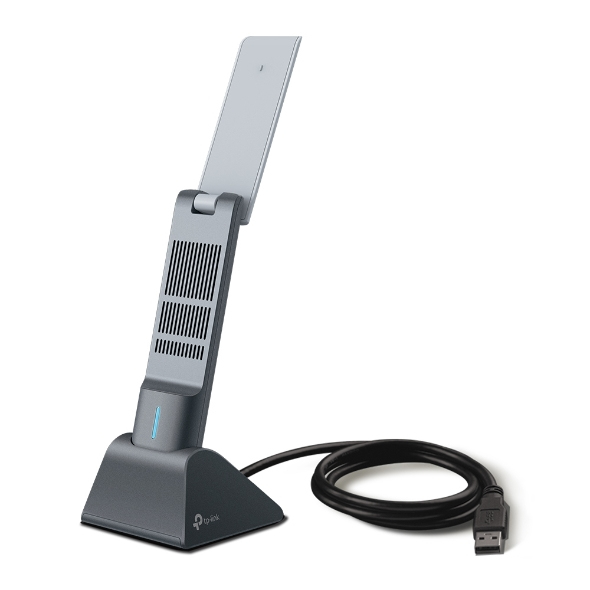

Archer TX21UH WLAN 1201 Mbit/s
Model TX21UHPart no. ARCHER TX21UHEAN 840030706394
35 specifications
- Speed1201 Mbit/s
- ConnectivityWireless
- ColourGrey
- InternalNo
- Windows operating systems supportedWindows 10 x64, Windows 11 x64
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1201 Mbit/s
- Connectivity
- Wireless
- Colour
- Grey
- Internal
- No
- Windows operating systems supported
- Windows 10 x64, Windows 11 x64
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- Network Card
- Model
- TX21UH
- Part number
- ARCHER TX21UH
- EAN / UPC
- 840030706394
- Also known as
- TP-Link Archer TX21UH WLAN 1201 Mbit/s
Specifications
35 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1201 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 11,54,300,574,867 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM, OFDMA |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA3 |
| MU-MIMO | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Grey |
| Antenna | Yes |
| Antenna type | 2x2 |
| Antenna direction type | Omni-directional |
| Transmitting power (CE) | 16 - 18 dBm |
| Transmitting power (FCC) | 19 - 19.5 dBm |
| Plug and Play | Yes |
| LED indicators | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 111.7 mm |
| Depth | 30.5 mm |
| Height | 14.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
