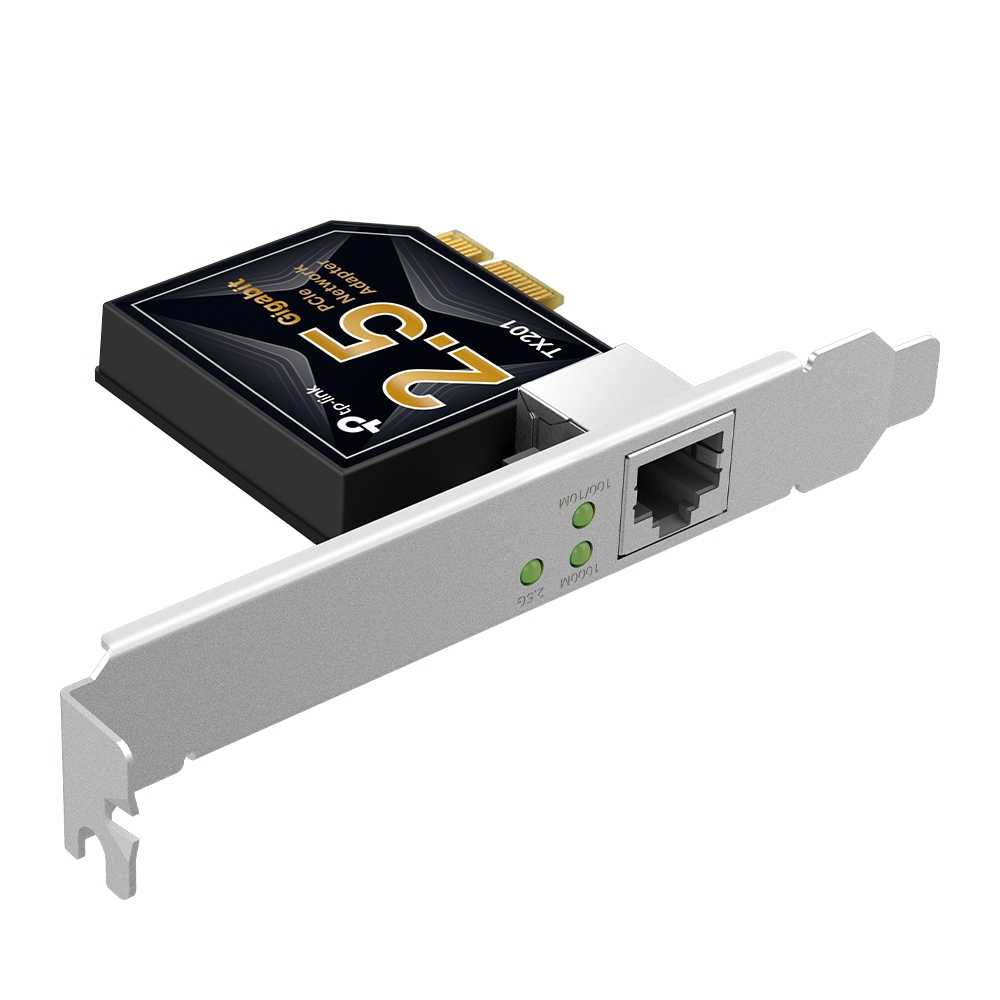

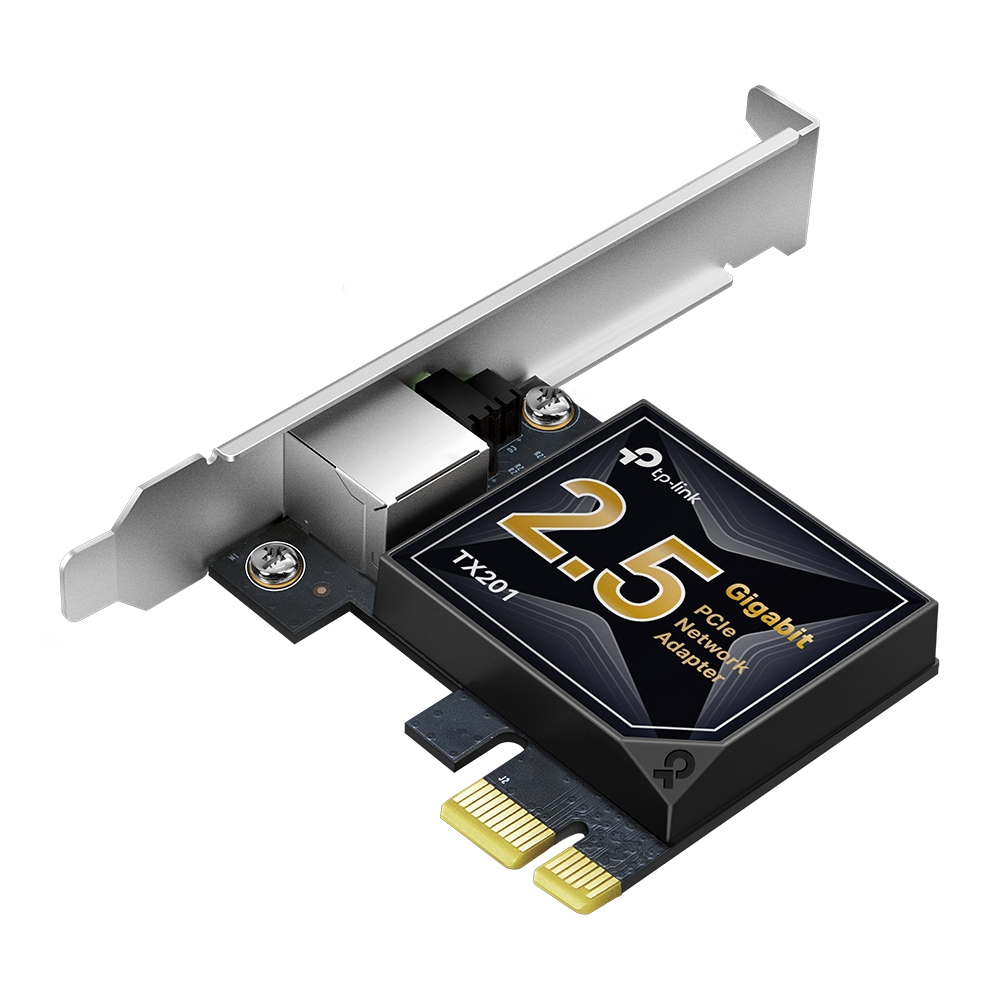

2.5 Gigabit PCIe Network Adapter
Model TX201EAN 840030707834
34 specifications
- Speed2500 Mbit/s
- ConnectivityWired
- ColourBlack, Grey
- InternalYes
- Operating temperature (T-T)0 - 40 °C
- Width120.8 mm
Overview
- Speed
- 2500 Mbit/s
- Connectivity
- Wired
- Colour
- Black, Grey
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 120.8 mm
- Brand
- TP-Link
- Category
- Network Card
- Model
- TX201
- Part numbers
- TX201, TX201(UN)
- EAN / UPC
- 840030707834, 4897098687833, 4897098687840
- Also known as
- TP-Link 2.5 Gigabit PCIe Network Adapter
Specifications
34 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 2.1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2500 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Laptop |
| Product colour | Black, Grey |
| LED indicators | Activity, Link |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120.8 mm |
| Depth | 21.5 mm |
| Height | 98.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 201.5 mm |
| Package depth | 152.5 mm |
| Package height | 41.5 mm |
| Package weight | 170 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
