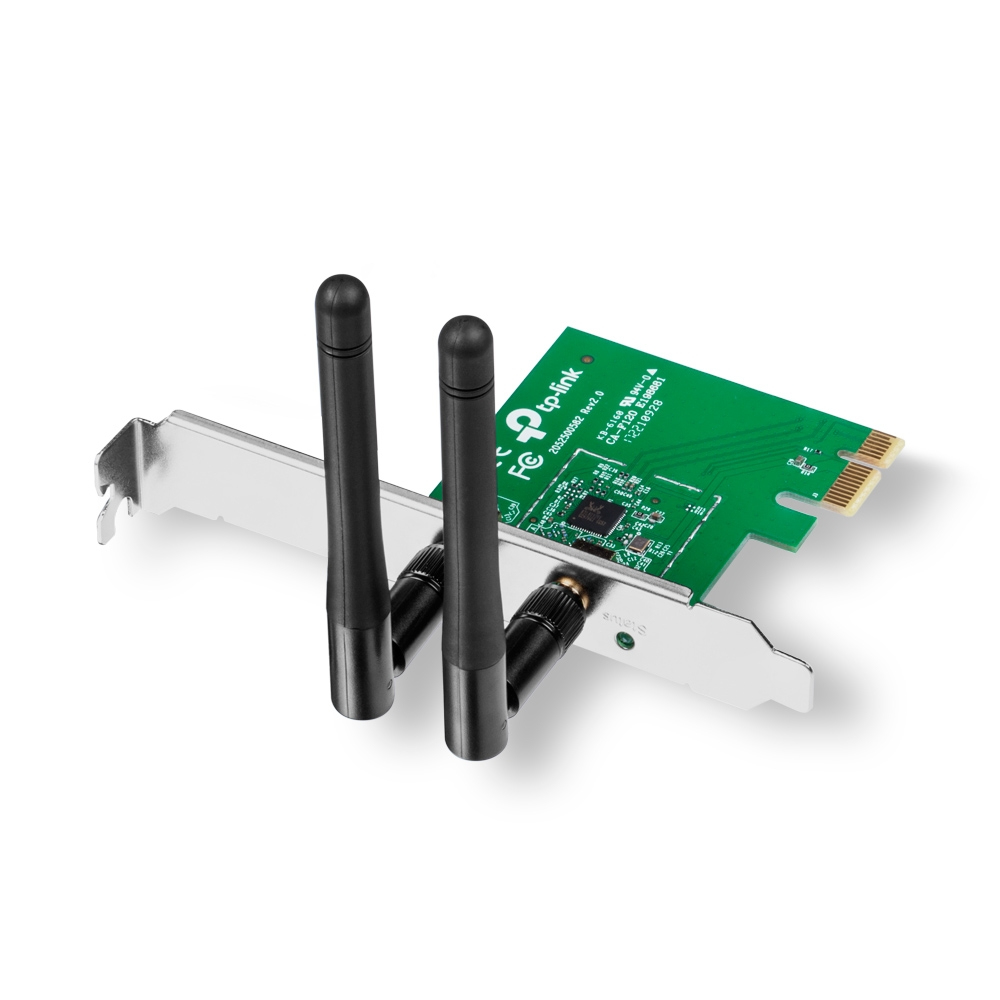

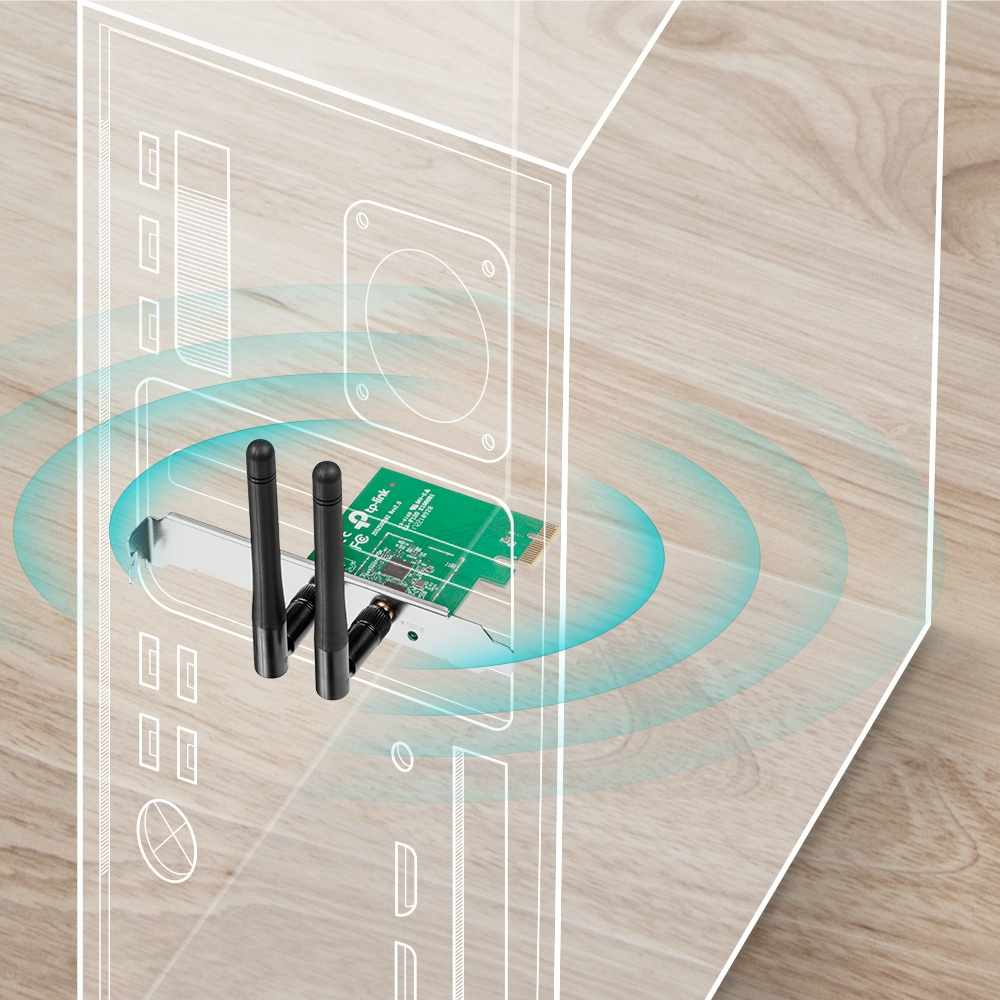

TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket
Model TL-WN881NDEAN 809186281605
46 specifications
- Speed300 Mbit/s
- ConnectivityWireless
- ColourGreen
- InternalYes
- Operating temperature (T-T)0 - 40 °C
- Width120.8 mm
Overview
- Speed
- 300 Mbit/s
- Connectivity
- Wireless
- Colour
- Green
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 120.8 mm
- Brand
- TP-Link
- Category
- Network Card
- Model
- TL-WN881ND
- Part numbers
- TL-WN881ND, TL-WN881ND V1, TL-WN881ND V2
- EAN / UPC
- 809186281605, 565564869055, 758399150058, 845973050573 +20 more
- Also known as
- TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket
Specifications
46 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
| Frequency range | 2.4 - 2.4835 GHz |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 11,54,150,300 Mbit/s |
| Modulation | 16-QAM, 64-QAM, DBPSK, DQPSK, OFDM |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Green |

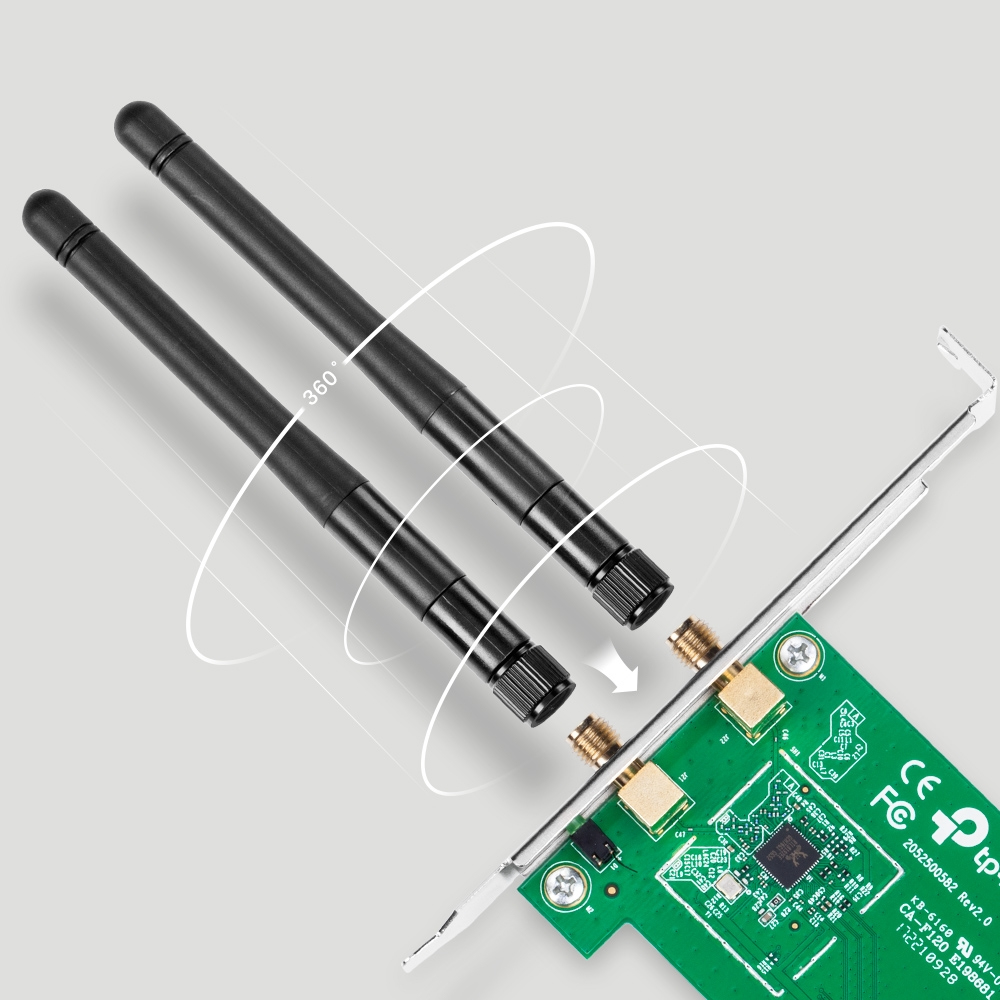

| Antenna | Yes |
| Antenna design | External |
| Antenna connector type | RP-SMA |
| LED indicators | Yes |
| Receiver sensitivity | 270M: -68dBm@10% 130M: -68dBm@10% 108M: -73dBm@10% 54M: -73dBm@10% 11M: -89dBm@8% 6M: -87dBm@10% 1M: -90dBm@8% |
| Certification | CE, FCC |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7 (32/64-bits) Windows Vista (32/64-bits) Windows XP (32/64-bits) |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120.8 mm |
| Depth | 78.5 mm |
| Height | 21.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 150 mm |
| Package height | 39 mm |
| Package weight | 170 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Gain | 2 dBi |
| Compliance industry standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Minimum system requirements | PCI-E x1 |
| Antennas quantity | 2 |
| Quick start guide | Yes |
| Link/Act LED | Yes |
| Operating temperature (T-T) | 32 - 104 °F |
Compare TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket

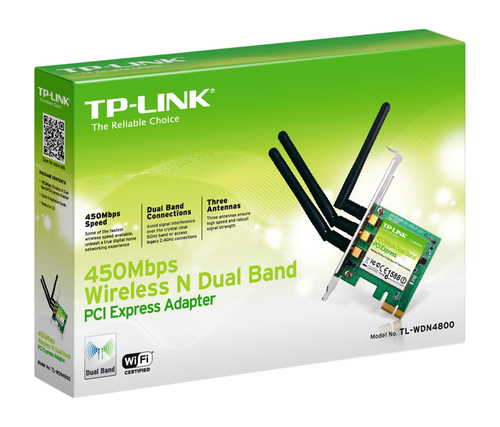

Compare any products- TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket vsTP-Link TL-WDN4800 network card Internal WLAN 450 Mbit/sCompare specs

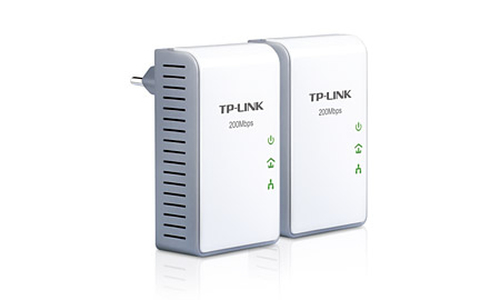

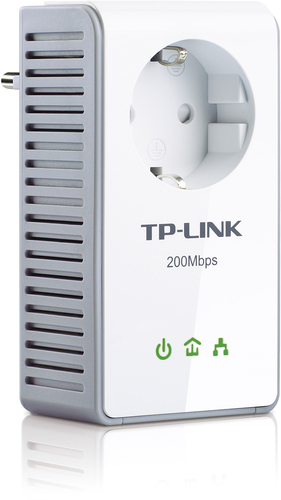

- TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket vsTP-Link TL-PA250 network card Ethernet 200 Mbit/sCompare specs

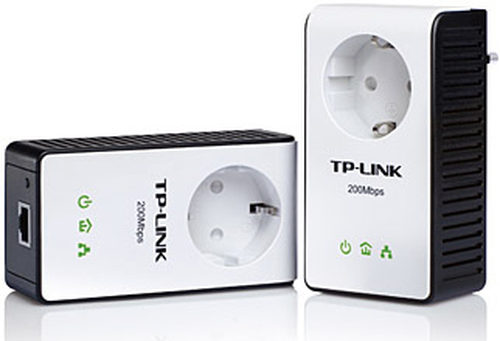

- TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket vsTP-Link TL-PA210KIT Ethernet 200 Mbit/sCompare specs
- TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket vsTP-Link TL-PA251KIT Ethernet 200 Mbit/sCompare specs

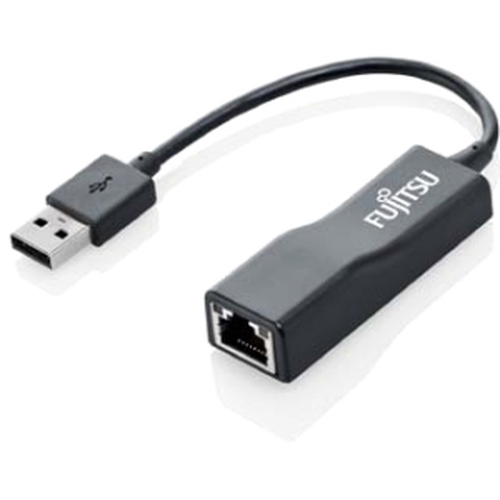

- TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket vsFujitsu USB 2.0 LANCompare specs

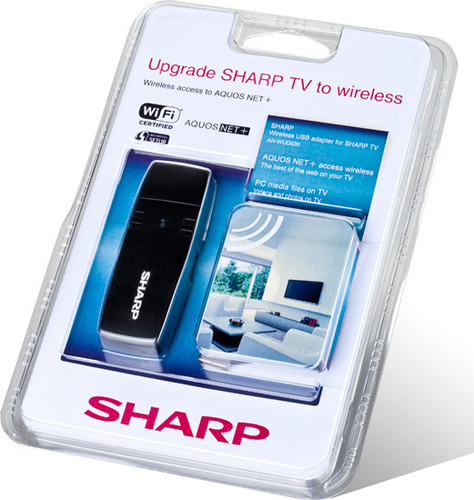

- TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket vsSharp AN-WUD630 WLAN 150 Mbit/sCompare specs

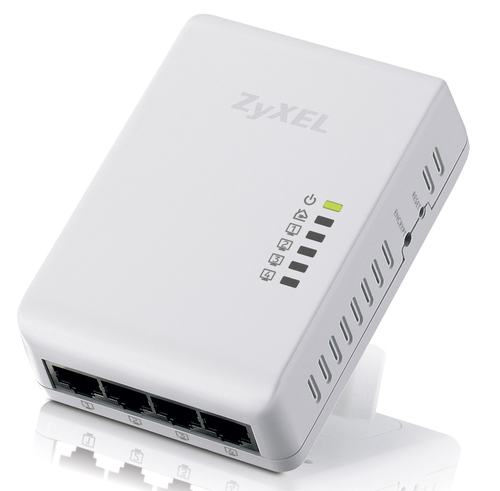

- TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket vsZyxel PLA4225 Ethernet 500 Mbit/sCompare specs

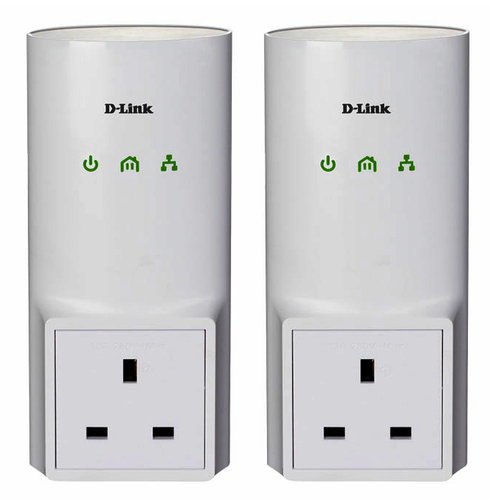

- TP-Link 300Mbps Wireless N PCI Express WiFi Adapter with low profile bracket vsD-Link DHP-P501AV Ethernet 1000 Mbit/sCompare specs
