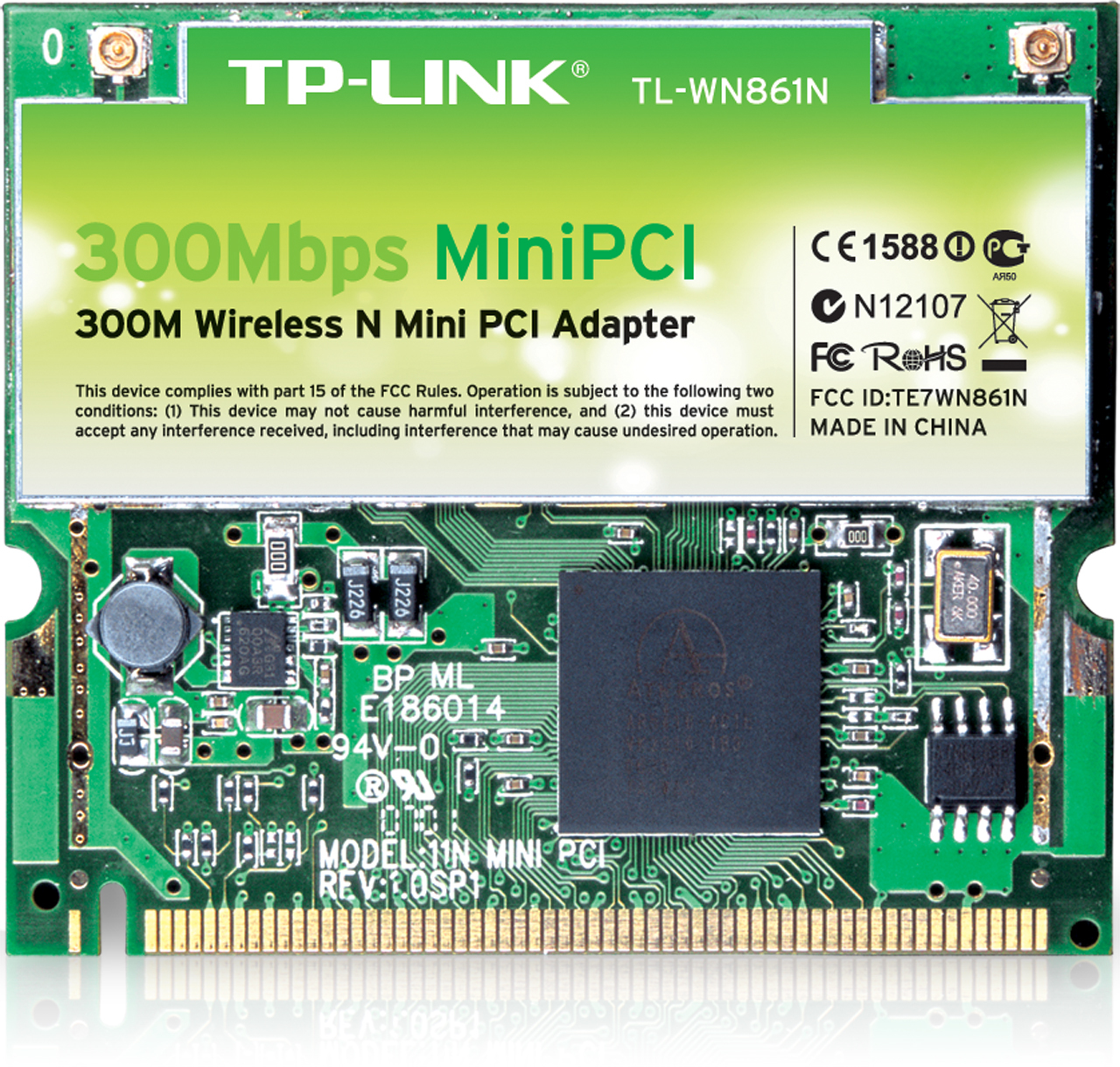

TP-Link TL-WN861N network card Internal WLAN 300 Mbit/s

TP-Link TL-WN861N network card Internal WLAN 300 Mbit/s

Model TL-WN861NEAN 8459730503824

21 specifications
  • Speed300 Mbit/s
  • ConnectivityWireless
  • InternalYes
  • Operating temperature (T-T)0 - 40 °C
  • Width59.7 mm
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Wireless
Internal
Yes
Operating temperature (T-T)
0 - 40 °C
Width
59.7 mm
Brand
TP-Link
Category
Network Card
Model
TL-WN861N
Part number
TL-WN861N
EAN / UPC
8459730503824, 230494832768, 778890699269, 845973050382 +3 more
Also known as
TP-Link TL-WN861N network card Internal WLAN 300 Mbit/s

Specifications

21 specifications in 7 groups

Ports & interfaces

Connectivity technologyWireless
Host interfaceMini PCI
InterfaceWLAN

Network

Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.4 - 2.4835 GHz
Modulation16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM

Design

InternalYes
Receiver sensitivity270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
CertificationFCC

System requirements

Windows operating systems supportedWindows 2000, Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vis

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width59.7 mm
Depth51 mm
Height3.3 mm

Other features

Dimensions (W x D x H) (imperial)1516.4 x 1295.4 x 83.8 mm (59.7 x 51 x 3.3")
