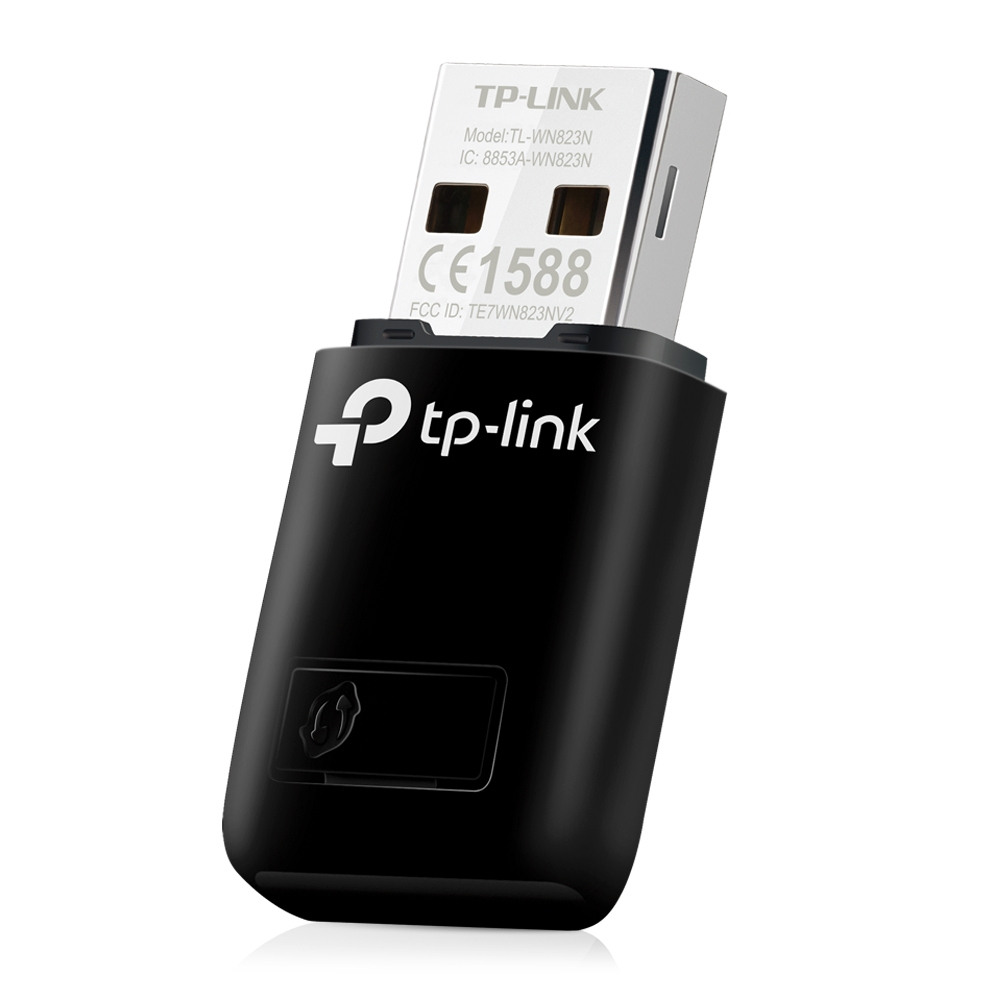

TP-Link 300Mbps Mini Wireless N USB WiFi Adapter

TP-Link 300Mbps Mini Wireless N USB WiFi Adapter

Model TL-WN823NEAN 8459730506962

37 specifications
  • Speed300 Mbit/s
  • ConnectivityWireless
  • ColourBlack
  • InternalNo
  • USB poweredYes
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Wireless
Colour
Black
Internal
No
USB powered
Yes
Operating temperature (T-T)
0 - 40 °C
Brand
TP-Link
Category
Network Card
Model
TL-WN823N
Part numbers
TL-WN823N, TL-WN823N V3
EAN / UPC
8459730506962, 845973050696, 084597305069, 163120482221 +9 more
Also known as
TP-Link 300Mbps Mini Wireless N USB WiFi Adapter

Specifications

37 specifications in 10 groups

Ports & interfaces

Connectivity technologyWireless
Host interfaceUSB
InterfaceWLAN

Network

Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.4 - 2.4835 GHz
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported11,54,300 Mbit/s
Modulation16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Wake-on-LAN readyYes

Design

InternalNo
Component forPC/Laptop
Product colourBlack
LED indicatorsStatus
Receiver sensitivity300M: -65dBm@10% PER 270M: -65dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -72dBm@10% PER 11M: -85dBm@8% PER 6M: -87dBm@10% PER 1M:-93dBm@8% PER
CertificationCE, FCC, IC, RoHS

Power

USB poweredYes

System requirements

Compatible operating systemsWindows XP (32/64-bit) Windows Vista (32/64-bit) Windows 7 (32/64-bit)
Windows operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width39 mm
Depth18.3 mm
Height7.9 mm

Packaging data

Package width138 mm
Package depth128 mm
Package height30 mm
Package weight80 g

Packaging content

ManualYes

Other features

Quick start guideYes
Supported data transfer rates11, 54, 300 Mbps
