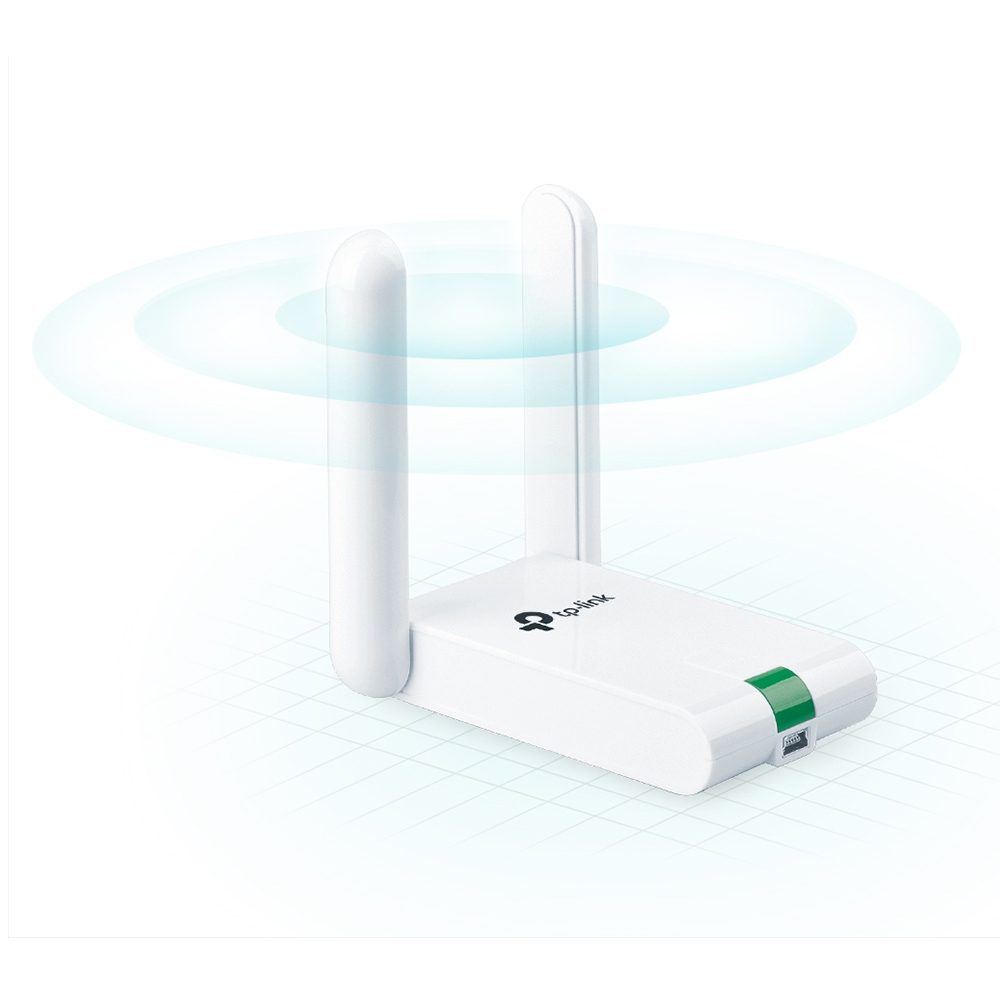

TL-WN822N WLAN 300 Mbit/s
Model TL-WN822NEAN 806293535102
49 specifications
- Speed300 Mbit/s
- ConnectivityWireless
- ColourWhite
- InternalNo
- Compatible operating systemsWindows 2000 / XP / Vista / 7
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 300 Mbit/s
- Connectivity
- Wireless
- Colour
- White
- Internal
- No
- Compatible operating systems
- Windows 2000 / XP / Vista / 7
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- Network Card
- Model
- TL-WN822N
- Part numbers
- TL-WN822N, TL-WN822N V5, TL-WN822N V4
- EAN / UPC
- 806293535102, 745449833986, 777304566319, 845973050542 +19 more
- Also known as
- TP-Link TL-WN822N WLAN 300 Mbit/s
Specifications
49 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | Mini-USB |
| Interface | WLAN |
| USB ports quantity | 1 |
| USB version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
| Frequency range | 2.4 - 2.4835 GHz |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 11,54,300 Mbit/s |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | White |

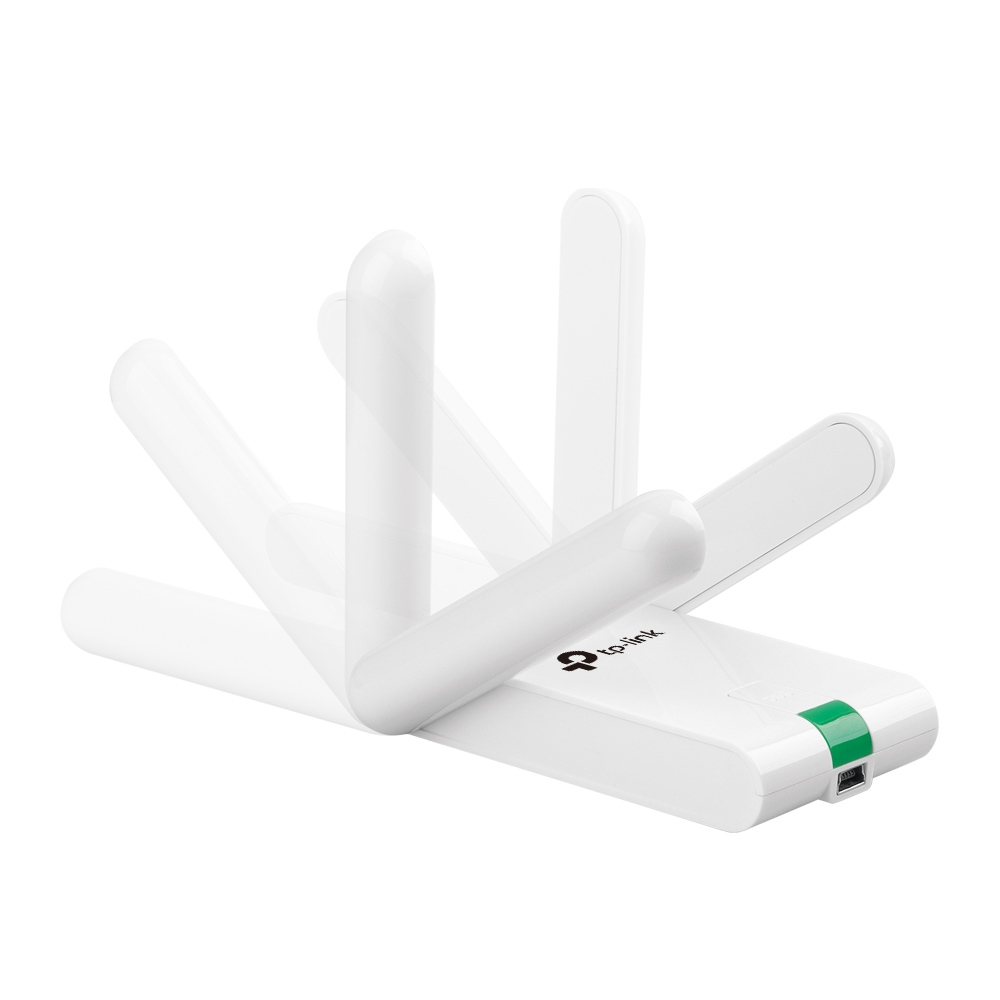

| Antenna | Yes |
| Antenna design | External |
| Antenna type | 2x Omni |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 3 dBi |
| Receiver sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Certification | CE, FCC, RoHS |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000 / XP / Vista / 7 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 68 mm |
| Height | 16.8 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 150 mm |
| Package height | 39 mm |
| Package weight | 210 g |
Packaging content
| Specification | Value |
|---|---|

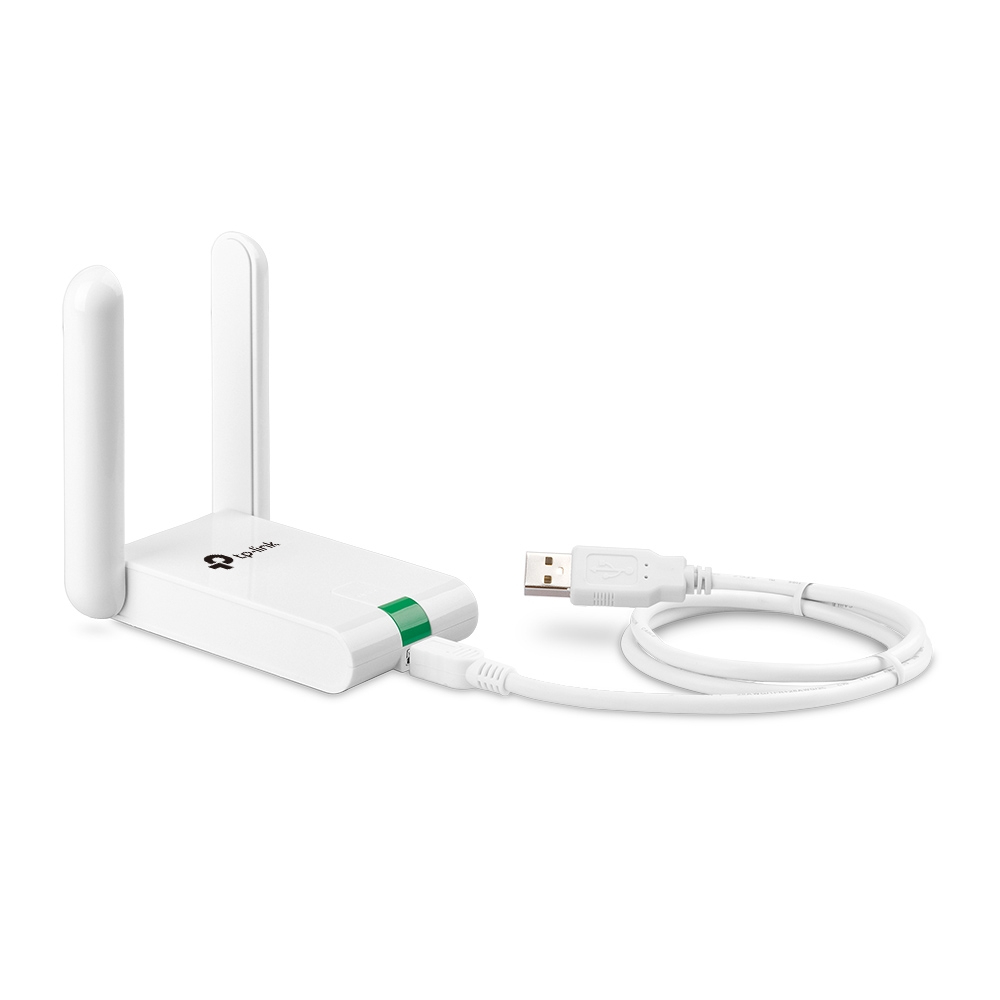

| Cables included | USB |
| Resource CD | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Gain | 3 dBi |
| Compliance industry standards | IEEE 802.11b/g/n |
| Cable length | 1.5 m |
| Dimensions (WxDxH) | 90 x 68 x 16.8 mm |
| Operating temperature (T-T) | 32 - 104 °F |
| Dimensions (W x D x H) (imperial) | 88.9 x 68.6 x 17.8 mm (3.5 x 2.7 x 0.7") |
